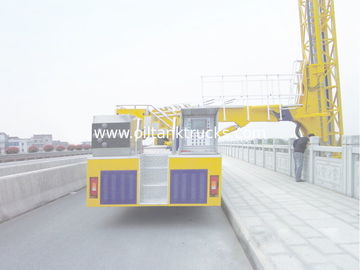

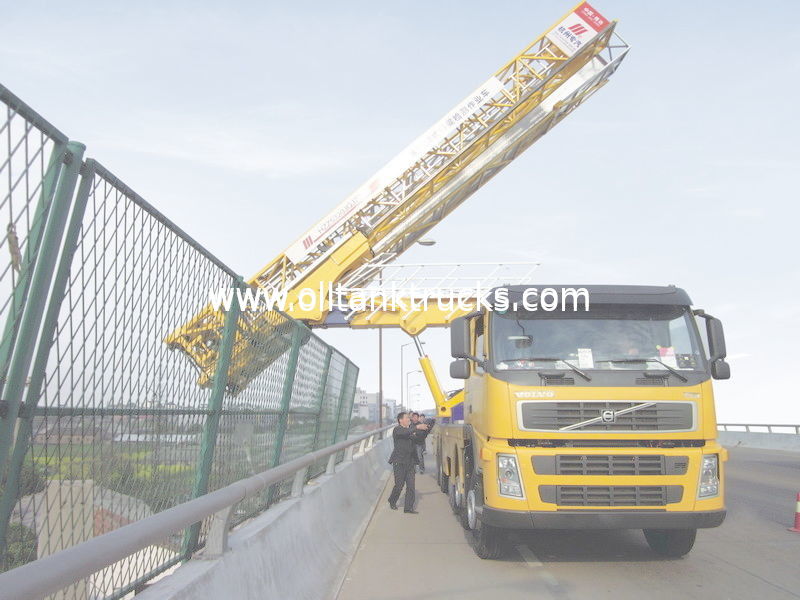

Horizontal Under Bridge Platform Bridge Inspection Vehicle VOLVO 8x4 309KW 420HP

China Horizontal Under Bridge Platform Bridge Inspection Vehicle VOLVO 8x4 309KW 420HP supplier
Horizontal Under Bridge Platform Bridge Inspection Vehicle VOLVO 8x4 309KW 420HP supplier Horizontal Under Bridge Platform Bridge Inspection Vehicle VOLVO 8x4 309KW 420HP supplier Horizontal Under Bridge Platform Bridge Inspection Vehicle VOLVO 8x4 309KW 420HP supplier Horizontal Under Bridge Platform Bridge Inspection Vehicle VOLVO 8x4 309KW 420HP supplier

Large Image :  Horizontal Under Bridge Platform Bridge Inspection Vehicle VOLVO 8x4 309KW 420HP

Product Details:

Place of Origin: Zhejiang, China (Mainland)
Brand Name: China Jinggong
Certification: CCC,iso9001
Model Number: HZZ5320JQJ22

Payment & Shipping Terms:

Minimum Order Quantity: No limited
Price: negotiation
Packaging Details: Naked
Delivery Time: 90 Days
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 2Units/Month
Contact Now
Detailed Product Description
TYPE: HZZ5320JQJ22 Drive Type: 8x4
Maximum Net Power Of Engine: 309KW(420HP) G.V.W.: 38000 Kg
Overall Dimensions: 12420×2500×4000 Mm Maximum Driving Speed: 97.2 Km/h
Maximum Operation Speed: 10 Km/h Horizontal Operation Range Under Bridge: 12500mm-22000mm



Platform Type Bridge Inspection Truck chassis VOLVO 8x4 309KW (420HP)



22m horizontal Platform Type Bridge Inspection Truck chassis VOLVO 8x4 309KW(420HP)



Quick Details:



Model: HZZ5320JQJ22
Product name: Platform Type Bridge Inspection Vehicle
Chassis Model: VOLVO FM400 84R B
Driver type: 8×4

Maximum Net Power of Engine: 309KW (420HP)

Overall dimensions: 12420×2500×4000 mm

Max. Horizontal Range: 12500mm-22000mm



Main Description



Platform Type Bridge Inspection Vehicle used imported VOLVO, Mercedes-Benz or domestic FAW chassis, drive mode is 8 × 4, the maximum speed is 102km / h, maximum operating inspection speed is 10m/min, and good view cab with air conditioning system and FM / AM radio, it is very suitable for large bridges, overpasses, approachbridges and other various types of bridge preventive inspection.

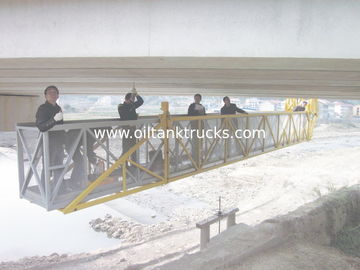

Platform Type Bridge Inspection Vehicle( hereinafter referred to as Bridge Inspection Vehicle ) using two sets of rubber balance wheel which operated by hydraulic system for auxiliary support in working state. The balance wheel to maintain gravitational balance in working and balance wheel does not exceed the vehicle. In order to ensure the stability and reliability of bridge inspection vehicle in working, we used three sets of control method: remote, panel , emergency. Remote is recommended for control, wireless remote control, the proportion of output, so that the operator can quickly smooth operation of each action of bridge inspection vehicle; Panel method using two operating systems, one is located in the control box which on the right rear of the vehicle, another is located on the second rotary working platform, that ensure operator that each action operations are within sight of their own and to ensure the safety; Emergency method is through directly to operate electro-hydraulic proportional valve handle to control the bridge inspection vehicle’s movement and speed.



The bridge inspection vehicle is equipped with a video image monitoring system, electro-hydraulic synchronous interlock control system, internal real-time system, work status switch automatic adjustment system, safety relief valve and balancing valve , etc. These features ensure the safety when the bridge inspection vehicle traveling or working. The bridge inspection vehicle also equipped standby power system which consists of generator and emergency motor ump, when the chassis engine has failure , you can use this system to provide power for bridge inspection vehicle , to ensure their normal work or let the platform back to recover state.



Specifications:



Model HZZ5320JQJ22
Drive Type 8×4
Chassis Model VOLVO FM400 84R B
Maximum Net Power of Engine 309KW(420HP)
G.V.W. 32000 kg
Overall dimensions 12420×2500×4000 mm
Maximum Driving Speed 97.2 km/h
Maximum working Speed 10 km/h
Max. Horizontal Range 12500mm-22000mm
Maximum overbridging of Sidewalk 3500mm
Maximum Crossing Of Sound Barrier 3500mm
Maximum Load on Platform 800kg.
Maximum Load on telescopic platform 400kg.
The First Rotation of Platform 0~90°
The Second Rotation of Platform 0~180°
Space Required on Bridge 2800mm
Maximum Lowering Depth 8100mm
Width of Platform 1080mm
Classification of Wind Resistance ≤12.5m/s
Fix Stabilizer for Rear Axle Cylinder
Control Mode Remote/Panel/Emergency
Wireless Remote Control Germany NBB
Emergency Generator America KOHLER
Hydraulic System Electro-hydraulic Proportional Servo System(HAWE, Germany)
Retarter Motor Machinery Hydrostatic Transmission(France POCLAIN)


Competitive Advantage:



Leading Technology;

Optimization Chassis: Used imported VOLVO, Mercedes-Benz or domestic FAW chassis ;

Reliable Performance;

Carrying Capacity is strong ;

High Working Efficiently ;

Powerful Communication Function;

With Complete Accessory;

High Adaptability To Circumstance

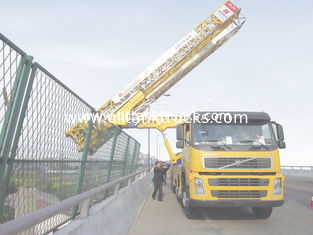

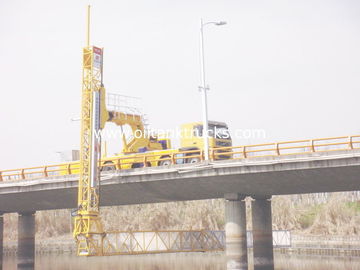

Platform Type Bridge Inspection Truck chassis VOLVO 8x4 309KW(420HP)

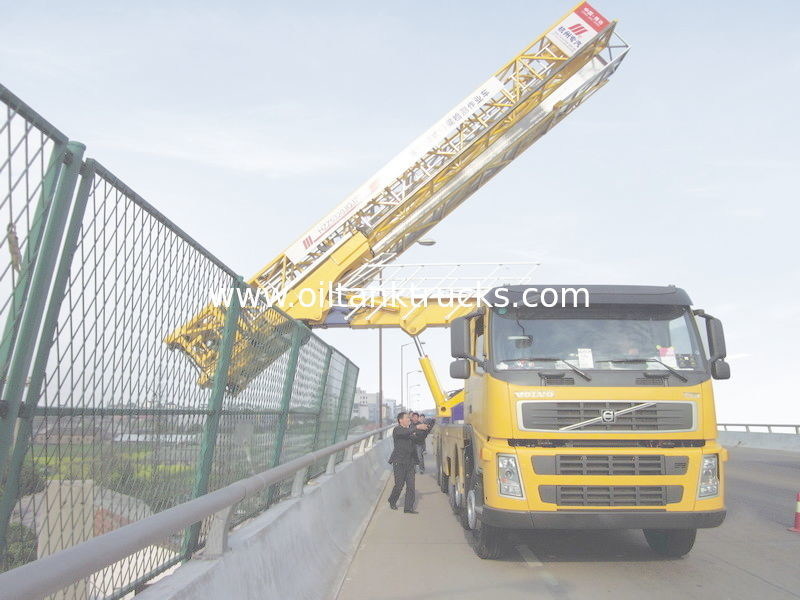

Platform Type Bridge Inspection Truck chassis VOLVO 8x4 309KW(420HP)
