Volvo Euro VI 450HP Under Bridge Inspection Truck , Bridge Inspection Equipment

China HANGZHOU SPECIAL AUTOMOBILE CO.,LTD certification
China HANGZHOU SPECIAL AUTOMOBILE CO.,LTD certification
Good quality and reasonable price. Wish your company business better and better.

—— Micheal

Nice service will get nice achievement, come on guys!

—— John

I'm Online Chat Now

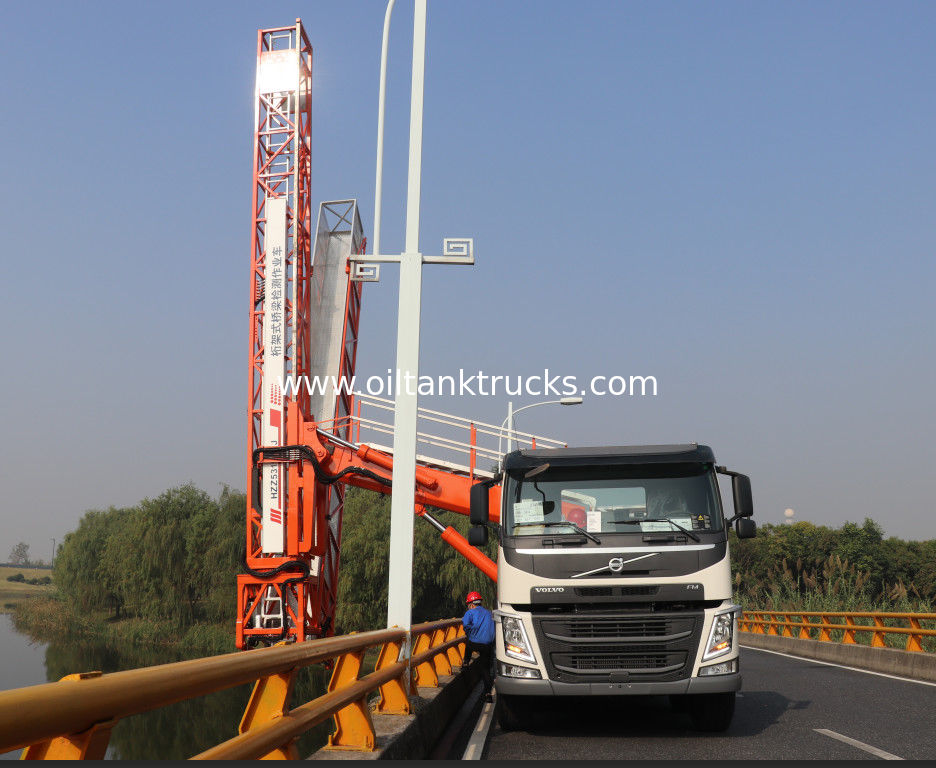

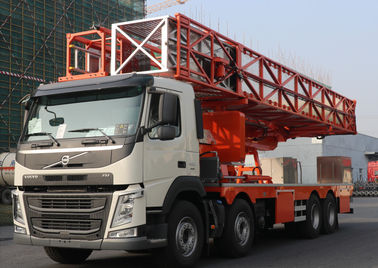

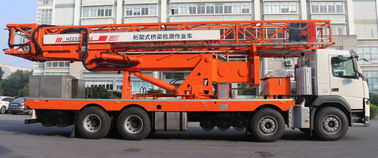

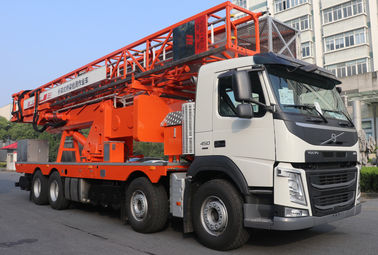

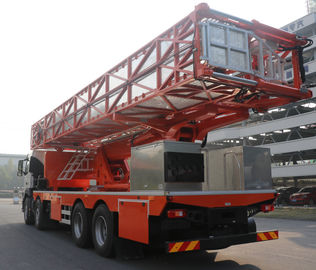

Volvo Euro VI 450HP Under Bridge Inspection Truck , Bridge Inspection Equipment

Volvo Euro VI 450HP Under Bridge Inspection Truck , Bridge Inspection Equipment
Volvo Euro VI 450HP Under Bridge Inspection Truck , Bridge Inspection Equipment
video play

Large Image :  Volvo Euro VI 450HP Under Bridge Inspection Truck , Bridge Inspection Equipment

Product Details:
Place of Origin: Zhejiang, China (Mainland)
Brand Name: China Jinggong
Certification: CCC
Model Number: HZZ5319JQJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: negotiation
Packaging Details: nude
Delivery Time: 6month
Supply Ability: 100 unit per year
Detailed Product Description
TYPE: HZZ5319JQJ Overbridge Sidewalk: 3.5m
Crossing Sound Barrier: 4.5m Under Bridge Depth: 8.5m
Occupy Lane Width: 2.6m
High Light:

under bridge access platforms

,

snooper truck

,

450HP Bridge Inspection Equipment



19m Platform Type 8x4 (Euro VI) VOLVO chassis bridge inspection vehicle



19m Bridge inspection vehicle platform bridge maintenance truck full range of movement



Quick Details:

1. Operating length: 19m

2. Chassis: Volvo

3. Drive Type: 8x4

4. Vehicle Type: Platform Type

5. Enigne Power: 450HP

6. Emission Stand: Euro VI



Bridge Inspection Truck: The operating truck for bridge detection, as its name suggests, is designed to help detect the performance and reliability of a bridge. Reasonable structure, simple operation, more safety design. The new platform design has imporve much reliability and stability. Much safety for sending the operator into any location of the bridges. The new developed product with it’s own exported chassis and some OEM components, such as US POCLAIN amble motor, US KOHLAR emergency power supply, Germany “HAWE” Mutiple Valve, Italy “WOLFF” valve etc. greatly increase the service life, easy maintenance. Three hydraulic section with broader extension, rotary platform, luffing machanism together created a three-dimensional folding, much more suit for those flyovers, long-span, approach heavy duty bridges.



It is also able to run in extremely worse environments, even on the elevation 2000m, 98% high humidity weather, and 6 Class land wind. The design of the platform with much broader detection range between 12m to 22m and 1.1m width appers more secure working conditions.





Specifications:

TYPE HZZ5319JQJ22
NAME Platform Type Bridge Inspection Vehicle
CHASSIS TYPE VOLVO FM400 8X4
TOTAL MASS 32000KG
OUTER DIMENSION 12545X4000X2500
MAX SPEED 96.1KM/H
SELF-WALK PART Electro-hydraulic proportional servo system
OPERATING RANGE UNDER BRIDGE(TOTAL) Machanical hydrostatic transmission
MAX. HORIZONTAL RANGE(EFFECTIVE) 19000mm
MAX. OVERBRIDGING OF SIDEWALK 3500mm
MAX. CROSSING OF SOUND BARRIER 4500mm
MAX. LOAD ON PLATFORM 800KG
MAX. LOAD ON TELESCOPIC PLATFORM 400KG
MAX. LOWERING DEPTH 850mm
FIRST ROTATION OF PLATFORM 0~90°
SECOND ROTATION OF PLATFORM 0~180°
BALANCER 3.5T,5T Movable balancer, fixed balancer
OPERATING RANGE FOR MOVBLE BALANCER 950MM
ADDITIONAL STABIZER FOR THE REAR AXLE Oil cylinder
CONTROL SYSTEM Wired/wireless/manual
STANDBY GENERATOR US kohler





Competitive Advantage:



  1. Imported VOLVO Chassis, with 450HP large engine power, Euro VI. Has more merits as: low oil consumption, environmental design, ensure high stability.
  2. Air suspension system can adjust the chasis height automaticly, highly increase the stability for such a pot hole ground.
  3. Hydrostatic drive, highly achieved secure in slope and wet road conditions.
  4. Those hydraulic steering wheel system, greatly balance the widthness while operating.
  5. Two sets of control system on platform either into the control box respectively, allows the operator monitor safety.
  6. The hydraulic synchronous interlock device, intercom system, safty lock valve to ensure the safty handing.
  7. US Kohler emergency power supply, able to achieve the folding reset, in case the engine doesn' attent well.
  8. Max. platform payload is 600kg (can affordable 6-7 operators), the tail of the platform payload is about 250kg. The extendable folding platform can be adjustable luffing from 2-4meter, greatly imporve the inspection area under the bridge.
  9. High strength steel platform frame provide more stability which able to rotate 180°under the bridge, and also keep the limitation of max. drop height for 7meter only.Bridge inspection vehicle platform bridge maintenance truck full range of movement
