22 M Under Bridge Insepction Access Equipment working Platform with Good Perfermance

China 22 M Under Bridge Insepction  Access Equipment  working Platform with Good Perfermance supplier
22 M Under Bridge Insepction  Access Equipment  working Platform with Good Perfermance supplier 22 M Under Bridge Insepction  Access Equipment  working Platform with Good Perfermance supplier 22 M Under Bridge Insepction  Access Equipment  working Platform with Good Perfermance supplier 22 M Under Bridge Insepction  Access Equipment  working Platform with Good Perfermance supplier 22 M Under Bridge Insepction  Access Equipment  working Platform with Good Perfermance supplier

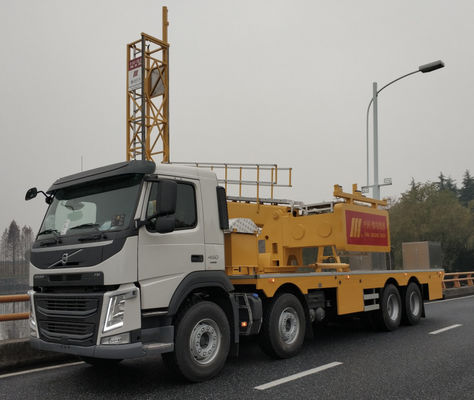

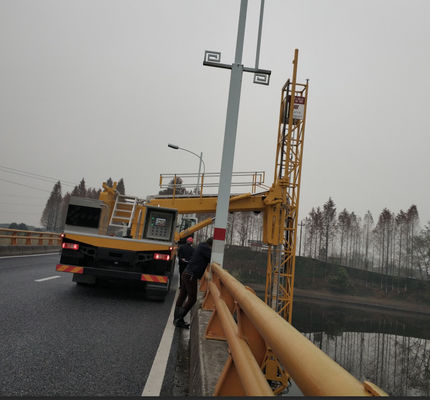

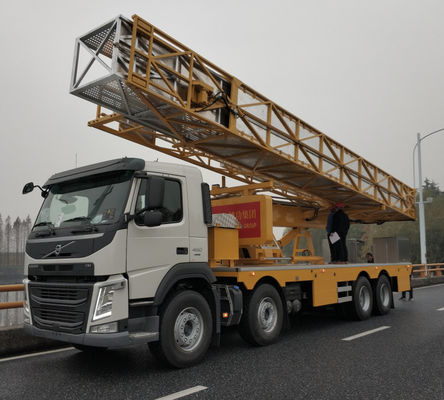

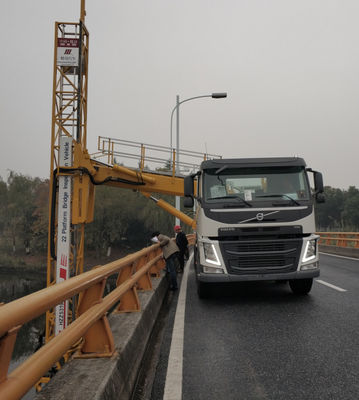

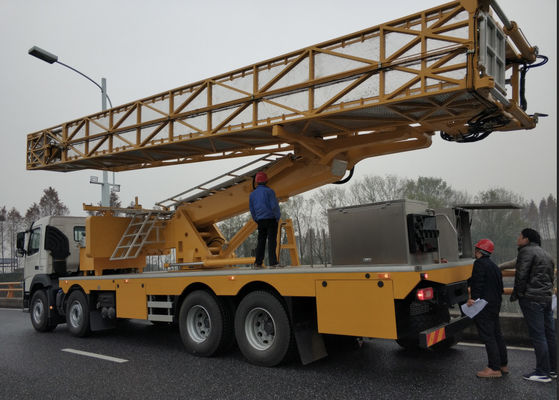

Large Image :  22 M Under Bridge Insepction Access Equipment working Platform with Good Perfermance

Product Details:

Place of Origin: Zhejiang, China (Mainland)
Brand Name: China Jinggong
Certification: CCC
Model Number: HZZ5319JQJ

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: negotiation
Packaging Details: nude
Delivery Time: 6month
Supply Ability: 100 unit per year
Contact Now
Detailed Product Description
TYPE: HZZ5319JQJ Overbridge Sidewalk: 3.5m
Crossing Sound Barrier: 4.5m Under Bridge Depth: 8.5m
Occupy Lane Width: 2.6m



22m Platform Type 8x4 (Euro VI) VOLVO chassis under bridge inspection Equipment



22m Bridge inspection vehicle platform bridge maintenance truck full range of movement



Quick Details:

1. Operating length: 22m

2. Chassis: Volvo

3. Drive Type: 8x4

4. Vehicle Type: Platform Type

5. Enigne Power: 450HP

6. Emission Stand: Euro VI



With increasing numbers of bridges in the world, safety of bridges becomes a top priority. This needs periodic inspection on all parts of the bridge, which are not easily accessible. These inspections are primarily visual and require hands-on observations in order to check for loose and broken hardware, corrosion, insect damage, and a multitude of other maintenance and safety issues. Our platform bridge inspection vehicles are Versatile, efficient and lightweight, they can help you with all your bridge inspection and maintenance needs.



It is also able to run in extremely worse environments, even on the elevation 2000m, 98% high humidity weather, and 6 Class land wind. The design of the platform with much broader detection range between 12m to 22m and 1.1m width appers more secure working conditions.





Specifications:

TYPE HZZ5319JQJ
NAME Platform Type Bridge Inspection Vehicle
CHASSIS TYPE VOLVO FM450 8X4
TOTAL MASS 32000KG
OUTER DIMENSION 12545X4000X2500
MAX SPEED 96.1KM/H
SELF-WALK PART Electro-hydraulic proportional servo system
OPERATING RANGE UNDER BRIDGE(TOTAL) Machanical hydrostatic transmission
MAX. HORIZONTAL RANGE(EFFECTIVE) 22000mm
MAX. OVERBRIDGING OF SIDEWALK 3500mm
MAX. CROSSING OF SOUND BARRIER 4500mm
MAX. LOAD ON PLATFORM 800KG
MAX. LOAD ON TELESCOPIC PLATFORM 400KG
MAX. LOWERING DEPTH 850mm
FIRST ROTATION OF PLATFORM 0~90°
SECOND ROTATION OF PLATFORM 0~180°
BALANCER 3.5T,5T Movable balancer, fixed balancer
OPERATING RANGE FOR MOVBLE BALANCER 950MM
ADDITIONAL STABIZER FOR THE REAR AXLE Oil cylinder
CONTROL SYSTEM Wired/wireless/manual
STANDBY GENERATOR US kohler





Competitive Advantage:



  1. Imported VOLVO Chassis, with 450HP large engine power, Euro VI. Has more merits as: low oil consumption, environmental design, ensure high stability.
  2. Air suspension system can adjust the chasis height automaticly, highly increase the stability for such a pot hole ground.
  3. Hydrostatic drive, highly achieved secure in slope and wet road conditions.
  4. Those hydraulic steering wheel system, greatly balance the widthness while operating.
  5. Two sets of control system on platform either into the control box respectively, allows the operator monitor safety.
  6. The hydraulic synchronous interlock device, intercom system, safty lock valve to ensure the safty handing.
  7. US Kohler emergency power supply, able to achieve the folding reset, in case the engine doesn' attent well.
  8. Max. platform payload is 600kg (can affordable 6-7 operators), the tail of the platform payload is about 250kg. The extendable folding platform can be adjustable luffing from 2-4meter, greatly imporve the inspection area under the bridge.
  9. High strength steel platform frame provide more stability which able to rotate 180°under the bridge, and also keep the limitation of max. drop height for 7meter only.Bridge inspection vehicle platform bridge maintenance truck full range of movement
