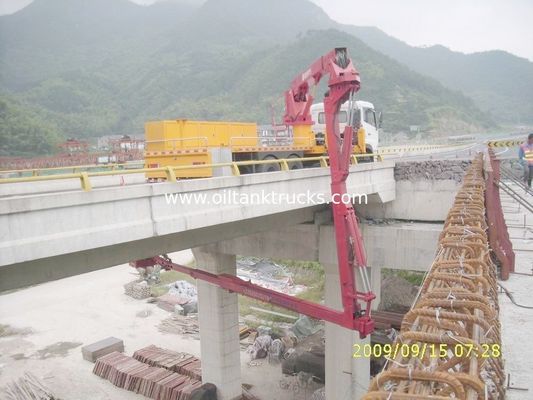

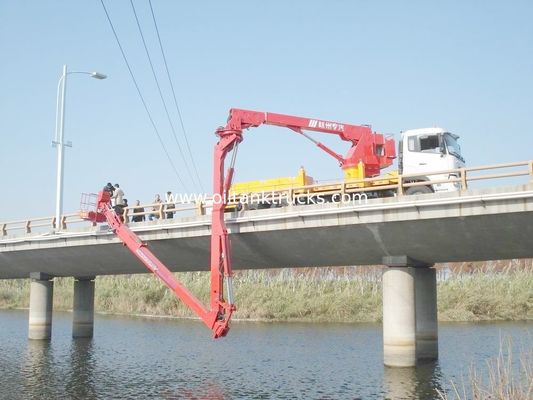

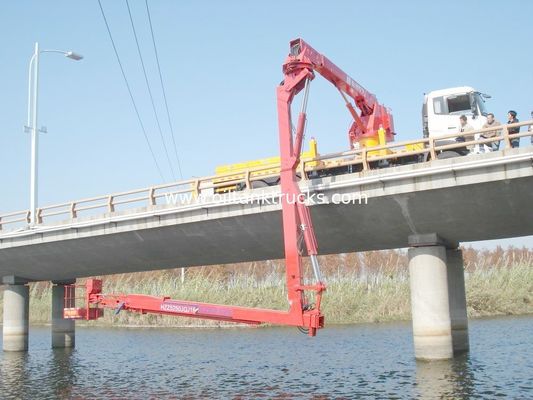

Dongfeng 6x4 Bucket Type Bridge Inspection Truck Under Bridge Depth 23.3m

Dongfeng 6x4 Bucket Type Bridge Inspection Truck Under Bridge Depth 23.3m
Dongfeng 6x4 Bucket Type Bridge Inspection Truck Under Bridge Depth 23.3m Dongfeng 6x4 Bucket Type Bridge Inspection Truck Under Bridge Depth 23.3m Dongfeng 6x4 Bucket Type Bridge Inspection Truck Under Bridge Depth 23.3m Dongfeng 6x4 Bucket Type Bridge Inspection Truck Under Bridge Depth 23.3m

Large Image :  Dongfeng 6x4 Bucket Type Bridge Inspection Truck Under Bridge Depth 23.3m

Product Details:
Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ5240JQJ16
Payment & Shipping Terms:
Minimum Order Quantity: No limited
Price: negotiation
Packaging Details: Wax Spray
Delivery Time: 45days
Payment Terms: LC,TT, Paypal,Western Union
Supply Ability: 2Units/Month
Port of Delivery:: Shanghai / Ningbo
Detailed Product Description
High Light:

Depth 23.3m Bridge Inspection Truck

,

truck mounted access platform

,

Bridge Inspection Truck Bucket Type

Dongfeng 6x4 Bucket Type Bridge Inspection Equipment under bridge depth 23.3m



16m Dongfeng 6x4 Bucket type Bridge Inspection Vehicle (HZZ5240JQJ16)



Quick Detail:



1. Total Height: 16m

2. Chassis: Dongfeng

3. Engine Power: 230HP

4. Engine: Dongfeng Cummins

5. Drive Type: 6x4

6. Vehicle Type: Bucket Type

7. Wireless Remote control, Wired Remote Control, Cab Computer Monitor

8. Emission Standard: Euro III

9. Name: Bridge Inspection Vehicle





Descrition



Bucket type is equipped with DongFeng chassis, a famous national brand. Some OEM hydraulic parts and quality components help ensure the reliable performance and long service life.


The telescopic mechanism, swing mechanism and luffing mechanism of the operating truck create a three-dimensional space. This provides the vehicle with incredible freedom of movement and also enables it to quickly and safely send staff or test equipment to any location under the bridge.





Specifications:



Model HZZ5240JQJ 16
Product name Bucket type bridge inspection unit
Chassis Model Dongfeng
Driver type 6×4
G.V.W. 24000(Kg)



Outer dimensions

11240×2500×3930mm
Engine model

DONGFENG CUMMINS

ISDe230 30, ISDe245 30, ISDe270 30

Engine power 230,245,270(HP)
Max. horizontal range 0-16.41M
Max. lowering depth 0-23.3M
Max. overbridging of sidewalk 3-5.4M
The first scope of rotation 0-90°
The second scope of rotation 0-135°
Max. load on platform 300KG
Hydraulic system The proportion of electro-hydraulic servo systems
Control system
Manual control mode Cable control mode Wireless control mode





6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform





Vertical working range under bridge Horizontal working range under bridge



6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform



6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform





Competitive Advantage:



Patented outrriger: Main arm across range approx 2.5m in a nominal design which greatly increase lateral stability, prevent side-tip, makes sure operators is working at a secure condition. But in Chinese road condition,the total length of sidewalk with bicyclepath is about 4m. This patented design can better afford the 4m widthness reach, hydruclic control with improved flexible movement, get stuck rarely. The outrriger's crawler drives the stabilizer with less pressing to reduce ground damage while operating under the bridge selfly.
