|Product Name:||Bridge Inspection Vehicle||Drive Type:||8x4|
|Control System:||Wired , Cab Computer Monitor||Emission Standard:||Euro III|
under bridge inspection truck,
mobile bridge inspection unit,
4 Axles Under Bridge Inspection Vehicle

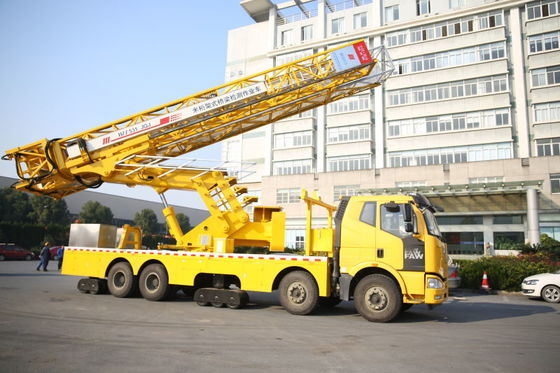

4 axles platform length 22m under Bridge Inspection Vehicle Euro III/IV FAW Chassis
8x4 Bridge Inspection Vehicle Euro III/IV 22M With Arm And Dong Feng Chassis
1. Total Length of platform: 22m
2. Chassis: FAW
3. Engine Power: 320HP
4. Engine: CA1310P63K2L6T4E1(FAW)
5. Drive Type: 8x4
6. Vehicle Type: Platform Type
7. Wireless Remote control, Wired Remote Control, Cab Computer Monitor
8. Emission Standard: Euro III/ IV
9. Name: Bridge Inspection Vehicle
Bridge Inspection Truck: The operating truck (HZZ5310JQJ) for bridge detection, as its name suggests, is
designed to help detect the performance and reliability of a bridge. Reasonable structure, simple operation,
more safety design. The new platform design has improved much reliability and stability. Much more safety for
sending the operator into any location of the bridges. The new developed product with a classed FAW chassis
and some OEM components, such as US POCLAIN amble motor, US KOHLAR emergency power supply,
Germany “HAWE” Multiple Valve, Italy “WOLFF” valve etc. greatly increase the service life, easy maintenance.
Three hydraulic section with broader extension, rotary platform, luffing mechanism together created a three-dimensional folding, mostly suitable for types of flyovers, long-span, approach heavy duty bridges.
It is also able to run in extremely worse environments, even on the elevation 2000m, 98% high humidity weather,
and 6 Class land wind. The design of the platform with much broader detection range between 12m to 22m and
1.1m width appears more secure working conditions.
1. Classed FAW Chassis, with 320HP large engine power, Euro III/IV. Has more merits as: low oil consumption,
environmental design, ensure high stability.
2. Hydrostatic drive, highly achieved secure in slope and wet road conditions.
3. Those hydraulic steering wheel system, greatly balance the wideness while operating.
4. Two sets of control system on platform either into the control box respectively, allows the operator monitor
5. The hydraulic synchronous interlock device, intercom system, safety lock valve to ensure the safety handing.
6. US Kohler emergency power supply, able to achieve the folding reset, in case the engine does not attent well.
7. Max. platform payload is 700kg (can affordable 6-7 operators), the tail of the platform payload is about 100kg.
The extendable folding platform can be adjustable luffing from 2-4meter, greatly improve the inspection area
under the bridge.
8. High strength steel platform frame provide more stability which able to rotate 180°under the bridge, and also
keep the limitation of max. drop height for 7meter only.
