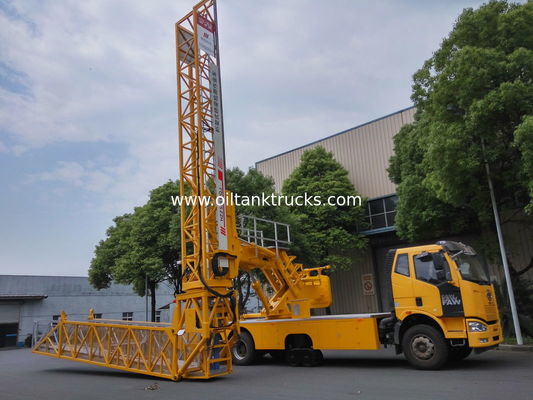

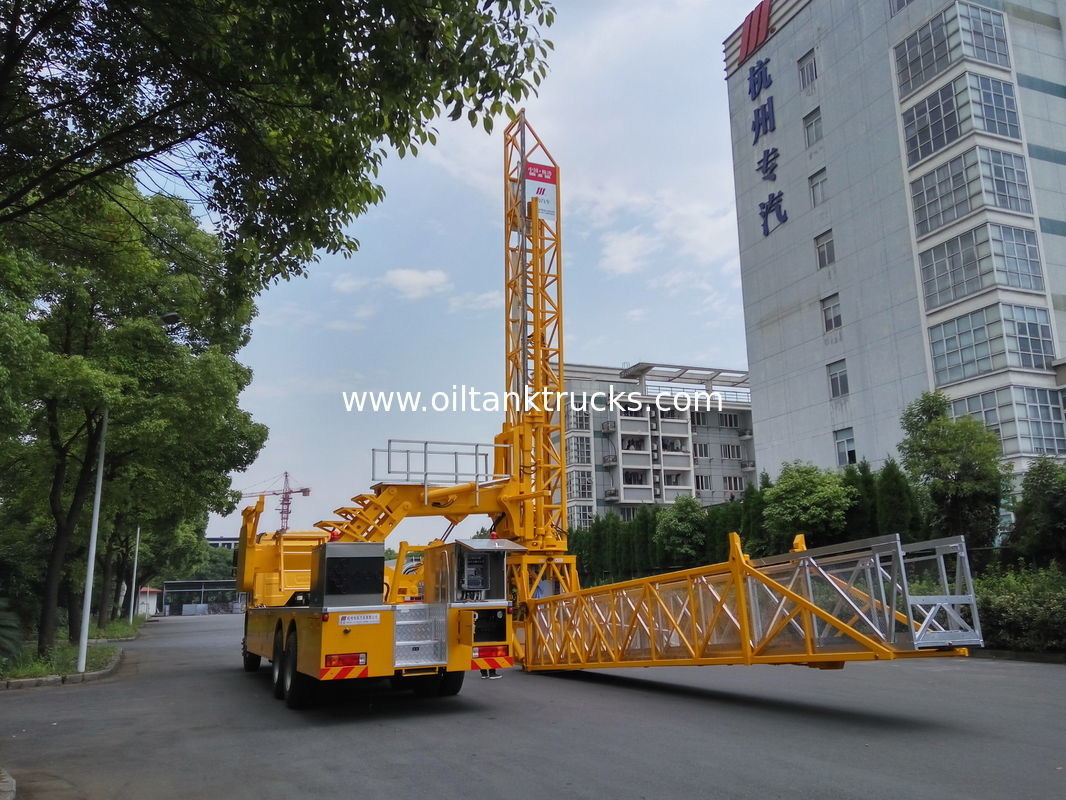

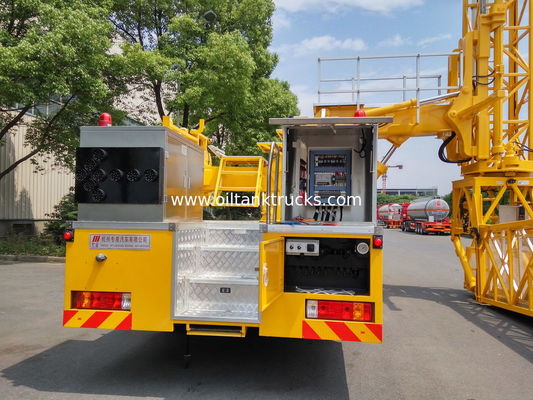

209HP 15m Aluminum Truck Mounted Underbridge Inspection Unit 800kg Load FAW CA6DK1-28E5

209HP 15m Aluminum Truck Mounted Underbridge Inspection Unit 800kg Load FAW CA6DK1-28E5
209HP 15m Aluminum Truck Mounted Underbridge Inspection Unit 800kg Load FAW CA6DK1-28E5 209HP 15m Aluminum Truck Mounted Underbridge Inspection Unit 800kg Load FAW CA6DK1-28E5 209HP 15m Aluminum Truck Mounted Underbridge Inspection Unit 800kg Load FAW CA6DK1-28E5 209HP 15m Aluminum Truck Mounted Underbridge Inspection Unit 800kg Load FAW CA6DK1-28E5

Large Image :  209HP 15m Aluminum Truck Mounted Underbridge Inspection Unit 800kg Load FAW CA6DK1-28E5

Product Details:
Place of Origin: Zhejiang, China (Mainland)
Brand Name: China Jinggong
Certification: CCC
Model Number: HZZ5251QJ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: nude
Delivery Time: 60 Days
Supply Ability: 100 unit per year
Detailed Product Description
TYPE: HZZ5251QJ Material: Aluminum Platform
Color: Yellow Overbridge Sidewalk: 2.5m
Crossing Sound Barrier: 3.1m Under Bridge Depth: 6.8m
High Light:

snooper truck

,

under bridge access equipment

,

800kg Load Under Bridge Platform



15m aluminum platform 800kg load bridge inspection under bridge access equipment

1. Total Height: 15m
2. Chassis: FAW
3. Engine Power: 209HP
4. Drive Type: 6x4
5. Vehicle Type: Platform Type
6. Name: Bridge Inspection Vehicle

Bucket type is equipped with FAW chassis, a famous national brand. Some OEM hydraulic parts and quality components help ensure the reliable performance and long service life.

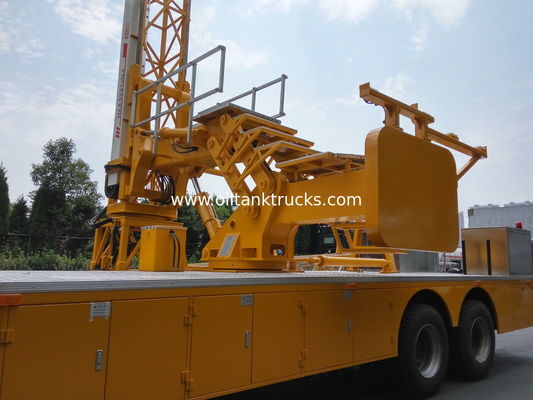

The telescopic mechanism, swing mechanism and luffing mechanism of the operating truck create a three-dimensional space. This provides the vehicle with incredible freedom of movement and also enables it to quickly and safely send staff or test equipment to any location under the bridge.

Specifications:

Model HZZ5251JQJ
Product name Platform type bridge inspection vehicle
Chassis Model
Driver type 6×4
Total mass 25000(Kg)

Outer dimensions
11355×2550×3990mm
Engine model FAW CA6DK1-28E5
Engine power 209HP
Max. horizontal range 0-15
Max. lowering depth 0-6.8M
Max. overbridging of sidewalk 2.5M
The first scope of rotation 0-90°
The second scope of rotation 0-180°
Max. load on platform 600KG
Hydraulic system The proportion of electro-hydraulic servo systems
Control system
Manual control mode Cable control mode Wireless control mode

15m aluminum platform 800kg load bridge inspection access equipment
