Product Details:
Payment & Shipping Terms:
|
| Horizontal Working Range: | 24m | Capacity: | 400kg/800kg |
|---|---|---|---|
| Self Propelled: | With Transfer Case | Road Occupation: | Single Lane Operation |
| Sidewalk Width: | 3.5m | Sound Barrier: | 4.5m |
| Under Bridge Depth: | 8.5m | Chassis: | Chinese Brand |
With increasing numbers of bridges in the world, safety of bridges becomes a top priority. This needs periodic inspection on all parts of the bridge, which are not easily accessible. These inspections are primarily visual and require hands-on observations in order to check for loose and broken hardware, corrosion, insect damage, and a multitude of other maintenance and safety issues. We offer an two models of Bridge Inspection truck. One is basket model and the other is platform model. Our bridge inspection trucks are Versatile, efficient and lightweight, they can help you with all your bridge inspection and maintenance needs.
We offer an two models of Bridge Inspection truck. One is basket model and the other is platform model. Our bridge inspection trucks are Versatile, efficient and lightweight, they can help you with all your bridge inspection and maintenance needs.

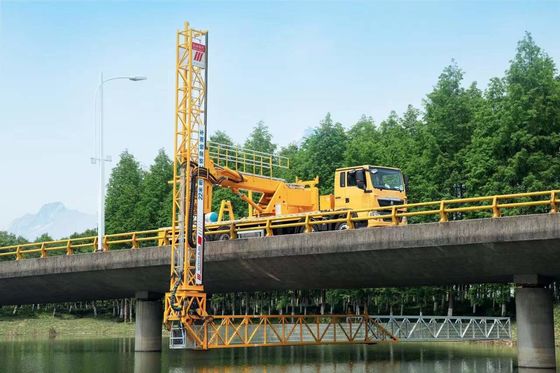

The Bridge Inspection Vehicle can ensure that the staff or related equipment can be quickly and safely transported to each part of the bridge, including and places on the bridge, under bridge and bridge mast. Bucket angle adjusting.
| Structure type of bridge inspection vehicle | Platform type |
| Max. Horizontal working range | 24M (72’) |
| Max. vertical working depth | 8000mm (26’) |
| Width of work platform | 1080mm |
| Max. load on Truss platform | 800KG (1763lb) |
| Max. load on telescopic Truss platform | 400KG(881lb) |
| Max. Width of sidewalk spanning | 3000mm (9.8’) |
| Max. height of guardrail spanning | 4400mm (14.5’) |
| The 1st rotation angle scope | 0~90° |
| The 2nd rotation angle scope | 0~1800 |
| Max. amble travelling speed | 15m/min |
| Operation Mode | Wireless Remoter , Panel, Emergency manual |
| Drive system | Two drive system: PTO and gasoline generator |
| Amble self travelling device | Transfer case instead of amble motor |
| Chassis brand | Howo |
| G.V.W | 31000KG |
| Overall dimensions | 12560(L)×2500(W)×4000 (H)mm |
2. Packing & Delivery:
Our service team can arrange shipment for you, to keep sure you can get our products on schedule. We will make sure all the vehicle safe in delivery.
3. Market
Our Bridge Inspection Vehicles have been exported to South Korea, Brunei, Malaysia, Vitenam, Maldives, Indonisia and etc.
4. MBIU working video on youtube:
Platform type MBIU: https://www.youtube.com/watch?v=IyyTuEgFubo&feature=youtu.be
Bucket type: https://www.youtube.com/watch?v=dXxARhbfV8I&feature=youtu.be
