Professional Bridge Inspection Platform High Efficient Underbridge Inspection Unit

China Professional Bridge Inspection Platform High Efficient Underbridge Inspection Unit supplier
Professional Bridge Inspection Platform High Efficient Underbridge Inspection Unit supplier Professional Bridge Inspection Platform High Efficient Underbridge Inspection Unit supplier Professional Bridge Inspection Platform High Efficient Underbridge Inspection Unit supplier Professional Bridge Inspection Platform High Efficient Underbridge Inspection Unit supplier Professional Bridge Inspection Platform High Efficient Underbridge Inspection Unit supplier

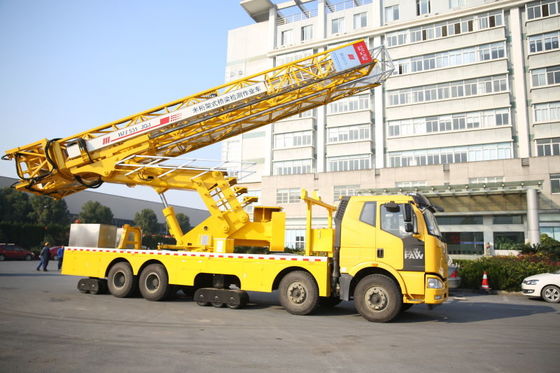

Large Image :  Professional Bridge Inspection Platform High Efficient Underbridge Inspection Unit

Product Details:

Place of Origin: China
Brand Name: Hongzhou
Certification: ISO9001, CCC
Model Number: HSA5318JQJ22.2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy package
Delivery Time: 60-90 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 97 sets per year
Contact Now
Detailed Product Description
Horizontal Working Range Under Bridge: 22m Cap.: 400kg/800kg
Deploy Time: Self Erecting In 5 Minutes Self Propelled: With Transfer Box
Road Occupation: Single Lane Operation



China newest aerial platforms/ bride aegrial platform from HSA

The bridge inspection vehicle is a kind of vehicle that provides a working platform during the detection process and can be equipped with bridge detection equipment for mobile inspection or maintenance for bridge inspection person.

It ensures that the staff can be quickly and safely transported to every inspection part of the bridge, including any positions on the bridge, under bridge, bridge pier, etc.

Idea for all under-bridge project: inspections, repairs, stripping operations, painting and sandblasting, general underbridge maintenance, bearing replacement, installation and replacement of under-bridge pipelines and cables.

Specifications:



Structure type of bridge inspection vehiclePlatform type
Max. Horizontal working range22M (72’)
Max. vertical working depth8000mm (26’)
Width of work platform1080mm
Max. load on Truss platform800KG (1763lb)
Max. load on telescopic Truss platform400KG(881lb)
Max. Width of sidewalk spanning3000mm (9.8’)
Max. height of guardrail spanning4400mm (14.5’)
The 1st rotation angle scope0~90°
The 2nd rotation angle scope0~1800
Max. amble travelling speed15m/min
Operation ModeWireless Remoter , Panel, Emergency manual
Drive systemTwo drive system: PTO and gasoline generator
Amble self travelling deviceTransfer case instead of amble motor
ChassisVolvo FM420 84RB
G.V.W31000KG
Overall dimensions12560(L)×2500(W)×4000 (H)mm



Vehicle Constructure

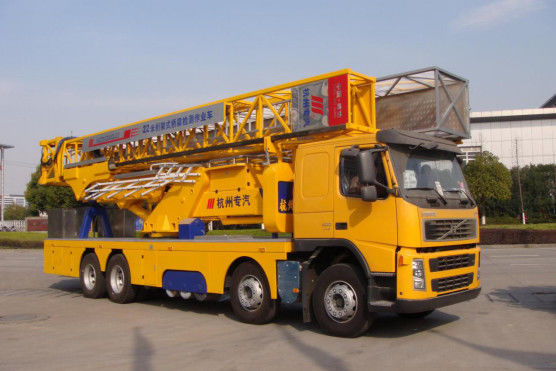

 Professional Bridge Inspection Platform High Efficient Underbridge Inspection Unit
Competitive Advantage:

  • Matured Technology

Innovation design with dozens of patents, rich experience with over 100 units annual production.
to ensure the technology and performance of vehicle in the world first class level.


  • Optimization Chassis

Adopted imported VOLVO chassis, 310KW large engine power, huge carrying capacity, good stability, economic environment and the luxurious cab, especially for long-time work.

  • Reliable Performance

The key parts of the hydraulic system, electrical system and control system all adapts imported well-known brand components, with stable and reliable performance,, ensure the fast reaction and stable performance.

  • Light weight design

Main structure parts made of imported high-strength steel with advanced welding procedure makes sure the Truss light with more loading capacity.


  • High Working Efficiently

Good capabilities of high-span and wide-span underbridge working range, suitable for different operating conditions
Self-propelled ability during operation, max. moving speed 15m/min

fast  reaction on extent and retract during under bridge work, and the vehicle deploy time is only 4 minutes.

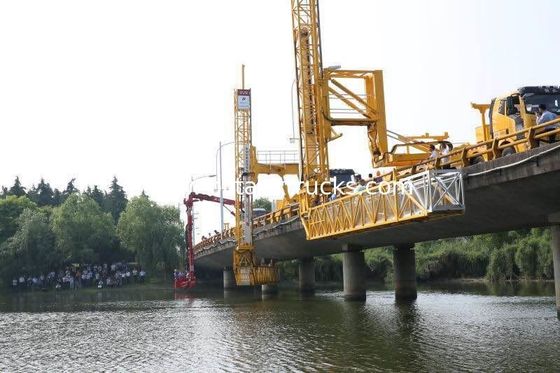

Professional Bridge Inspection Platform High Efficient Underbridge Inspection Unit

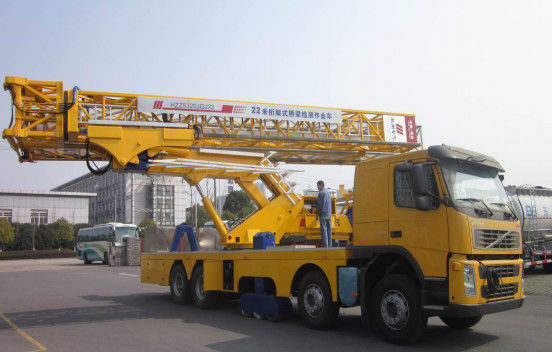

Professional Bridge Inspection Platform High Efficient Underbridge Inspection Unit
