| Horizontal Working Range Under Bridge: | 18m | Control System: | Electro-hydraulic Control |
|---|---|---|---|
| Feature: | BOOM CONFIGURATION | Application: | Aerial Access Equipment And Under Bridge Access Unit |
| Bucket: | Telescopic Bucket | ||
| High Light: | mobile bridge inspection platform,bridge inspection vehicle,Aerial Bridge Inspection Platform |
||

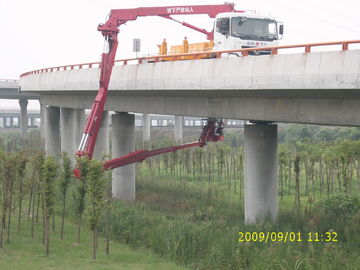

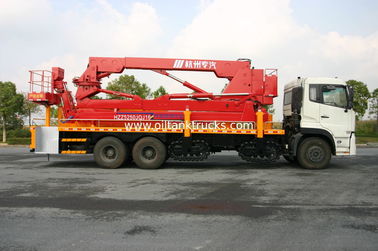

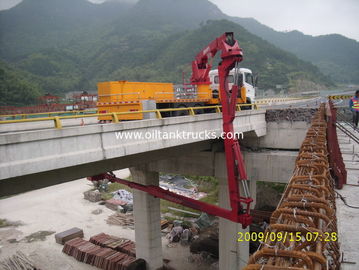

The bridge inspection vehicle is a kind of vehicle that provides a working platform during the detection process and can be equipped with bridge detection equipment for mobile inspection or maintenance for bridge inspection person.
It ensures that the staff can be quickly and safely transported to every inspection part of the bridge, including any positions on the bridge, under bridge, bridge pier, etc.
Idea for all under-bridge and aerial project: inspections, repairs, stripping operations, painting and sandblasting, general underbridge maintenance, bearing replacement, installation and replacement of under-bridge pipelines and cables.
Specifications:
| Structure type of bridge inspection vehicle | Bucket type |
| Max. Horizontal working range | 18M |
| Max. Lowering depth | 21.7 M |
| Max. Working Height | 15M |
| Max. load on Bucket | 250KG |
| Max. Width of sidewalk spanning | 5200mm |
| Max. height of guardrail spanning | 4300mm |
| The 1st rotation angle scope | 0~90° |
| The 2nd rotation angle scope | 0~1800 |
| Operation Mode | Wireless Remoter , Panel , Manual |
| Drive system | Two drive system: PTO and gasoline generator |
| Amble self travelling device | Transfer case instead of amble motor |
| Chassis | Volvo FM420 84RB |
| G.V.W | 31000KG |
| Overall dimensions | 12120(L)×2500(W)×4000(H)mm |
Constructure Feature-Boom System with Double-rotation, Triple-lifts, and Telescoping Basket
Competitive Advantage
High Working Efficiently
Good capabilities of high-span and wide-span underbridge working range, suitable for different operating conditions
Optimization Chassis
Adopted imported VOLVO chassis, 310KW large engine power, good stability, economic environment and the luxurious cab, especially for long-time work.
Reliable Performance
The key parts of the hydraulic system, electrical system and control system all adapts imported well-known brand components, with stable and reliable performance,, ensure the fast reaction and stable performance.
Matured Technology
Innovation design with dozens of patents, rich experience with over 100 units annual production.
to ensure the technology and performance of vehicle in the world first class level.
Market
We HSA, China leading BIU manufacturer and main supplier in Asia market. (large export to South Korea, Vietnam, Malaysia, Indonesia, Maldives, Brunei et)
Working video
Platform type MBIU: https://www.youtube.com/watch?v=IyyTuEgFubo&feature=youtu.be
Bucket type: https://www.youtube.com/watch?v=dXxARhbfV8I&feature=youtu.be
