|Horizontal Working Range:||24m||Capacity:||400kg/800kg|
|Self Propelled:||With Transfer Case||Road Occupation:||Single Lane Operation|
|Sidewalk Width:||3.5m||Sound Barrier:||4.5m|
|Under Bridge Depth:||8.5m||Chassis:||Chinese Brand|

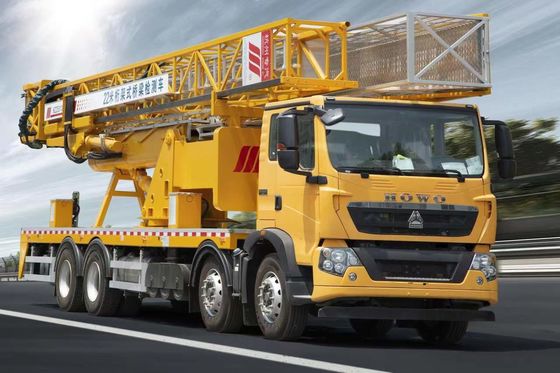

24m Platform Bridge Inspection Vehicle,
Single Lane Bridge Inspection Platform,
800kg Load Bridge Inspection Vehicle
With increasing numbers of bridges in the world, safety of bridges becomes a top priority. This needs periodic inspection on all parts of the bridge, which are not easily accessible. These inspections are primarily visual and require hands-on observations in order to check for loose and broken hardware, corrosion, insect damage, and a multitude of other maintenance and safety issues.
We offer an two models of Bridge Inspection truck. One is basket model and the other is platform model. Our bridge inspection trucks are Versatile, efficient and lightweight, they can help you with all your bridge inspection and maintenance needs.
As the bridges continue to age, more and more countries emphasis has slowly evolved from building new bridges to maintaining existing ones. New technologies, materials, evaluation techniques, and construction methods have advanced in recent years to meet this challenge.

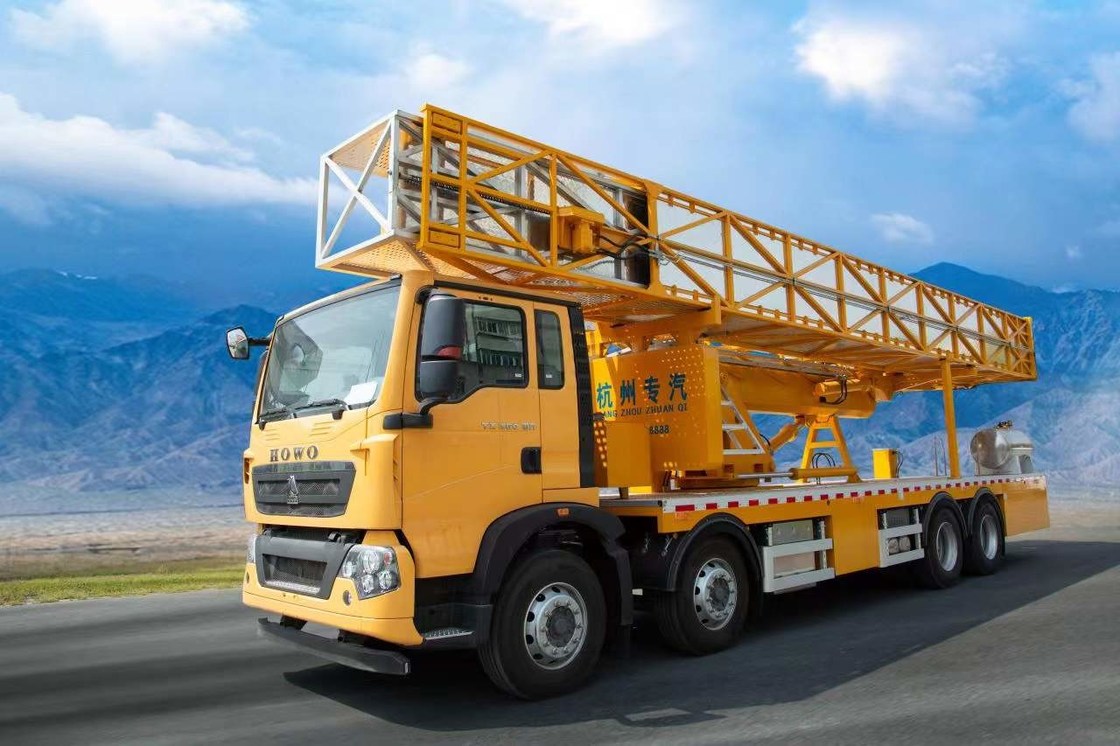

In order for a bridge owner to conduct its bridge inspections more easily and efficently. We suggest you use our platform type bridge inspection vehicle. Our platform type bridge inspection vehicle is a kind of vehicle that provides a working platform during the detection process and can be equipped with bridge detection equipment for mobile inspection or maintenance for bridge inspection person.

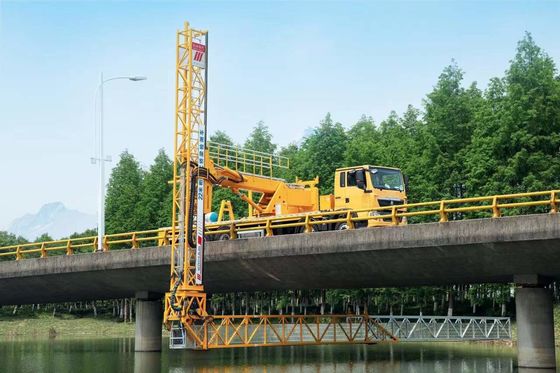

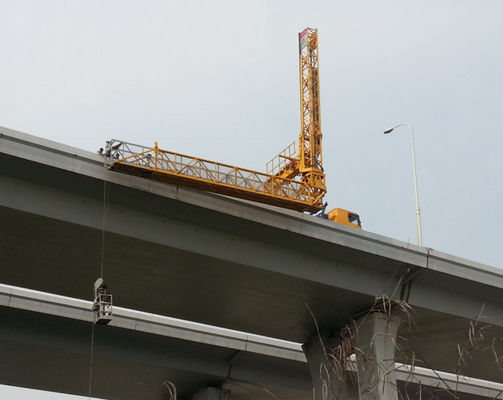

It ensures that the staff can be quickly and safely transported to every inspection part of the bridge, including any positions on the bridge, under bridge, bridge pier, etc.
|Structure type of bridge inspection vehicle||Platform type|
|Max. Horizontal working range||24M (72’)|
|Max. vertical working depth||8000mm (26’)|
|Width of work platform||1080mm|
|Max. load on Truss platform||800KG (1763lb)|
|Max. load on telescopic Truss platform||400KG(881lb)|
|Max. Width of sidewalk spanning||3000mm (9.8’)|
|Max. height of guardrail spanning||4400mm (14.5’)|
|The 1st rotation angle scope||0~90°|
|The 2nd rotation angle scope||0~1800|
|Max. amble travelling speed||15m/min|
|Operation Mode||Wireless Remoter , Panel, Emergency manual|
|Drive system||Two drive system: PTO and gasoline generator|
|Amble self travelling device||Transfer case instead of amble motor|
|Overall dimensions||12560(L)×2500(W)×4000 (H)mm|
2. Competitive Advantage:
Adopted Chinese brand Howo chassis, large engine power, huge carrying capacity, good stability, economic environment and the luxurious cab, especially for long-time work, high quality and competitive price.
The key parts of the hydraulic system, electrical system and control system all adapts imported well-known brand components, with stable and reliable performance,, ensure the fast reaction and stable performance.

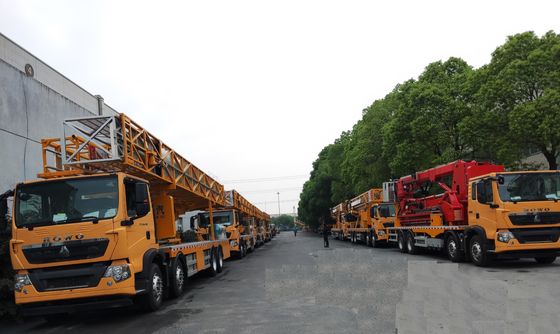

Our service team can arrange shipment for you, to keep sure you can get our products on schedule. We will make sure all the vehicle safe in delivery.
Our Bridge Inspection Vehicles have been exported to South Korea, Brunei, Malaysia, Vitenam, Maldives, Indonisia and etc.
4. MBIU working video on youtube:
Platform type MBIU: https://www.youtube.com/watch?v=IyyTuEgFubo&feature=youtu.be
Bucket type: https://www.youtube.com/watch?v=dXxARhbfV8I&feature=youtu.be
