| Working Length: | 22m | Load Of Working Platform: | 400kg/800kg |
|---|---|---|---|
| Open Time: | Less Than 5 Minutes | Self Propelled: | Transfer Case |
| Road Occupation: | Occupy One Lane When Working | Total Weight: | 31 Tons |
| Sidewalk Width: | 3.5m | Sound Barrier Height: | 4.5m |
| Auto Backward And Forward: | Yes | ||
| High Light: | 22M Bridge Inspection Vehicle,Chassis Bridge Inspection Vehicle,Chassis Bridge Inspection Platform |
||

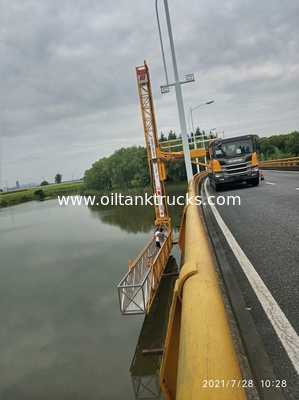

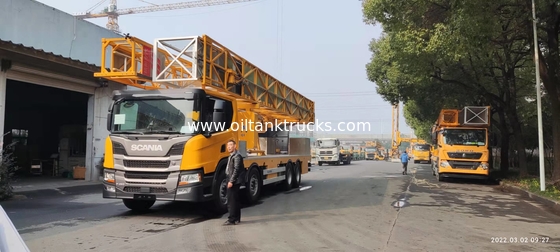

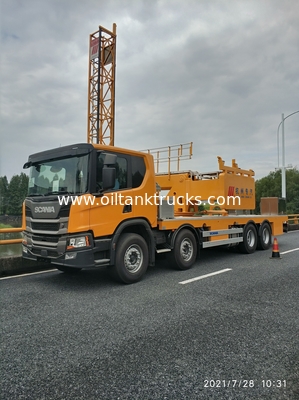

The bridge inspection platform is a kind of vehicle that provides a working platform during the detection process and can be equipped with bridge detection equipment for mobile inspection or maintenance for bridge inspection person.
our bridge inspection and maintenance trucks which allow workers to manoeuvre safely into position for hands on inspection and maintenance work.
Idea for all under-bridge project: inspections, repairs, stripping operations, painting and sandblasting, general underbridge maintenance, bearing replacement, installation and replacement of under-bridge pipelines and cables.
| Structure type of bridge inspection vehicle | Platform type |
| Max. Horizontal working range | 22M (72’) |
| Max. vertical working depth | 8000mm (26’) |
| Width of work platform | 1080mm |
| Max. load on Truss platform | 800KG (1763lb) |
| Max. load on telescopic Truss platform | 400KG(881lb) |
| Max. Width of sidewalk spanning | 3500mm (9.8’) |
| Max. height of guardrail spanning | 4500mm (14.5’) |
| The 1st rotation angle scope | 0~90° |
| The 2nd rotation angle scope | 0~1800 |
| Max. amble travelling speed | 15m/min |
| Operation Mode | Wireless Remoter , Panel, Emergency manual |
| Drive system | Two drive system: PTO and gasoline generator |
| Amble self travelling device | Transfer case instead of amble motor |
| Chassis | Volvo FM420 84RB |
| G.V.W | 31000KG |
| Overall dimensions | 12560(L)×2500(W)×4000 (H)mm |
The Bridge Repair Section provides assistance in the following areas:
Provides recommendations and assistance to state bridge repair crews in making routine maintenance type repairs
Works with Materials and Tests personnel with installation and evaluation of new products developed or proposed for repair work
Develops projects for maintenance painting of steel structures (This duty also involves evaluating new paint systems and developing specifications for painting projects.)
Makes recommendations and provides details for bridge repairs on bridges included in the limits of roadway resurfacing projects
3. MBIU working video on youtube
Platform type MBIU: https://www.youtube.com/watch?v=IyyTuEgFubo&feature=youtu.be
Bucket type: https://www.youtube.com/watch?v=dXxARhbfV8I&feature=youtu.be
