| Horizontal Working Length: | 22m | Load Of Working Plalform: | 400kg/800kg |
|---|---|---|---|
| Erecting Time: | Within 5 Minutes | Self Propelled: | Transfer Box |
| Road Occupation: | One Lane Width | Wheel Formula: | 8*4 |
| Sidewalk Width: | 3.5m | Under Depth: | 8.5m |
| High Light: | Lighting Bridge Inspection Vehicle,Refurbishing Bridge Inspection Vehicle,Refurbishing Bridge Inspection Platform |
||
Powerful Communication Function
Configure the video image monitoring system, enabling multi-party video intercom, platform monitoring, reverse video and other functions to ensure smooth communication.
Good operation performance
Equipped with imported wireless remote control(original from Germany NBB), the control distance is 100 meters.

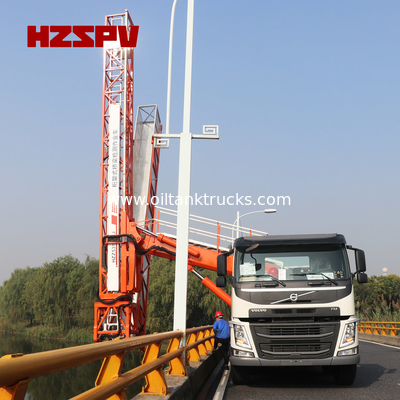

| Structure type of bridge inspection vehicle | Platform type |
| Max. Horizontal working range | 22M |
| Max. vertical working depth | 8000mm |
| Width of work platform | 1080mm |
| Max. load on Truss platform | 800KG |
| Max. load on telescopic Truss platform | 400KG |
| Max. Width of sidewalk spanning | 3000mm |
| Max. height of guardrail spanning | 4400mm |
| The 1st rotation angle scope | 0~90° |
| The 2nd rotation angle scope | 0~1800 |
| Max. amble travelling speed | 15m/min |
| Operation Mode | Wireless Remoter , Panel, Emergency manual |
| Drive system | Two drive system: PTO and gasoline generator |
| Amble self travelling device | Transfer case instead of amble motor |
| Chassis | Volvo FM450 84RB |
| G.V.W | 31000KG |
| Overall dimensions | 12560(L)×2500(W)×4000 (H)mm |
2. Competitive Advantage:
Innovation design with dozens of patents, rich experience with over 100 units annual production.
to ensure the technology and performance of vehicle in the world first class level.
The key parts of the hydraulic system, electrical system and control system all adapts imported well-known brand components, with stable and reliable performance,, ensure the fast reaction and stable performance.
Main structure parts made of imported high-strength steel with advanced welding procedure makes sure the Truss light with more loading capacity.
Good capabilities of high-span and wide-span underbridge working range, suitable for different operating conditions
Self-propelled ability during operation, max. moving speed 15m/min
fast reaction on extent and retract during under bridge work, and the vehicle deploy time is only 4 -8 minutes.
3. working video for your reference please watch by youtube:
Platform type MBIU: https://www.youtube.com/watch?v=IyyTuEgFubo&feature=youtu.be
Bucket type: https://www.youtube.com/watch?v=dXxARhbfV8I&feature=youtu.be
