Product Details:
Payment & Shipping Terms:
|
| Horizontal Working Range Under Bridge: | 17m | Related Load Capacity Of Working Platform: | 300kg/600kg |
|---|---|---|---|
| Erecting Time: | Within 5 Minutes | Self Propelled: | With Transfer Box |
| Road Occupation: | Single Lane Operation | Specification Crossing Sidewalk: | 3.5m |
| Specification Soundbarrier: | 4.8m | ||
| High Light: | Horizontal Bridge Inspection Truck,Wireless Remote Bridge Inspection Truck,17M Bridge Inspection Platform |
||
| Structure type of bridge inspection vehicle | Platform type |
| Max. Horizontal working range | 17M (72’) |
| Max. vertical working depth | 8000mm (26’) |
| Width of work platform | 1080mm |
| Max. load on Truss platform | 600KG (1763lb) |
| Max. load on telescopic Truss platform | 300KG(881lb) |
| Max. Width of sidewalk spanning | 3000mm (9.8’) |
| Max. height of guardrail spanning | 4200mm (14.5’) |
| The 1st rotation angle scope | 0~90° |
| The 2nd rotation angle scope | 0~1800 |
| Max. amble travelling speed | 15m/min |
| Operation Mode | Wireless Remoter , Panel, Emergency manual |
| Drive system | Two drive system: PTO and gasoline generator |
| Amble self travelling device | Transfer case instead of amble motor |

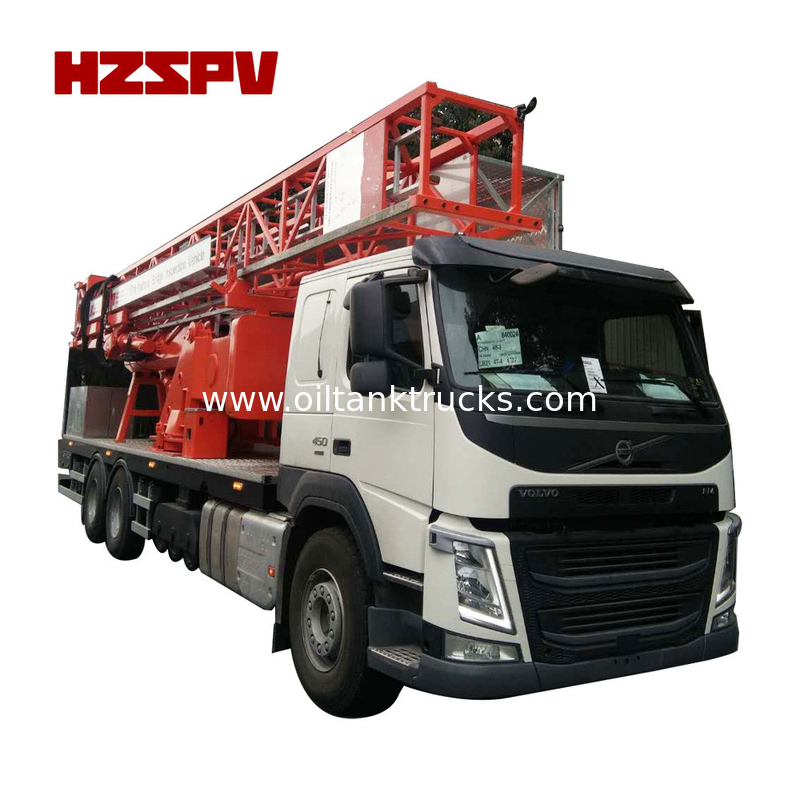

| Chassis | Volvo FM450 64R B |
| G.V.W | 28000KG |
| Overall dimensions | 11560(L)×2500(W)×4000 (H)mm |

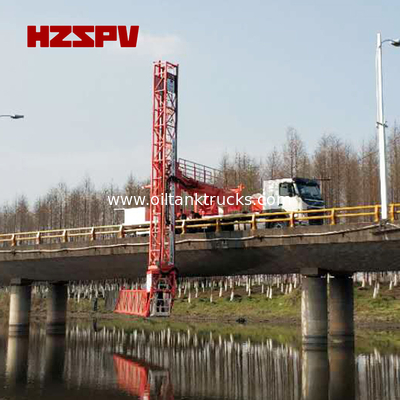

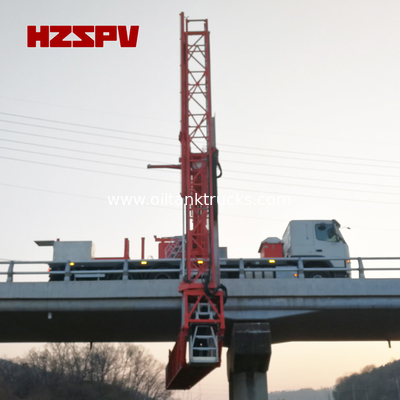

This platform type bridge inspection truck is can provide a working platform during the inspection processing and can be equipped with different chassis for mobile inspection or maintenance for all bridges.
It ensures that the staff can be quickly and safely transported to every inspection part of the bridge, including any positions on the bridge, under bridge, bridge pier, etc.
Idea for all under-bridge project: inspections, repairs, stripping operations, painting and sandblasting, general underbridge maintenance, bearing replacement, installation and replacement of under-bridge pipelines and cables.
3. Market
Our Bridge Inspection Vehicles have been exported to South Korea, Brunei, Malaysia, Vitenam, Maldives, Indonisia and etc.
4. kindly watch our vedio by the below youtube link.
Platform type MBIU: https://www.youtube.com/watch?v=IyyTuEgFubo&feature=youtu.be
Bucket type: https://www.youtube.com/watch?v=dXxARhbfV8I&feature=youtu.be
