22 M Under Bridge Inspection Vehicle Self Erecting In 5 Minutes

China HANGZHOU SPECIAL AUTOMOBILE CO.,LTD certification
China HANGZHOU SPECIAL AUTOMOBILE CO.,LTD certification
Good quality and reasonable price. Wish your company business better and better.

—— Micheal

Nice service will get nice achievement, come on guys!

—— John

I'm Online Chat Now

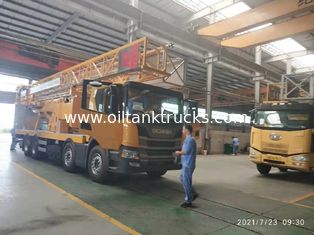

22 M Under Bridge Inspection Vehicle Self Erecting In 5 Minutes

22 M Under Bridge Inspection Vehicle Self Erecting In 5 Minutes
22 M Under Bridge Inspection Vehicle Self Erecting In 5 Minutes

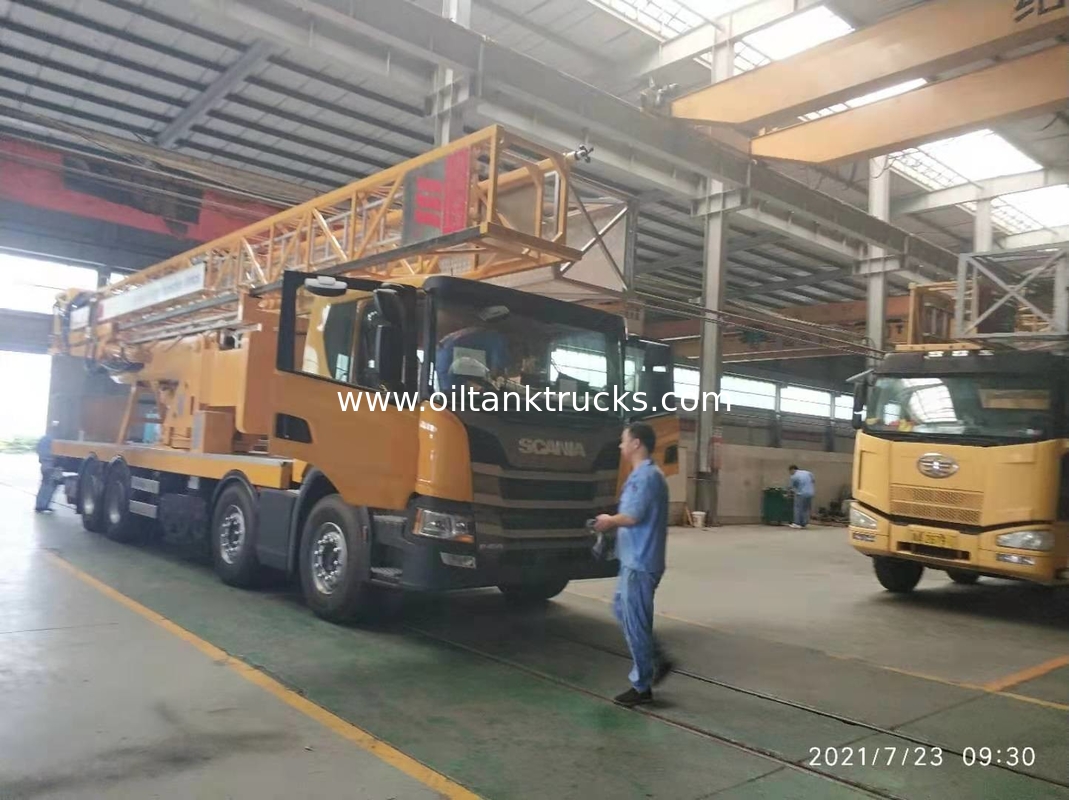

Large Image :  22 M Under Bridge Inspection Vehicle Self Erecting In 5 Minutes

Product Details:
Place of Origin: China
Brand Name: HSA
Certification: ISO9001, CCC
Model Number: HSA5319JQJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy package
Delivery Time: 60-90 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 97 sets per year
Detailed Product Description
Horizontal Working Range Under Bridge: 22m Cap.: 400kg/800kg
Deploy Time: Self Erecting In 5 Minutes Self Propelled: With Transfer Box
Road Occupation: Single Lane Operation
High Light:

Self Erecting Under Bridge Inspection Vehicle

,

Self Erecting Underbridge Inspection Truck

,

22M Underbridge Inspection Truck

HSA Official Manufacturer 22 M Under Bridge Inspection Vehicle With Best Quality And Good Discount

China newest under bridge inspection platform from HSA



The bridge inspection platform is a kind of vehicle that provides a working platform during the detection process and can be equipped with bridge detection equipment for mobile inspection or maintenance for bridge inspection person.

It ensures that the staff can be quickly and safely transported to every inspection part of the bridge, including any positions on the bridge, under bridge, bridge pier, etc.

Idea for all under-bridge project: inspections, repairs, stripping operations, painting and sandblasting, general underbridge maintenance, bearing replacement, installation and replacement of under-bridge pipelines and cables.
22 M Under Bridge Inspection Vehicle Self Erecting In 5 Minutes 0

  1. Specifications:
Structure type of bridge inspection vehicle Platform type
Max. Horizontal working range 22M
Max. vertical working depth 8000mm
Width of work platform 1080mm
Max. load on Truss platform 800KG
Max. load on telescopic Truss platform 400KG
Max. Width of sidewalk spanning 3000mm
Max. height of guardrail spanning 4400mm
The 1st rotation angle scope 0~90°
The 2nd rotation angle scope 0~1800
Max. amble travelling speed 15m/min
Operation Mode Wireless Remoter , Panel, Emergency manual
Drive system Two drive system: PTO and gasoline generator
Amble self travelling device Transfer case instead of amble motor
Chassis Scania P450
G.V.W 31000KG
Overall dimensions 12560(L)×2500(W)×4000 (H)mm




2. Competitive Advantage:

  • Matured Technology

Innovation design with dozens of patents, rich experience with over 100 units annual production.
to ensure the technology and performance of vehicle in the world first class level.


  • Optimization Chassis

Adopted imported Scania chassis, 310KW large engine power, huge carrying capacity, good stability, economic environment and the luxurious cab, especially for long-time work.

  • Reliable Performance

The key parts of the hydraulic system, electrical system and control system all adapts imported well-known brand components, with stable and reliable performance,, ensure the fast reaction and stable performance.

  • Light weight design

Main structure parts made of imported high-strength steel with advanced welding procedure makes sure the Truss light with more loading capacity.


  • High Working Efficiently

Good capabilities of high-span and wide-span underbridge working range, suitable for different operating conditions
Self-propelled ability during operation, max. moving speed 15m/min

fast  reaction on extent and retract during under bridge work, and the vehicle deploy time is only 4 -8 minutes.





3. Market



We HSA, China leading BIU manufacturer and main supplier in Asia market. (large export to South Korea, Vietnam, Malaysia, Indonesia, Maldives, Brunei et)





4. MBIU working video



Platform type MBIU: https://www.youtube.com/watch?v=IyyTuEgFubo&feature=youtu.be



Bucket type: https://www.youtube.com/watch?v=dXxARhbfV8I&feature=youtu.be
