Product Details:
Payment & Shipping Terms:
|
| Horizontal Working Length: | 22m | Cap.: | 400kg/800kg |
|---|---|---|---|
| Self Propelled: | With Transfer Box | Road Occupation Width: | Only Occupy One Lane |
| Control System: | Remote, Manual | Operation: | Easy Operation |
| Color: | Yellow Or Depends On Customer's Requirements |
With increasing numbers of bridges in the world, safety of bridges becomes a top priority. This needs periodic inspection on all parts of the bridge, which are not easily accessible. These inspections are primarily visual and require hands-on observations in order to check for loose and broken hardware, corrosion, insect damage, and a multitude of other maintenance and safety issues.

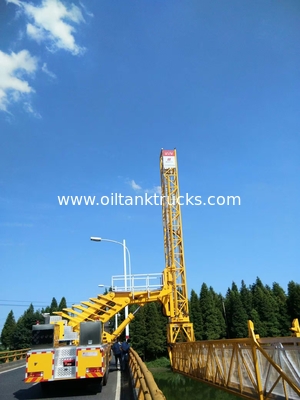

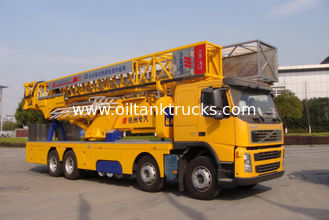

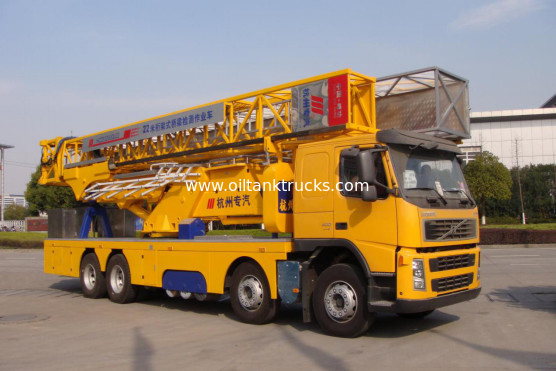

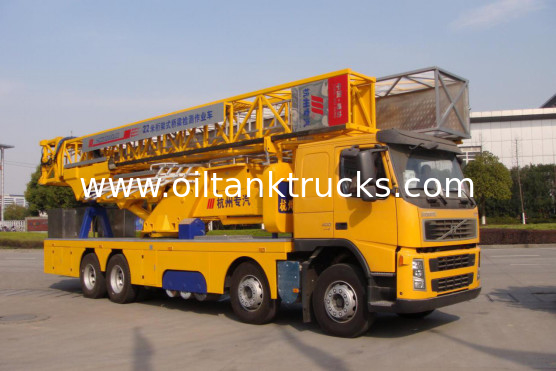

This platform bridge inspection vehicle is a kind of vehicle that provides a working platform during the detection process and can be equipped with bridge detection equipment for mobile inspection or maintenance for bridge inspection person.

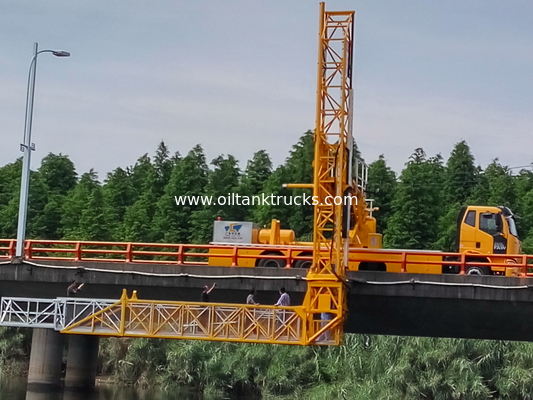

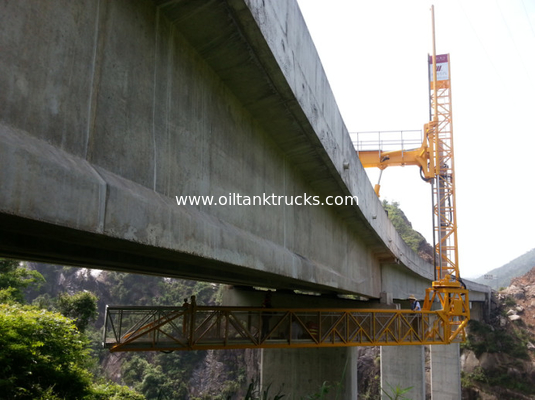

Let your inspection staffs quickly and safely go to every inspection part of the bridge, including any positions on the bridge, under bridge, bridge pier, etc. The truck can go forwarder or backward by use the remote control, no need a driver to do it.
Idea for all under-bridge project: inspections, repairs, stripping operations, painting and sandblasting, general underbridge maintenance, bearing replacement, installation and replacement of under-bridge pipelines and cables.
| Structure type of bridge inspection vehicle | Platform type |
| Max. Horizontal working range | 22M (72’) |
| Max. vertical working depth | 8000mm (26’) |
| Width of work platform | 1080mm |
| Max. load on Truss platform | 800KG (1763lb) |
| Max. load on telescopic Truss platform | 400KG(881lb) |
| Max. Width of sidewalk spanning | 3000mm (9.8’) |
| Max. height of guardrail spanning | 4400mm (14.5’) |
| The 1st rotation angle scope | 0~90° |
| The 2nd rotation angle scope | 0~1800 |
| Max. amble travelling speed | 15m/min |
| Operation Mode | Wireless Remoter , Panel, Emergency manual |
| Drive system | Two drive system: PTO and gasoline generator |
| Amble self travelling device | Transfer case instead of amble motor |
| Chassis | Volvo FM420 84RB |
| G.V.W | 31000KG |
| Overall dimensions | 12560(L)×2500(W)×4000 (H)mm |
2. Competitive Advantage:
Innovation design with dozens of patents, rich experience with over 100 units annual production.
to ensure the technology and performance of vehicle in the world first class level.
The key parts of the hydraulic system, electrical system and control system all adapts imported well-known brand components, with stable and reliable performance,, ensure the fast reaction and stable performance.
Main structure parts made of imported high-strength steel with advanced welding procedure makes sure the Truss light with more loading capacity.
Good capabilities of high-span and wide-span underbridge working range, suitable for different operating conditions
Self-propelled ability during operation, max. moving speed 15m/min
fast reaction on extent and retract during under bridge work, and the vehicle deploy time is only 4 -8 minutes.
3. Market
Our Bridge Inspection Vehicles have been exported to South Korea, Brunei, Malaysia, Vitenam, Maldives, Indonisia and etc.
4. MBIU working video on youtube
Platform type MBIU: https://www.youtube.com/watch?v=IyyTuEgFubo&feature=youtu.be
Bucket type: https://www.youtube.com/watch?v=dXxARhbfV8I&feature=youtu.be
