|Horizontal Working Length:||22m||Cap.:||400kg/800kg|
|Self Propelled:||With Transfer Case||Road Occupation:||Single Lane Operation|
|Color:||Can Be Chosen By Customer|

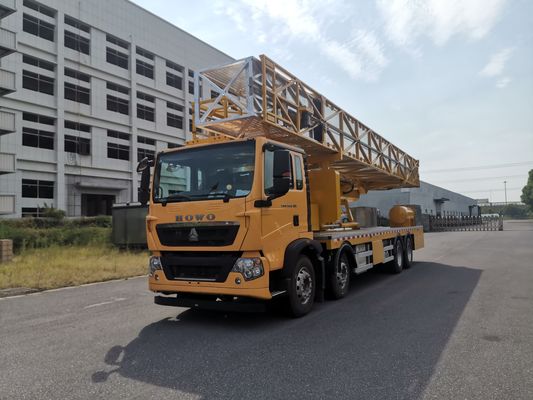

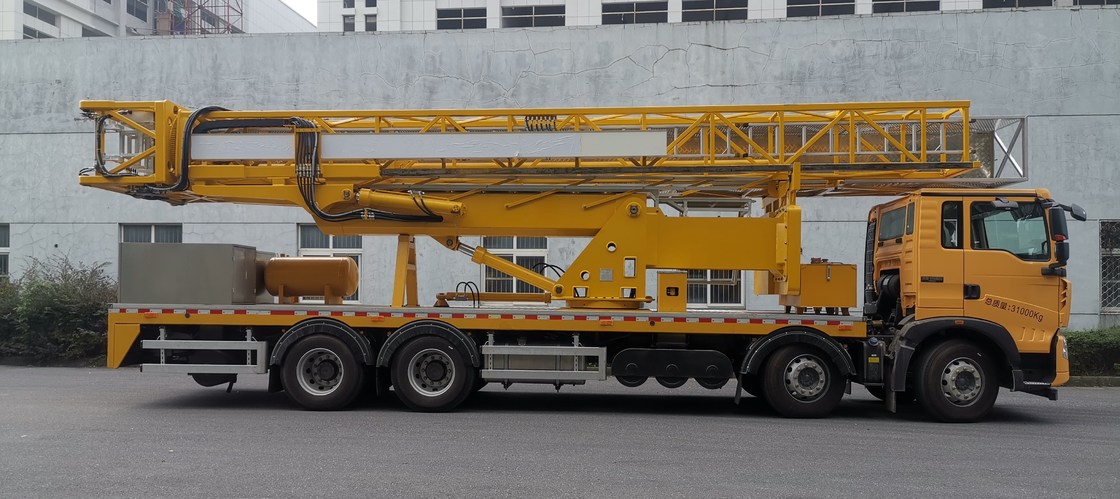

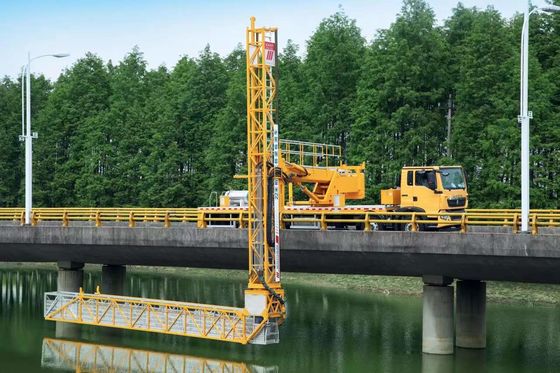

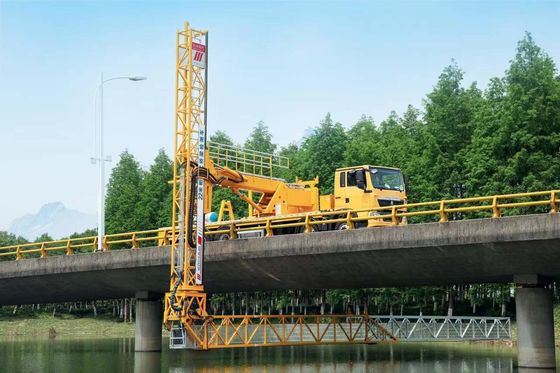

The bridge inspection vehicle ensures that the staff can be quickly and safely transported to every inspection part of the bridge, including any positions on the bridge, under bridge, bridge pier, etc.
Idea for all under-bridge projects: inspections, repairs, bearing replacement, installation and replacement of under-bridge pipelines and cables.
|Structure type of bridge inspection vehicle||Platform type|
|Max. Horizontal working range||22M (72’)|
|Max. vertical working depth||8000mm (26’)|
|Width of work platform||1080mm|
|Max. load on Truss platform||800KG (1763lb)|
|Max. load on telescopic Truss platform||400KG(881lb)|
|Max. Width of sidewalk spanning||3000mm (9.8’)|
|Max. height of guardrail spanning||4400mm (14.5’)|
|The 1st rotation angle scope||0~90°|
|The 2nd rotation angle scope||0~1800|
|Max. amble travelling speed||15m/min|
|Operation Mode||Wireless Remoter , Panel, Emergency manual|
|Drive system||Two drive system: PTO and gasoline generator|
|Amble self travelling device||Transfer case instead of amble motor|
|Chassis||Volvo FM420 84RB|
|Overall dimensions||12560(L)×2500(W)×4000 (H)mm|
2. Competitive Advantage:
Innovation design with dozens of patents, rich experience with over 100 units annual production.
to ensure the technology and performance of vehicle in the world first class level.
Adopted imported Scania chassis, 310KW large engine power, huge carrying capacity, good stability, economic environment and the luxurious cab, especially for long-time work.
Main structure parts made of imported high-strength steel with advanced welding procedure makes sure the Truss light with more loading capacity.
Good capabilities of high-span and wide-span underbridge working range, suitable for different operating conditions
Self-propelled ability during operation, max. moving speed 15m/min
fast reaction on extent and retract during under bridge work, and the vehicle deploy time is only 4 -8 minutes.
4. working video please find on below website.
Platform type MBIU: https://www.youtube.com/watch?v=IyyTuEgFubo&feature=youtu.be
