\SINO TRUK 15M Platfrom Bridge Inspection Vehicle Easy Operation And Easy Access

China \SINO TRUK 15M Platfrom Bridge Inspection Vehicle Easy Operation And Easy Access supplier
\SINO TRUK 15M Platfrom Bridge Inspection Vehicle Easy Operation And Easy Access supplier \SINO TRUK 15M Platfrom Bridge Inspection Vehicle Easy Operation And Easy Access supplier \SINO TRUK 15M Platfrom Bridge Inspection Vehicle Easy Operation And Easy Access supplier

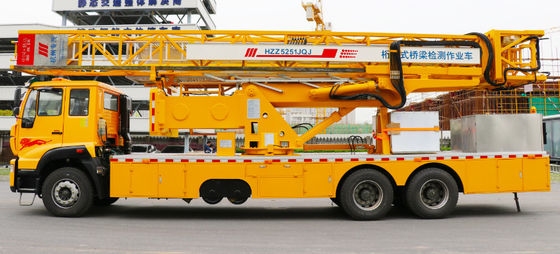

Large Image :  \SINO TRUK 15M Platfrom Bridge Inspection Vehicle Easy Operation And Easy Access

Product Details:

Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ5251JQJ

Payment & Shipping Terms:

Minimum Order Quantity: No limited
Price: negotiation
Packaging Details: Naked
Delivery Time: 45days
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 2Units/Month
Port of Delivery:: Shanghai/Ningbo
Contact Now
Detailed Product Description
MAX LOAD: 600kg MAX SPEED: 85KM/H
MAX LOAD OF FRONT END: 250KG Model: HZZ5251JQJ
CHASSIS TYPE: HOWO 6X4 OUTER DIMENSION: 11550X2500X4000
OPERATING RANGE UNDER BRIDGE: 15000mm


15m Platform Bridge Inspection Vehicle with Sinotruk 6X4 chassis

Quick Details:

Model:HZZ5251JQJ
Product name:15m Platform  Bridge Inspection Vehicle
Chassis Model:Styre Euro 2
Driver type:RHD 6×4

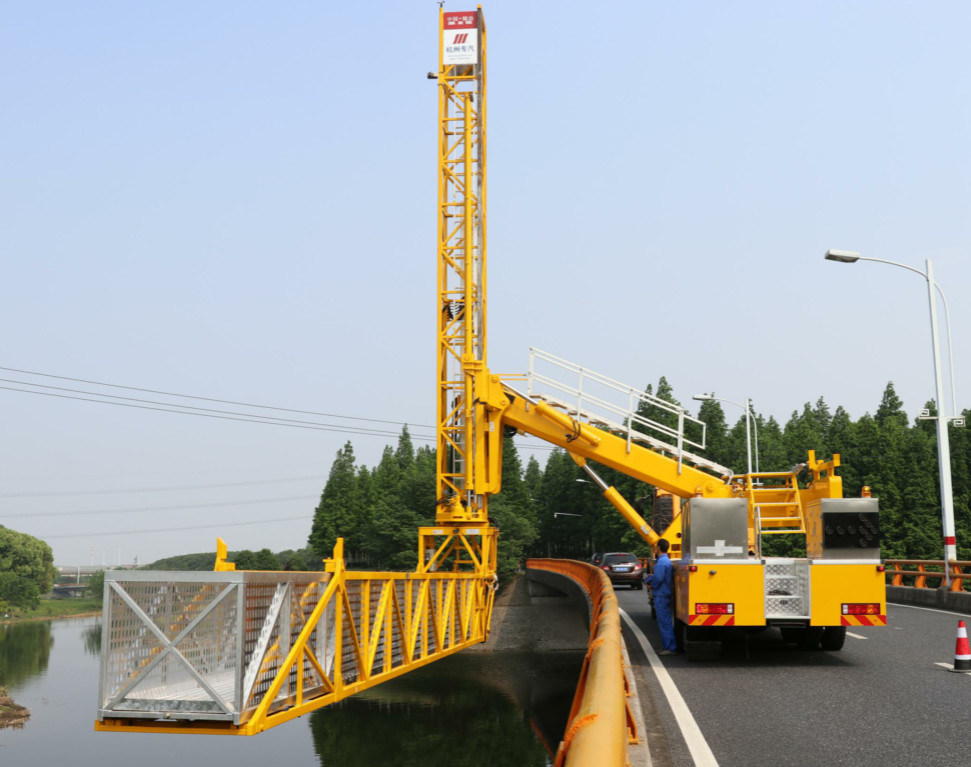

Road bridges carrying passengers and vehicles are required a routine inspection every year. Meeting these requirements often involves the use of specialized heavy machinery, such as an under-bridge inspection vehicle to gain access. HZZ5251JQJ is efficient and lightweight, It can help you with your bridge inspection and maintenance needs.

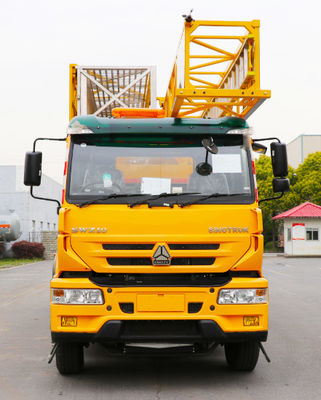

\SINO TRUK 15M Platfrom Bridge Inspection Vehicle Easy Operation And Easy Access
Specifications:

Category Item Parameter and Dimension
Chassis Model(SINOTRUK Steyr) ZZ1251N6041W 6×4 RHD
Geometric parameters Overall length of (mm) 11550
Overall width of (mm) 2500
Overall height of (mm) 4000
Mass parameters Maximum gross mass (including mass of two persons) (kg) 24000
Driving parameters Top traveling speed (km/h) 90
Maximum grade ability (%) 30
Braking distance (on dry and even asphalt road, 30km/h) (m) ≯10
Minimum ground clearance (mm) 240
Minimum turning diameter (m) ≯22.5
Approach angle 20.5º
Departure angle 11º
Maximum driving range (km) 600





Parameter category Unit Value
Load working Kg 600
Underbridge horizontal working range m 0-15
Underbridge vertical working range m 0-8.5
Rotation range of first rotating 0 0º-90º
Rotation range of second rotating 0 0º-180º
Maximum crossing sound barrier height m 3.5
Maximum sidewalk crossover distance m 2.5


Competitive Advantage:

  1. With Sinotruk EURO 2 Styre Chassis, Has more merits as: low oil consumption, environmental design, ensure high stability.
  2. Air suspension system can adjust the chasis height automaticly, highly increase the stability for such a pot hole ground.
  3. Hydrostatic drive, highly achieved secure in slope and wet road conditions.
  4. Those hydraulic steering wheel system, greatly balance the widthness while operating.
  5. Two sets of control system on platform either into the control box respectively, allows the operator monitor safety.
  6. The hydraulic synchronous interlock device, intercom system, safty lock valve to ensure the safty handing.
  7. US Kohler emergency power supply, able to achieve the folding reset, in case the engine doesn' attent well.
  8. Max. platform payload is 600kg (can affordable 6-7 operators), the tail of the platform payload is about 250kg. The extendable folding platform can be adjustable luffing from 2-4meter, greatly imporve the inspection area under the bridge.
  9. High strength steel platform frame provide more stability which able to rotate 180°under the bridge, and also keep the limitation of max. drop height for 7meter only.
