Product Details:
Payment & Shipping Terms:
|
| Mode: | 20 Feet Tank Container | Exterior Dimensions(mm): | 6058×2438×2591 |
|---|---|---|---|
| Design Temperature(℃): | 50 | Water Testing Pressure(MPa): | 0.4 (Cylinder-shaped) |
| Insulating Materials And Thickness(mm): | 50mm Glass Fiber/Polyurethane | Heating: | Steam Heat |
| Capacity(m3): | 20FT(Max. 26000L) | Main Tank Materials: | Carbon Steel Q345,stainless Steel304/316L |
| Norminal Barrel Thickness (mm): | 5 | Norminal Ends Thickness(mm): | 6 |
| Outer Matte Materials: | Stainless Steel Mirror Finish/GRP | Frame Material: | Carbon Steel Q345D |
| Manway, Breather Valve, Foot Valve: | Optional “FORT VALE” , “EMCO” | ||
| High Light: | fuel tank container,oil tank container |
||

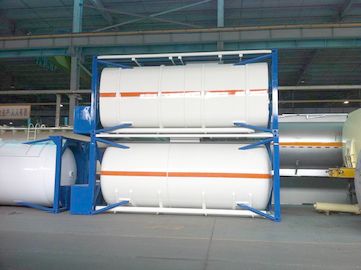

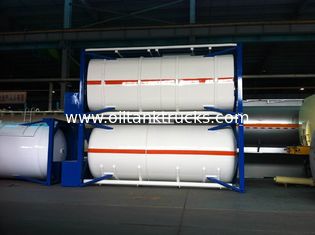

ISO 30Ft , 40Ft Liquid Storage Tank Container Stainless Steel For Logistic Shipping
Quick Details:
Type: Tank Container
Length (feet):20,30,40
Certification:ISO9001, CCC
Capacity:20FT(Max. 26000L), 30FT(Max.39000L), 40FT(Max.48000L)
The production has such advantages as: light tare weight, widely-range loading, long service life, easy clean and maintenance.The tank container design in accordance with ISO international standard, accord with international shipping standard.
Applications:
Widely used in chemical manufacture, greatly save the storage space and reduce the cost which compare with the traditional barrel package.
Specifications:
|
Technical Parameter of Tank Container |
||
|
|
20 feet tank container |
40 feet tank container |
|
Exterior dimensions(mm) |
6058×2438×2591 |
12192×2438×2591 |
|
Design temperature(℃) |
50 |
|
|
Insulating performance |
If necessary |
|
|
Water testing pressure(MPa) |
0.4 (Cylinder-shaped) |
0.15(Square-shaped) |
|
Insulating materials and thickness(mm) |
50mm Glass fiber/Polyurethane |
|
|
Heating |
Steam heat |
|
|
Capacity(m3) |
20FT(Max. 26000L), 30FT(Max.39000L), 40FT(Max.48000L) |
|
|
Main Tank Materials |
Carbon steel Q345,stainless steel304/316L |
|
|
Norminal Barrel Thickness (mm) |
5 |
|
|
Norminal Ends Thickness(mm) |
6 |
|
|
Outer matte materials |
Stainless steel mirror finish/GRP |
|
|
Frame Material |
Carbon Steel Q345D |
|
|
Manway, Breather valve, Foot valve |
Optional “FORT VALE” , “EMCO” |
|
Competitive Advantage:
The liquid tanker is produced with the special equipments such as automatic welding machine(8m) and CNC plasma cutting and automatic submerged arc welding forming which can realize welding by one side in shape by two sides, having the merits of stable quality, less cost, and good-looking.
