Stainless Steel 20ft Liquid Tank Container 26000L International Shipping Standard

China Stainless Steel 20ft Liquid Tank Container 26000L International Shipping Standard supplier

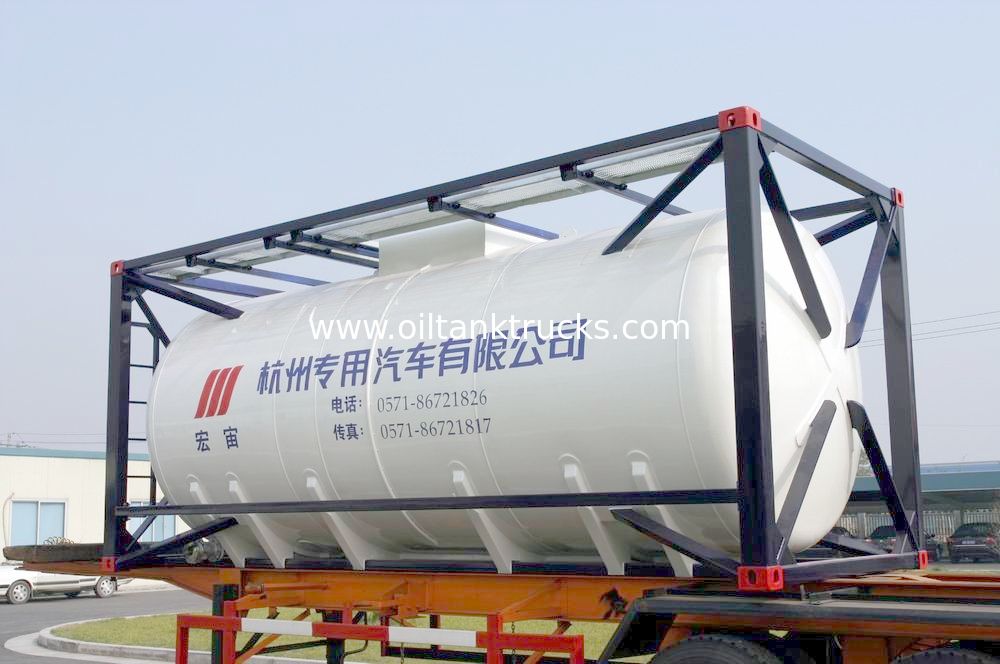

Large Image :  Stainless Steel 20ft Liquid Tank Container 26000L International Shipping Standard

Product Details:

Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: TANK2200

Payment & Shipping Terms:

Minimum Order Quantity: No limited
Price: negotiation
Packaging Details: Naked
Delivery Time: 45days
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 4Units/Month
Port of Delivery:: Shanghai/Ningbo
Contact Now
Detailed Product Description
Size: 20 Feet Tank Container Exterior Dimensions(mm): 6058×2438×2591
Design Temperature(℃): 50 Insulating Performance: If Necessary
Water Testing Pressure(MPa): 0.4 (Cylinder-shaped) Insulating Materials And Thickness(mm): 50mm Glass Fiber/Polyurethane
Heating: Steam Heat Capacity(m3): 20FT(Max. 26000L)
Main Tank Materials: Carbon Steel Q345,stainless Steel304/316L Norminal Barrel Thickness (mm): 5
Norminal Ends Thickness(mm): 6 Outer Matte Materials: Stainless Steel Mirror Finish/GRP
Frame Material: Carbon Steel Q345D

Liquid Tank Container Stainless Steel 20ft 26000L International Shipping Standard



Quick Details:



Standard:ISO, international shipping standard

Applications:Widely used in chemical manufacture

Main Tank Materials:Carbon steel Q345,stainless steel304/316L



The tank container design in accordance with ISO international standard, accord with international shipping standard. The production has such advantages as: light tare weight, widely-range loading, long service life, easy clean and maintenance.



Applications:


Widely used in chemical manufacture, greatly save the storage space and reduce the cost which compare with the traditional barrel package.




Specifications:



Technical Parameter of Tank Container



20 feet tank container

40 feet tank container

Exterior dimensions(mm)

6058×2438×2591

12192×2438×2591

Design temperature(℃)

50

Insulating performance

If necessary

Water testing pressure(MPa)

0.4 (Cylinder-shaped)

0.15(Square-shaped)

Insulating materials and thickness(mm)

50mm Glass fiber/Polyurethane

Heating

Steam heat

Capacity(m3)

20FT(Max. 26000L), 30FT(Max.39000L), 40FT(Max.48000L)

Main Tank Materials

Carbon steel Q345,stainless steel304/316L



Norminal Barrel Thickness (mm)

5

Norminal Ends Thickness(mm)

6

Outer matte materials

Stainless steel mirror finish/GRP

Frame Material

Carbon Steel Q345D

 Manway, Breather valve, Foot valve

Optional “FORT VALE” , “EMCO”




Competitive Advantage:


The liquid tanker is produced with the special equipments such as automatic welding machine(8m) and CNC plasma cutting and automatic submerged arc welding forming which can realize welding by one side in shape by two sides, having the merits of stable quality, less cost, and good-looking.
