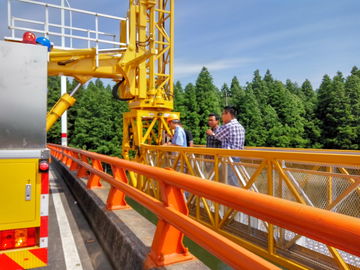

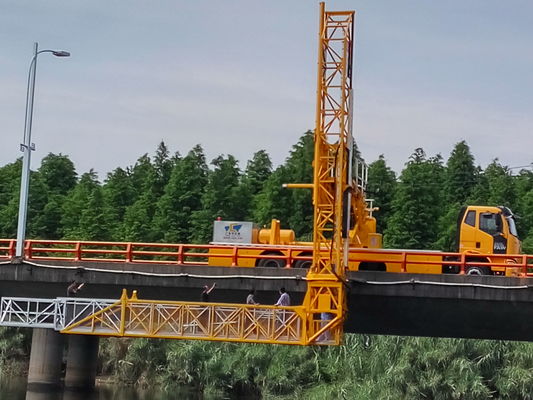

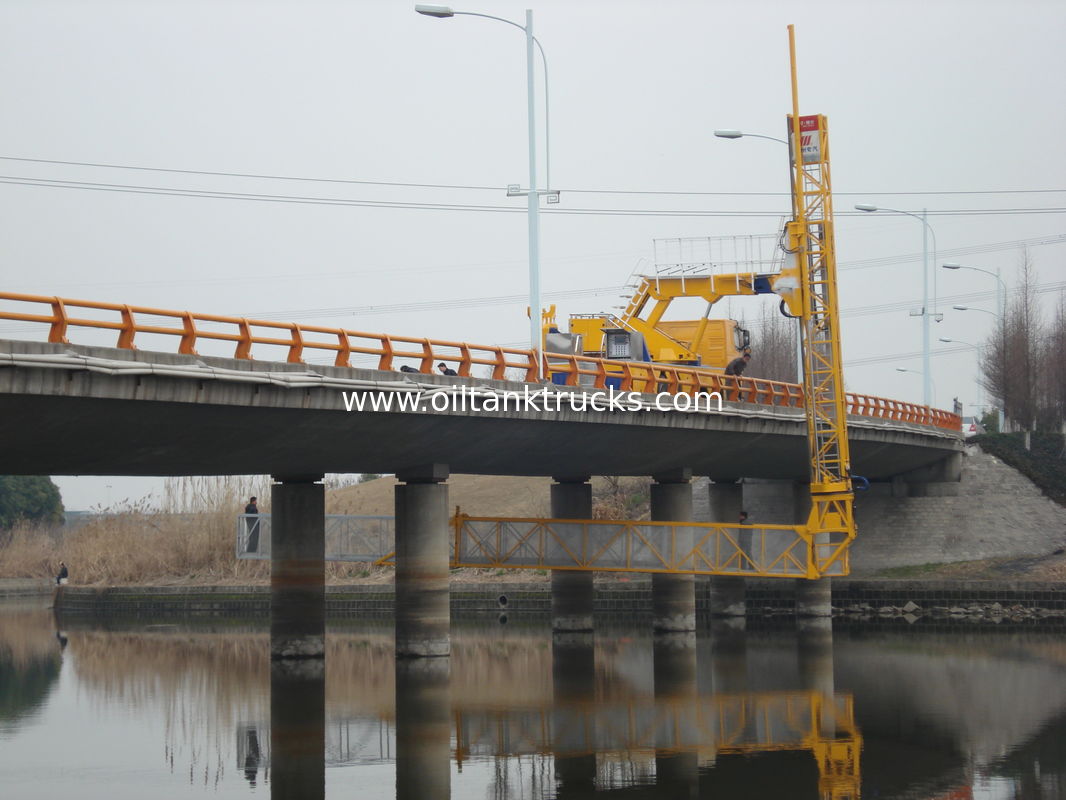

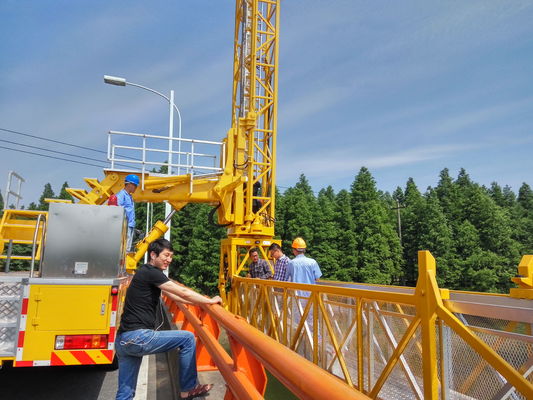

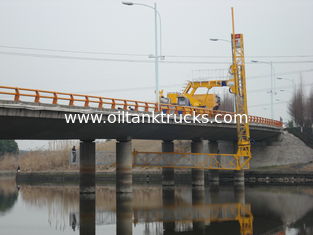

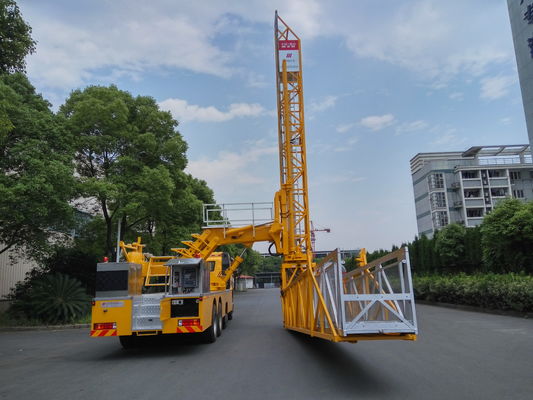

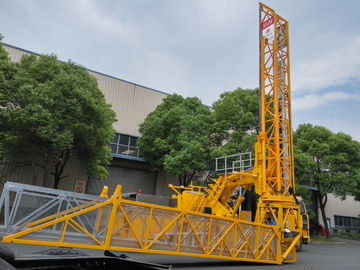

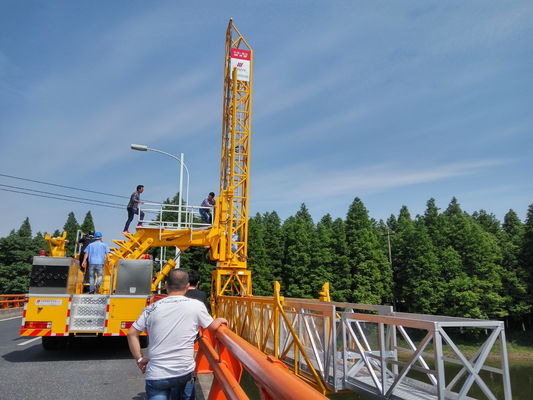

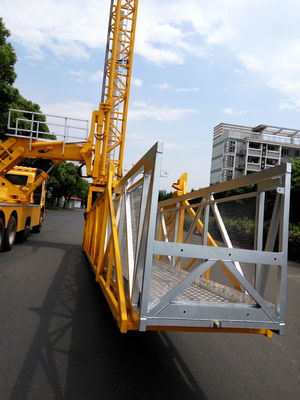

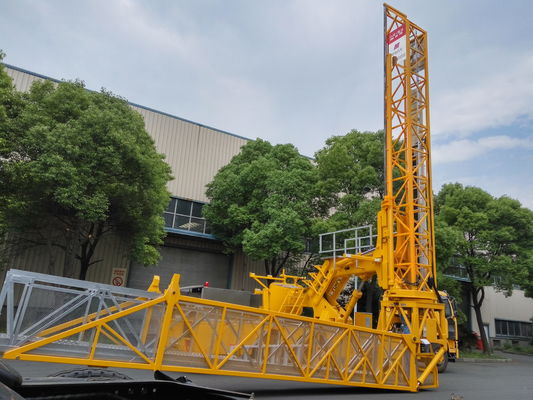

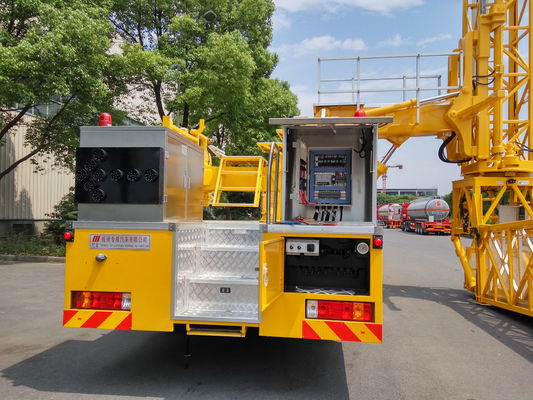

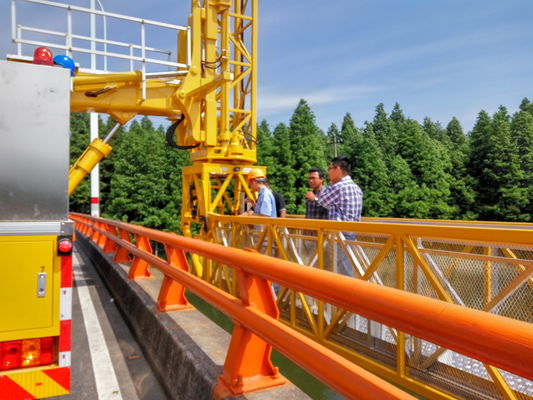

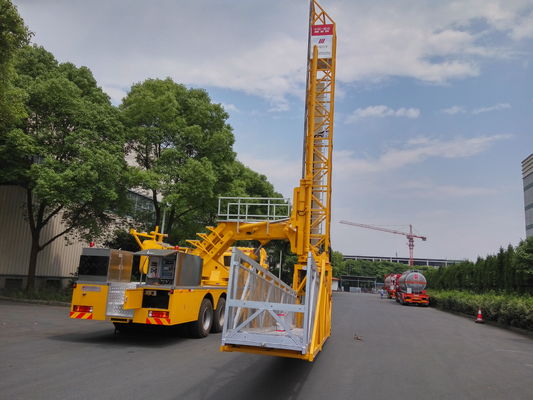

FAW Chassis National V 15+2m Aluminum Mobile Bridge Inspection Platform

FAW Chassis National V 15+2m Aluminum Mobile Bridge Inspection Platform
FAW Chassis National V 15+2m Aluminum Mobile Bridge Inspection Platform FAW Chassis National V 15+2m Aluminum Mobile Bridge Inspection Platform FAW Chassis National V 15+2m Aluminum Mobile Bridge Inspection Platform FAW Chassis National V 15+2m Aluminum Mobile Bridge Inspection Platform FAW Chassis National V 15+2m Aluminum Mobile Bridge Inspection Platform FAW Chassis National V 15+2m Aluminum Mobile Bridge Inspection Platform FAW Chassis National V 15+2m Aluminum Mobile Bridge Inspection Platform FAW Chassis National V 15+2m Aluminum Mobile Bridge Inspection Platform FAW Chassis National V 15+2m Aluminum Mobile Bridge Inspection Platform FAW Chassis National V 15+2m Aluminum Mobile Bridge Inspection Platform FAW Chassis National V 15+2m Aluminum Mobile Bridge Inspection Platform FAW Chassis National V 15+2m Aluminum Mobile Bridge Inspection Platform

Large Image :  FAW Chassis National V 15+2m Aluminum Mobile Bridge Inspection Platform

Product Details:
Place of Origin: China
Brand Name: Hongzhou
Certification: CCC
Model Number: HZZ5251JQJ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Nude
Delivery Time: 2 month
Payment Terms: T/T
Supply Ability: 100 unit per year
Detailed Product Description
Color: Yellow Size: Working Platform Length 15+2m
Material: Aluminum Application: Bridge Inspection
Span Width: 2.5m Span Height: 3.1m
High Light:

bridge inspection vehicle

,

underbridge inspection truck

,

Aluminum Mobile Bridge Inspection Platform

FAW chassis National V 15+2m aluminum platform Bridge Inspection Truck good performance safe stable



Main description:
Bridge Inspection Vehicle is the latest operating vehicle which independently developed by our company, it has nice exterior, compact structure, easy operation, safe and reliable features. It can safely and efficiently send staff and testing equipment to any location which the bridge magnitude allowed, in the meanwhile complete the work in the shortest time. It also meet the testing requirements for most different bridges.

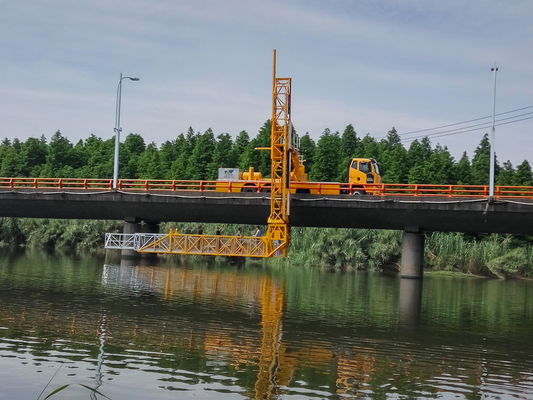

FAW Chassis National V 15+2m Aluminum Mobile Bridge Inspection Platform 0

Platform type Bridge inspection vehicle used FAW chassis, drive mode is 6 × 4, the maximum driving speed is 90km / h, maximum working speed is 10m/min, maximum operating inspection speed is 10m/min, and good view cab with air conditioning system and FM / AM radio, it is very suitable for large bridges, overpasses, approach bridges and other various types of bridge preventive inspection.



Product standard:

QCT826-2010

Bridge Inspection Vehicle

GB1589

Outer dimension, axle load and mass limit for Road vehicle

GB/T 3766

General technical conditions for hydraulic system

GB 4785

Installation rule for vehicle and exterior lighting signal

GB 7258

Safety specifications for vehicle operating on roads

GB/T 7935

General technical conditions for hydraulic component

GB/T 9969.1

Instructions on industrial products

GB 11567.1

Side protection requirements for vehicle and trailer

GB 11567.2

Rear and bottom protection requirements for vehicle and trailer

GB/T 12534

General rules of the road test method for vehicle

GB/T 18411

Product label for vehicle

JB/T 5943

General technical requirements for engineering machinery welding

QC/T 252

Type testing procedures for special vehicle

QC/T 484

Vehicle paint coating

QC/T 719

High-altitude operation vehicle

QC/T 29104

Hydraulic oil solid pollution limits for vehicle hydraulic system

QC/T 29105

Hydraulic oil solid pollution test method for vehicle hydraulic system

Main characteristic:

1. Leading Technology
It is the high-tech products which has dozens of patents for an invention and utility model patents, and developed with comprehensive facts for the bridge structure, to ensure the technology and performance of vehicle is located in the domestic and overseas leading level.


2.Optimization Chassis
Used FAW chassis, attractive appearance, strong power, huge carrying capacity, good stability, economic environment and the luxurious cab, especially for long-time work.


3.Reliable Performance
Vehicle electrical, hydraulic control systems used all imported components; Main structure parts made of imported high-strength steel, welded with imported high-strength welding wire.


4.Loading Capacity is strong
Max. load on platform is 800kg.


5.Wide range of application
Horizontal range: 8000-17000mm, Max. crossing of sound barrier: 2200mm-3100mm, Max. overbridging of sidewalk:1700-2500mm.


6.High Working Efficiently
Can be inspected the entire fan of bottom of bridge at the same time, used mechanical hydrostatic self-propelled patent technology, the operating speed is 10m/min.


7.Powerful Communication Function
Configure the video image monitoring system, enabling multi-party video intercom, platform monitoring, reverse video and other functions to ensure smooth communication.


8. With Complete Accessory
Users may need to select the individual of various types configuration to extend bridge inspection vehicle’s functions.


9.High Adaptability To Circumstance
Has a good performance in high temperatures, low temperatures, high humidity and other harsh natural environment, such as elevation of 2000m, ambient temperature -20 ℃ to +50 ℃, relative humidity 98%, wind level 6 that also can work properly.


10. Good operation performance
Equipped with imported wireless remote control(original from Germany NBB), the control distance is 100 meters.



Main specification for bridge Inspection unit:

Type  Platform type
Max. horizontal range  15+2M
Max. lowering depth  6800mm
Width of platform  1080mm

Space required on bridge

3000mm
Max. load on platform  800KG

Max. load on telescopic platform

200KG

Max. overbridging of sidewalk

2500mm

Max. crossing of sound barrier

3100mm
Rotation of platform  180°
G.V.W  25000KG
Overall dimensions  11000(L)×2500(W)×4000 (H)mm

Main specification for chassis:

Chassis Manufacturer FAW
Drive Select LHD
Model CA5250JSQP63K1L5T1E5
No. Of Axle 3
Drive Type Second axle, Third axle
Tyre 295/80 R22.5
No. Of Tyre 10
Max. speed(km/h) 90
Engine Manufacturer FAW
Engine Configuration Longitudinally set
Model CA6DK1-28E5
Type

Inline six-cylinder, four stroke, water-cooled,

Turbocharge inter-cooled diesel engine.

Displacement(mL) 7146
Fuel Type Diesel
Emission Standard Euro 5

Rated Power(kw)

/speed(r/min)

209/2300

Max. Torque(N.m)

/Speed(r/min)

1100/1200
Cab Manufacturer FAW
Type Cab over engine, tilting type with sleeper
Passengers 2 Person
Gearbox Type CA10TA
No. of Forward gears 10
Gearbox ratios

i1=14.734,i2=11.000,i3=8.166,i4=6.003,i5=4.464,

i6=3.301, i7=2.464,i8=1.830,i9=1.345,i10

Steering Steering Type Recycling Ball Integral Power Steering
Front Axle Type Integral forging, “I” shaped section



Rear Axle



Type

Rear axle for the casting bridge, the overall impact

of welding bridge shell, single-stage slowdown

Final Drive Ratio 4.875
Brake System Type Double circuit pneumatic brake system
Drive Type Foot pedal



Suspension



Front

Type Leaf spring, dependent suspension
No. of Leaf Spring 11



Rear

Type Leaf spring, dependent suspension
No. of Leaf Spring 11

Chassis:
 Chassis designed and manufactured by FAW company, used low-roof cab with nice appearance and wide vision.
 Cab optional air condition, driver’s seat can be moved front and back, back and lift height of the seat can be adjusted, the cab also can take 2 passengers.
 Instrument board configuration: Speedometer, water temperature, fuel gauge, engine speed recorder,alarm indicator, gear position indicator light,turning indicator light.
 Rear axle equipped with four hydraulic cylinder for supporting wheel, supporting the chassis frame when working, to increase stability and safety for the vehicle.
 The control panel equipped with button or switch for hydraulic pump control, transfer case(retarder motor) control, walking control.

Horizontal truss :
 Horizontal truss is consists of outside and inside truss.
 Outside truss is made of high-strength steel, used advanced welding process to ensure the light weight.
 Inside truss welded by high-strength aluminum alloy, it has nice appearance and light weight, meanwhile has sufficient strength and rigidity.
 Through two supporting rollers to support inside truss to move in the rail.
The telescoping of horizontal truss through hydraulic motor drive the chain to move.
 Outside truss mounted electrical limit for inside truss to ensure the safety of control.


Vertical truss :
 Vertical truss is welded by high strength seamless torque tube profiles.
 Vertical truss using left and right guide rail structure, it has nice appearance and light weight while has sufficient strength and rigidity.
 Vertical truss using single cylinder to control telescopic, the range is 7000mm.

Overturning frame mechanism :
 The overturning frame mechanism is mainly consists of overturning frame, cylinder, related fixed shaft, slider and other components.
 The overturning frame provides telescopic slides for vertical truss, compact structure and nice appearance.
 The overturning frame using overturning cylinder to support, structural stability and work reliable.
Main boom mechanism:
 The main boom mechanism is four-link parallelogram lifting mechanism, mainly made of lifting hydraulic cylinder, connecting rod, main boom, pin and other components..
 Lifting hydraulic cylinder equipped with hydraulic lock, to ensure that when the hydraulic pipe happen burst accident the main boom and other mechanism do not fall.
 The connecting rod welded by high strength plate, strength safety factor higher to ensure the safety of the main boom lift and down.

Second rotating platform mechanism:
 It is the rotating control mechanism for horizontal truss, is mainly made of slewing reducer,slewing bearing, small turntable, pin and other components.
 Slewing reducer equipped with rotary cushion valve to ensure the safety at work; When happen the hydraulic pipe burst accident that the rotating mechanism is automatically locked.
 Small turntable welded by high strength steel plate, high strength safety factor to ensure the safety of horizontal truss in the working process.

First rotating mechanism:
 The first rotating mechanism to provide support for whole truss, is mainly composed of first rotating cylinder, slewing bearing, large turntable, pin and other components.
 First rotating cylinder equipped with balancing valves to ensure when happen the hydraulic pipe burst accident that the first rotating mechanism is automatically locked.
 Large turntable welded by high strength steel plate, high strength safety factor to ensure the safety of whole truss in the working process.
 The first rotating mechanism equipped with electrical limit ensure the safety for whole operation progress, to prevent misuse.

Control mode:
Three control modes: Remote control, panel, manual, all can control the related action of the vehicle.
 Three control modes can be quickly switched and also can be interlocked.
 Three control modes has indicator lights to indicate the function, easy to operate.
Hydraulic system:
 It is consists of hydraulic pump, hydraulic motor, lifting hydraulic cylinder, telescopic hydraulic cylinder, supporting wheel cylinder, hydraulic valve and hydraulic accessories.
 Hydraulic pipelines using ferrule-type compression joint and precision seamless steel tubes.
 Hydraulic valves using WALVOIL(Italy) and HAWE(Germany) brand.
 Hydraulic pump using HAWE(Germany) brand.

Electrical system:
Controller: EPEC(Finland)
Display screen: ESA(Italy)
Electric switch: SCHNEIDER(France)
Electrical system using DC 24V.
Proximity switch using inductive and photoelectric.
It has self-diagnostic function.
It has parameters auto-recovery function.

Lighting device:
 Vertical truss mounted lights which used for night work.
 Equipped strobe lights and arrow indicator which used for working alarm indication.
Headlight assembly and taillights assembly(High beam light/turn light/reversing light/stop light/outline marker lamps)

Safety protection device:
 Display has hydraulic oil filter warning light, when the oil filter is blocked that the indicator lights, then should be clean or replace the filter.
 Equipped the supporting wheel position indicator, when the supporting wheel are not in position so can’t allowed to operate the truss; The operator can’t drive when the supporting wheel has not retracted fully.
 The fixed place of the vertical truss and horizontal truss installed tubular cushion rubber anti-collision devices.
 Each proximity switch installed on supporting frame of main boom and truss gantry, when the truss retract not in position that the supporting wheel can’t retract.
 At the front and rear of vehicle are installed the tow hooks to pull forward or backward, it used in the engine and transmission failure and malfunction.
 Equipped with reversing buzzer(BB sound) warning device.
 Instrument panel equipped with parking brake indicator(P).
 The supporting wheel equipped with protective circle which made of rubber to protect the operator’s feet are not crushed.
 Equipped with vertical truss mechanical locking device to prevent accidental landing when a failure happens for hydraulic cylinder, to ensure the safety of operator.
 The action sequence with a circuit interlock function.
 When main oil pump happen failure, use the emergency pump can realize the operation for the bridge inspection vehicle.

Emergency operation and protection:
 All cylinders installed the hydraulic lock, it played the role of insurance.
 Equipped with emergency power and emergency pump to retract the vehicle in emergency situations, to ensure the vehicle promptly evacuated.
 Press the emergency stop switch in case of emergency, all hydraulic actions immediately stop and engine also stop.
 Rear axle installed four stabilizer cylinders, stable the spring steel when working.

Manual:

Provide operation manual and maintenance manual with vehicle(Chinese version or English version.)

Label:

Control panel, all safety instructions and other signs are produced by Chinese or English version.

Standard configuration list(Main components/Imported parts/Brand pieces)

Components name

Spec./Model

Brand

Original

Proportional multi-way valve

PSL 4H1F-350-3

HAWE

Germany

Plunger pump

K60N-047LDN-A45/42

HAWE

Germany

Retarder motor

CDM222-050

POCLAIN

France

2nd rotating bearing

QWC900.25

ANNAITE

China

Slewing Reducer

RR210DSS/12.94 RR

Italy

High pressure filter

DF BN/HC140TC10

HYDAC

Germany

Multi-way valve for supporting wheel

SD5/3-P(JG3-160)

WALVOIL

Italy

Balance valve for retarder motor

A070461.02.00 HBS

Italy

Standby generator

KL3200

KOHLER

U.S.A

Emergency pump

5MCY-Y132M-4

YUFENG

China

Remoter controller

HYPRO CANOPEN NBB

Germany

Main Controller

2024(KRC-6040) EPEC

Finland

Assistant controller

2023(KRC-6030) EPEC

Finland

Tilt angle sensor

KRI-XD-360-CAN KRI

Germany

Tilt angle sensor

KRI-XD-30-CAN KRI

Germany

Display

KRH-5110/24V/CAN ESA

Italy

Drawing for outer dimensions(Front, side and working state side)

FAW Chassis National V 15+2m Aluminum Mobile Bridge Inspection Platform 1FAW Chassis National V 15+2m Aluminum Mobile Bridge Inspection Platform 2

Optional Equipment:



No.

Equipment name

Optional range

Performance specification

Remark

1

Control mode

Manual/Panel/Remote

Can choose all or one or two of them.

To be clear before ordering.

2



Chassis

VOLVO, BENZ, INTERNATIONAL,

DONGFENG, FAW

According to customer requirement

To be clear before ordering.

3

Lifting parapets

Imported brand or Domestic brand

According to customer requirement

To be clear before ordering.

4



Step ladder

2m/3m

According to customer requirement

To be clear before ordering.

5



Lifting platform



One layer/Two layer

According to customer requirement

To be clear before ordering.

6

Generator

3KW/5KW

Auxiliary power supply

To be clear before ordering.

7

Rest chair for staff

1 PC/2PCS

Rest for staff

To be clear before ordering.

8

Operator seat

General seat/Special seat

Rest for operator

To be clear before ordering.

9

Power control box

220V/380V/24V

Provide the power supply when working.

To be clear before ordering.

10



Drip device



50L/100L/200L, Carbon steel or Stainless steel



Supplementary the brake system to prevent the wheel hub or brake disc overheating.



To be clear before ordering.

11



Tool box



Optional



Easy storage



To be clear before ordering.



Contact Details
HANGZHOU SPECIAL AUTOMOBILE CO.,LTD

Contact Person: Serena Liu

Tel: +86-571-86875791

Send your inquiry directly to us (0 / 3000)
