Truss Material: | Stainless Steel | Color: | Red Yellow Or According To Customer Demand |
---|---|---|---|
Drive Mode: | 6*4 | Drive Speed: | The Maximum Driving Speed Is 90km / H, Maximum Working Speed Is 10m/min |
Highlight: | bridge inspection vehicle,underbridge inspection truck,16m Bridge Access Equipment |

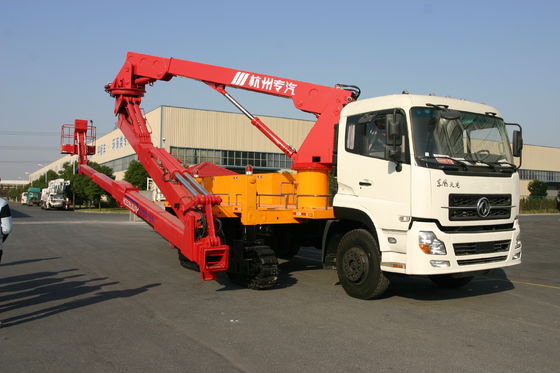

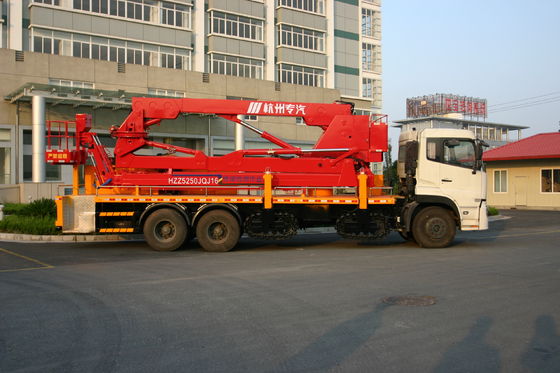

Bridge Inspection Truck under Bridge Access Detection Maintenance Equipment
1. Total Height: 16m
2. Chassis: Dongfeng
3. Engine Power: 230HP
4. Drive Type: 6x4
5. Vehicle Type: Bucket Type
6. Name: Bridge Inspection Vehicle
Bucket type is equipped with DongFeng chassis, a famous national brand. Some OEM hydraulic parts and quality components help ensure the reliable performance and long service life.

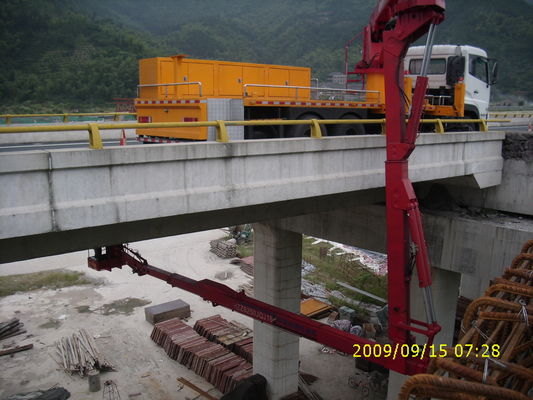

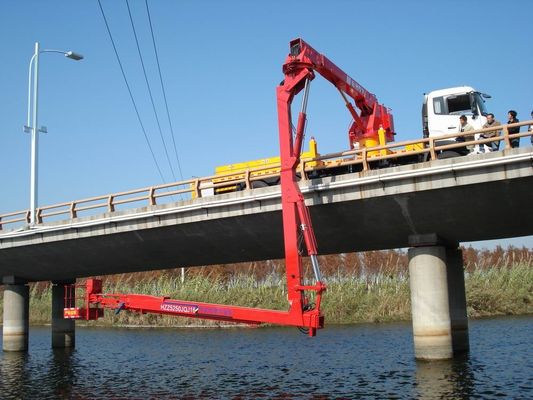

The telescopic mechanism, swing mechanism and luffing mechanism of the operating truck create a three-dimensional space. This provides the vehicle with incredible freedom of movement and also enables it to quickly and safely send staff or test equipment to any location under the bridge.
Specifications:
Model |
HZZ5240JQJ 16 |
||
Product name |
Operating vehicle for bridge detection |
||
Chassis Model |
|
||
Driver type |
6×4 |
||
Total mass |
24000(Kg) |
||
|
11240×2500×3930mm |
||
Engine model |
DONGFENG CUMMINS |
||
Engine power |
230,245,270(HP) |
||
Operating range under bridge |
0-16.41M |
||
Vertical operating range under the bridge |
0-23.3M |
||
The main arm across the width |
3-5.4M |
||
The first scope of rotation |
0-90° |
||
The second scope of rotation |
0-135° |
||
Rated load platform |
200KG |
||
Hydraulic system |
The proportion of electro-hydraulic servo systems |
||
Control system |
|||
Manual control mode |
Cable control mode |
Wireless control mode |
Vertical operating range under the bridge Operating range under bridge
Competitive Advantage:
Patented outrriger: Main arm across range average 2.5m in a nominal design which greatly increase lateral stability, prevent side-tip, makes sure operators is working at a secure condition. But in Chinese road condition almost sidewalk with bicyclepath about 4m. This protrack design can better afford the wide widthness reach, hydruclic control improve more flexible movement, reduce the sticking. Crawler drives the outrriger takes small pressure stress to ensure almost zero ground damage while operating under the bridge selfly.
