Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum Platform | Color: | Yellow |
|---|---|---|---|
| High Light: | underbridge inspection truck,bridge inspection access equipment,800kg Load Bridge Inspection Equipment |
||

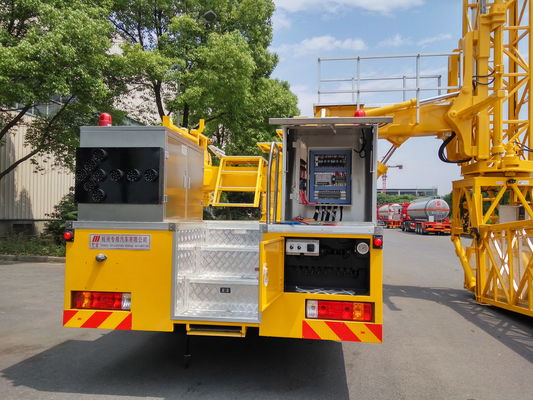

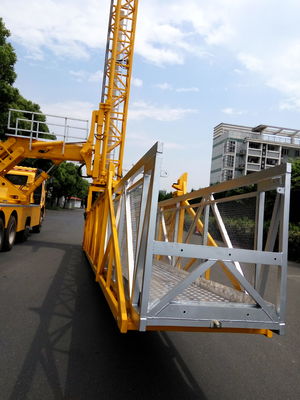

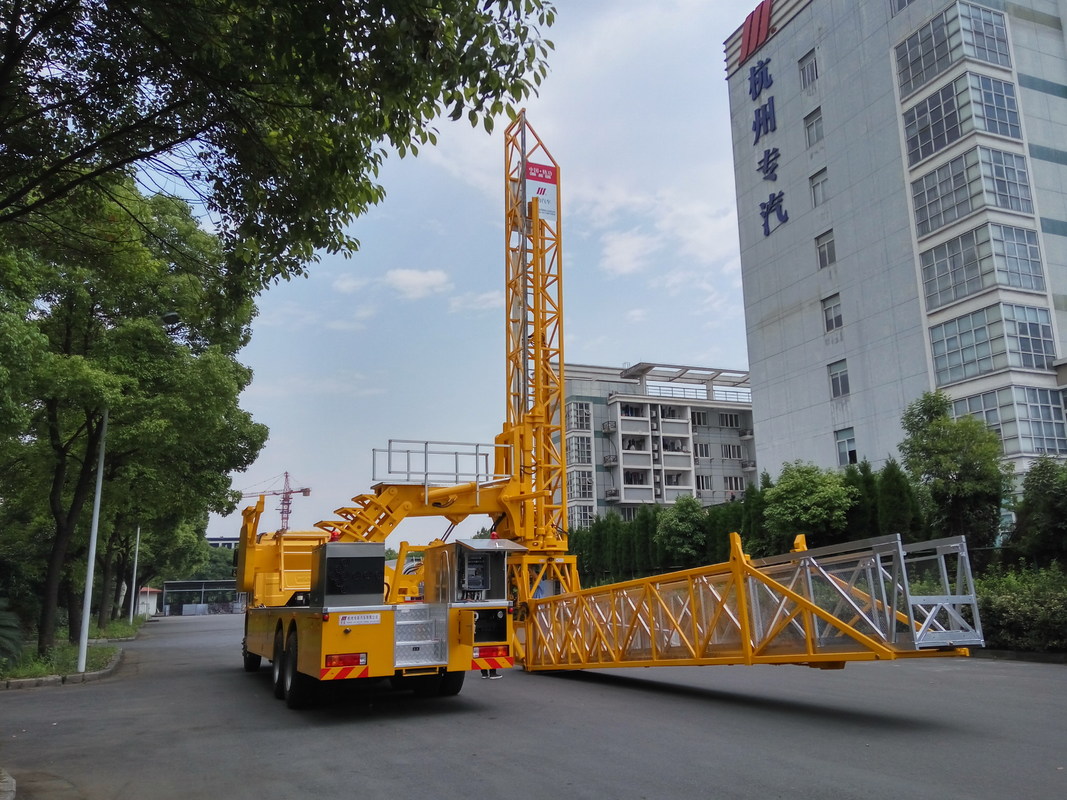

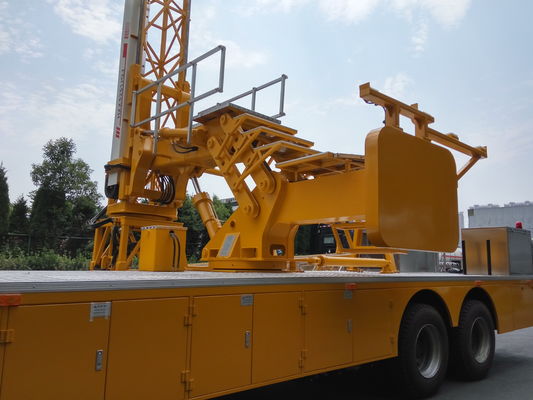

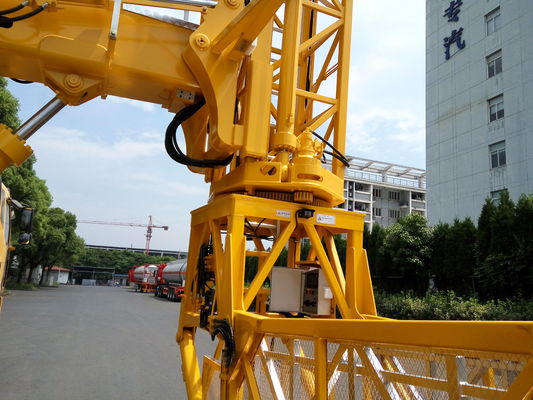

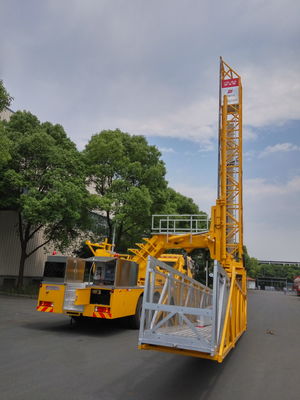

6x4 15M FAW Platform Bridge Inspection Equipment For Bridge Detection
1. Total Height: 15m
2. Chassis: FAW
3. Engine Power: 209HP
4. Drive Type: 6x4
5. Vehicle Type: Platform Type
6. Name: Bridge Inspection Vehicle
Bucket type is equipped with FAW chassis, a famous national brand. Some OEM hydraulic parts and quality components help ensure the reliable performance and long service life.
The telescopic mechanism, swing mechanism and luffing mechanism of the operating truck create a three-dimensional space. This provides the vehicle with incredible freedom of movement and also enables it to quickly and safely send staff or test equipment to any location under the bridge.
Specifications:
| Model | HZZ5251JQJ | ||
| Product name | Platform type bridge inspection vehicle | ||
| Chassis Model | |||
| Driver type | 6×4 | ||
| Total mass | 25000(Kg) | ||
Outer dimensions |
11355×2550×3990mm | ||
| Engine model | FAW CA6DK1-28E5 |
||
| Engine power | 209HP | ||
| Max. horizontal range | 0－15 | ||
| Max. lowering depth | 0－6.8M | ||
| Max. overbridging of sidewalk | 2.5M | ||
| The first scope of rotation | 0－90° | ||
| The second scope of rotation | 0－180° | ||
| Max. load on platform | 600KG | ||
| Hydraulic system | The proportion of electro-hydraulic servo systems | ||
| Control system | |||
| Manual control mode | Cable control mode | Wireless control mode | |
