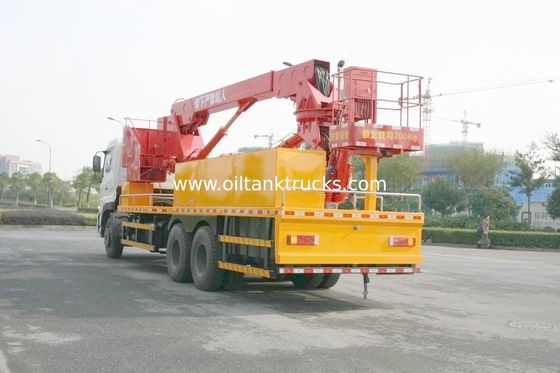

Dongfeng 6x4 16m Bucket Bridge Inspection Truck / Upground / Under Bridge Inspection Equipment

Dongfeng 6x4 16m Bucket Bridge Inspection Truck / Upground / Under Bridge Inspection Equipment
Dongfeng 6x4 16m Bucket Bridge Inspection Truck / Upground / Under Bridge Inspection Equipment Dongfeng 6x4 16m Bucket Bridge Inspection Truck / Upground / Under Bridge Inspection Equipment Dongfeng 6x4 16m Bucket Bridge Inspection Truck / Upground / Under Bridge Inspection Equipment Dongfeng 6x4 16m Bucket Bridge Inspection Truck / Upground / Under Bridge Inspection Equipment

Large Image :  Dongfeng 6x4 16m Bucket Bridge Inspection Truck / Upground / Under Bridge Inspection Equipment

Product Details:
Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ5240JQJ 16
Usage:: Garbage compression and storage
Payment & Shipping Terms:
Minimum Order Quantity: No limited
Price: negotiation
Packaging Details: Naked
Delivery Time: 45days
Payment Terms: L/C,T/T, Western Union
Supply Ability: 2Units/Month
Port of Delivery:: Shanghai / Ningbo
Detailed Product Description
Model: HZZ5240JQJ 16 Chassis Model: DFL1250A9
Driver Type: 6×4 G.V.W.: 224000
Outer Dimensions: 11240×2500×3930mm Engine Model: DONGFENG CUMMINS ISDe230 30, ISDe245 30, ISDe270 30
Engine Power: Engine Power Rated Load Platform: 200KG
Hydraulic System: The Proportion Of Electro-hydraulic Servo Systems
High Light:

under bridge inspection truck

,

mobile bridge inspection unit

,

Bucket type bridge insepction vehicle

Dongfeng 6x4 16m Bucket upground or under Bridge Inspection Equipment , Detection Operating Vehicle

Dongfeng 6x4 16m Bucket Bridge Inspection Equipment , Detection Operating Vehicle

Quick Details:

Model:HZZ5240JQJ16
Product name:Bucket type bridge insepction vehicle
Chassis Model:DFL1250A9
Driver type:6×4
Advantage:low oil consumption, environmental design, ensure high stability



Bucket type is equipped with DongFeng chassis, a famous national brand. Some OEM hydraulic parts and quality components help ensure the reliable performance and long service life.
The telescopic mechanism, swing mechanism and luffing mechanism of the operating truck create a three-dimensional space. This provides the vehicle with incredible freedom of movement and also enables it to quickly and safely send staff or test equipment to any location under the bridge.

Specifications:

Model HZZ5240JQJ 16
Product name Bucket type bridge insepction vehicle
Chassis Model DFL1250A9
Driver type 6×4
G.V.W. 24000(Kg)

Outer dimensions
11240×2500×3930mm
Engine model DONGFENG CUMMINS
ISDe230 30, ISDe245 30, ISDe270 30
Engine power 230,245,270(HP)
Max. horizontal range 0-16.41M
Max. lowering depth 0-23.3M
Max. overbridging of sidewalk 3-5.4M
The first scope of rotation 0-90°
The second scope of rotation 0-135°
Rated load platform 300KG

Control mode Cable control mode Wireless control mode


Dongfeng 6x4 16m Bucket Bridge Inspection Equipment , Detection Operating Vehicle

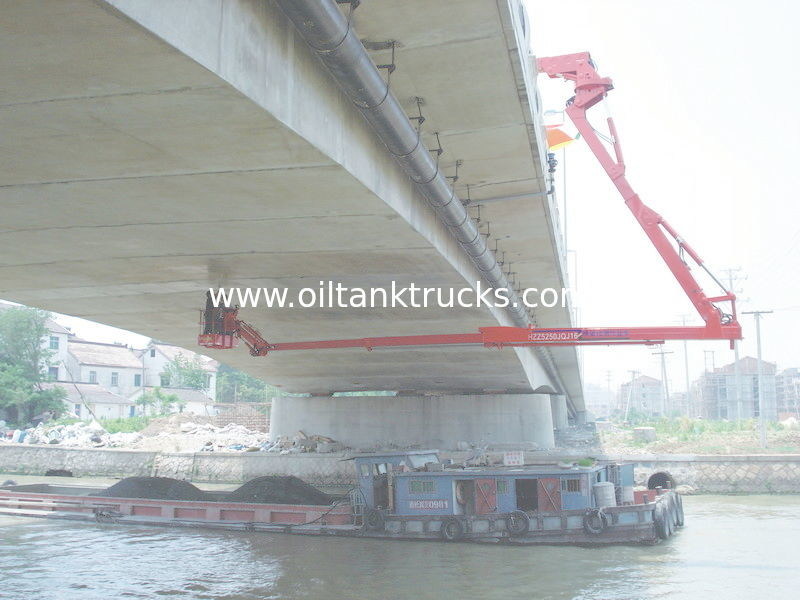

Vertical working range under bridge Horizontal working range under bridge

Competitive Advantage:
Patented outrriger: Main arm across range average 2.5m in a nominal design which greatly increase lateral stability, prevent side-tip, makes sure operators is working at a secure condition. But in Chinese road condition almost sidewalk with bicyclepath about 4m. This protrack design can better afford the wide widthness reach, hydruclic control improve more flexible movement, reduce the sticking. Crawler drives the outrriger takes small pressure stress to ensure almost zero ground damage while operating under the bridge selfly.
