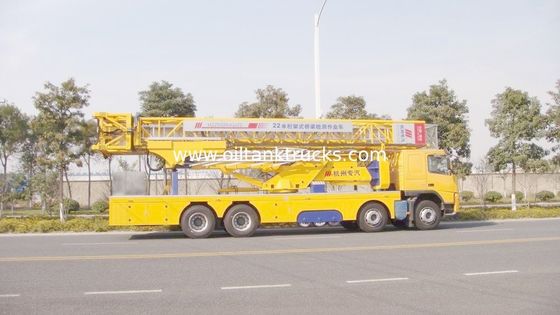

Heavy Duty 8x4 22m Under Bridge Inspection Vehicle / Vehicle Mounted Access Platforms

Heavy Duty 8x4 22m Under Bridge Inspection Vehicle / Vehicle Mounted Access Platforms
Heavy Duty 8x4 22m Under Bridge Inspection Vehicle / Vehicle Mounted Access Platforms Heavy Duty 8x4 22m Under Bridge Inspection Vehicle / Vehicle Mounted Access Platforms Heavy Duty 8x4 22m Under Bridge Inspection Vehicle / Vehicle Mounted Access Platforms Heavy Duty 8x4 22m Under Bridge Inspection Vehicle / Vehicle Mounted Access Platforms Heavy Duty 8x4 22m Under Bridge Inspection Vehicle / Vehicle Mounted Access Platforms

Large Image :  Heavy Duty 8x4 22m Under Bridge Inspection Vehicle / Vehicle Mounted Access Platforms

Product Details:
Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ5320JQJ22
Payment & Shipping Terms:
Minimum Order Quantity: No limited
Price: negotiation
Packaging Details: Naked
Delivery Time: 90days
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 2Units/Month
Port of Delivery:: Shanghai/Ningbo
Detailed Product Description
MAX LOAD: 800KG MAX LOAD OF FRONT END: 400KG
OPERATING RANGE UNDER BRIDGE(TOTAL):: Machanical Hydrostatic Transmission MAX SPEED: 85KM/H
THE MAIN ARM ACROSS WIDTH: 2000~3800mm VERTICAL OPERATING RANGE UNDER BRIDGE: 6350MM
G.V.W.: 38000KG TYPE: HZZ5320JQJ22V
High Light:

bridge inspection access equipment

,

bridge inspection machine

,

22m Under Bridge Inspection Vehicle

Heavy Duty Bridge Inspection Equipment 8x4 , 22m Under Bridge Access Platform type bridge inspection vehicle

Heavy Duty Bridge Inspection Equipment 8x4 , 22m Under Bridge Access Platforms





Quick Details:



Model:HZZ5320JQJ22

Product name:Platform type Bridge Inspection Vehicle

Chassis Model:VOLVO FM400 8X4

Driver type:8×4

Advantage:low oil consumption, environmental design, ensure high stability





Three hydraulic section with broader extension, rotary platform, luffing machanism together created a three-dimensional folding, much more suit for those flyovers, long-span, approach heavy duty bridges.Bridge Inspection Truck: The operating truck for bridge detection, as its name suggests, is designed to help detect the performance and reliability of a bridge. Reasonable structure, simple operation, more safety design. The new platform design has imporve much reliability and stability. Much safety for sending the operator into any location of the bridges. The new developed product with it’s own exported chassis and some OEM components, such as US POCLAIN amble motor, US KOHLAR emergency power supply, Germany “HAWE” Mutiple Valve, Italy “WOLFF” valve etc. greatly increase the service life, easy maintenance.

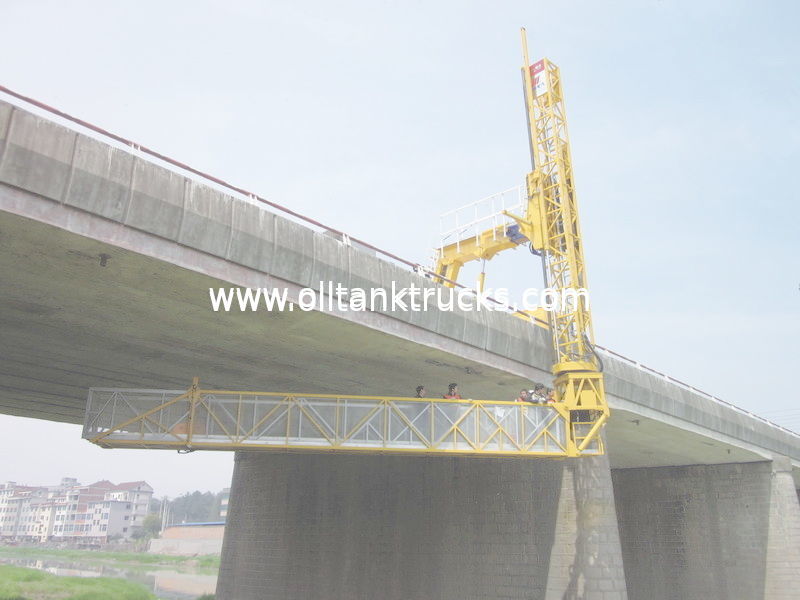

It is also able to run in extremely worse environments, even on the elevation 2000m, 98% high humidity weather, and 6 Class land wind. The design of the platform with much broader detection range between 12m to 22m and 1.1m width appers more secure working conditions.





Specifications:



TYPE HZZ5320JQJ22
NAME Platform type Bridge Inspection Vehicle
CHASSIS TYPE VOLVO FM400 8X4
G.V.W. 38000KG
OUTER DIMENSION 12420X4000X2500
MAX SPEED 85KM/H
HYDRAULIC SYSTEM
SELF-WALK PART Electro-hydraulic proportional servo system
OPERATING RANGE UNDER BRIDGE(TOTAL) Machanical hydrostatic transmission
MAX. HORIZONTAL RANGE(EFFECTIVE) 21000mm
MAX. OVERBRIDGING OF SIDEWALK 2000~3800mm
MAX. CROSSING OF SOUND BARRIER 3500mm
MAX. LOAD ON PLATFORM 800KG
MAX. LOAD ON TELESCOPIC PLATFORM 400KG
MAX. LOWERING DEPTH 6350mm
THE SINGLE BOOM ACROSS RANGE 7M
FIRST SCOPE OF ROTATION 0~90°
SECOND SCOPE OF ROTATION 0~180°
BALANCER 3.5T,5T Movable balancer, fixed balancer
OPERATING RANGE FOR MOVBLE BALANCER 950MM
ADDITIONAL STABLER FOR THE REAR AXLE Oil cylinder
CONTROL SYSTEM Wired/wireless/manual
RESERVE POWER US kohler generator





Competitive Advantage:



  1. Imported VOLVO Chassis, with 390HP large engine power, Euro IV. Has more merits as: low oil consumption, environmental design, ensure high stability.
  2. Air suspension system can adjust the chasis height automaticly, highly increase the stability for such a pot hole ground.
  3. Hydrostatic drive, highly achieved secure in slope and wet road conditions.
  4. Those hydraulic steering wheel system, greatly balance the widthness while operating.
  5. Two sets of control system on platform either into the control box respectively, allows the operator monitor safety.
  6. The hydraulic synchronous interlock device, intercom system, safty lock valve to ensure the safty handing.
  7. US Kohler emergency power supply, able to achieve the folding reset, in case the engine doesn' attent well.
  8. Max. platform payload is 600kg (can affordable 6-7 operators), the tail of the platform payload is about 250kg. The extendable folding platform can be adjustable luffing from 2-4meter, greatly imporve the inspection area under the bridge.
  9. High strength steel platform frame provide more stability which able to rotate 180°under the bridge, and also keep the limitation of max. drop height for 7meter only.
