HANGZHOU SPECIAL AUTOMOBILE CO.,LTD
Home ProductsUnder Bridge Inspection Vehicle

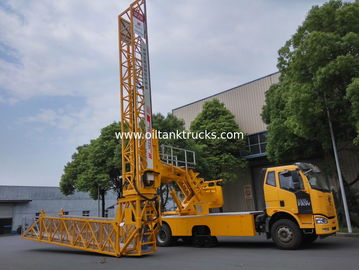

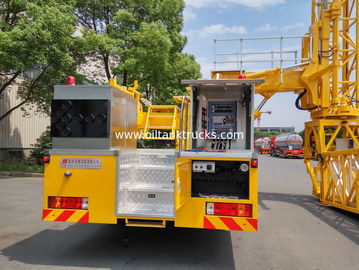

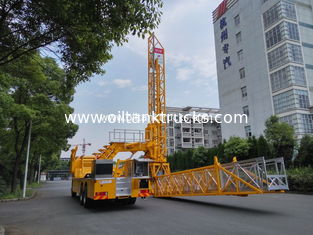

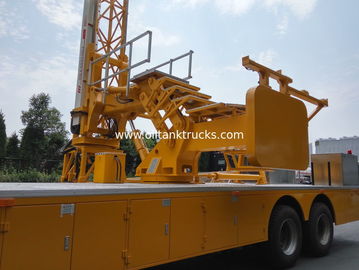

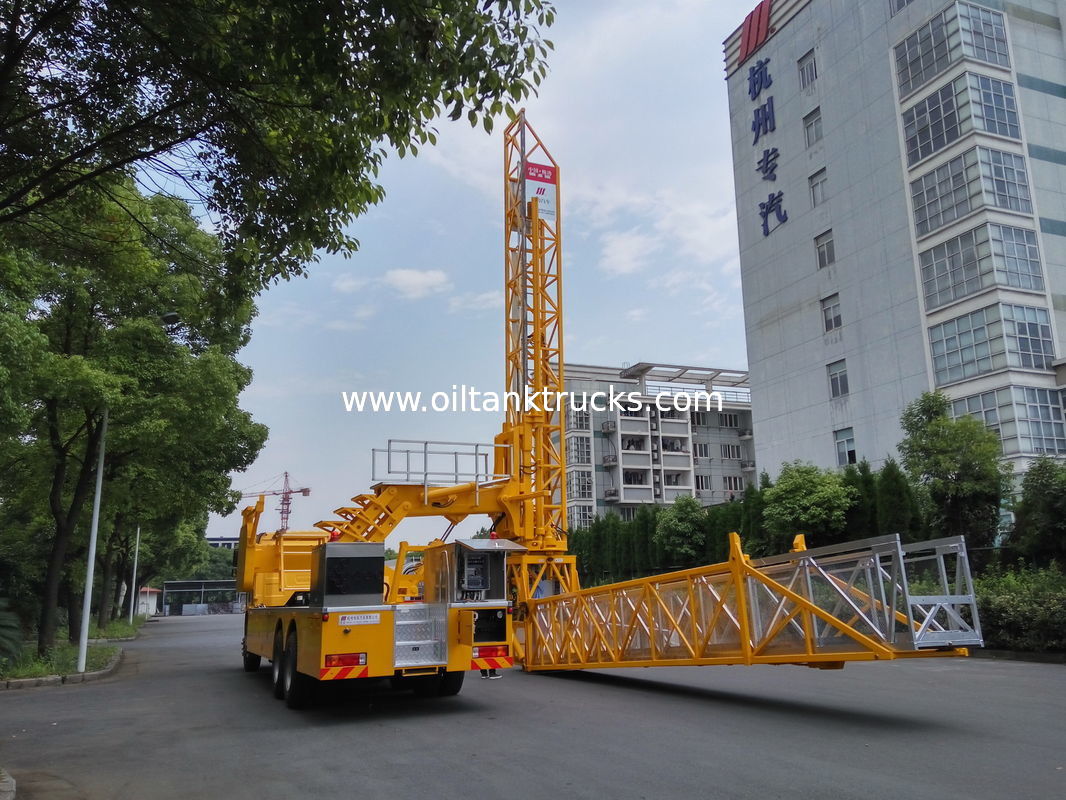

15m Aluminum Platform Under Bridge Inspection Vehicle / Inspection Access Equipment 800kg Load

China HANGZHOU SPECIAL AUTOMOBILE CO.,LTD certification
China HANGZHOU SPECIAL AUTOMOBILE CO.,LTD certification
Good quality and reasonable price. Wish your company business better and better.

—— Micheal

Nice service will get nice achievement, come on guys!

—— John

I'm Online Chat Now

15m Aluminum Platform Under Bridge Inspection Vehicle / Inspection Access Equipment 800kg Load

15m Aluminum Platform Under Bridge Inspection Vehicle / Inspection Access Equipment 800kg Load
15m Aluminum Platform Under Bridge Inspection Vehicle / Inspection Access Equipment 800kg Load 15m Aluminum Platform Under Bridge Inspection Vehicle / Inspection Access Equipment 800kg Load 15m Aluminum Platform Under Bridge Inspection Vehicle / Inspection Access Equipment 800kg Load 15m Aluminum Platform Under Bridge Inspection Vehicle / Inspection Access Equipment 800kg Load

Large Image :  15m Aluminum Platform Under Bridge Inspection Vehicle / Inspection Access Equipment 800kg Load

Product Details:
Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ5251QJ
Payment & Shipping Terms:
Minimum Order Quantity: No limited
Price: negotiation
Packaging Details: Naked
Delivery Time: 90days
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 100Units/year
Port of Delivery:: Shanghai/Ningbo
Detailed Product Description
Materia: Aluminum Platform Color: Yellow
Overbridge Sidewalk: 2.5m Crossing Sound Barrier Height: 3.1m
Total Weight: 25ton
High Light:

bridge inspection access equipment

,

under bridge platform

,

Aluminum Under Bridge Inspection Vehicle

15m aluminum platform type bridge inspection access equipment 800kg load

6x4 15M FAW chassis Platform type Bridge Inspection Equipment For Bridge Detection

1. Total Height: 15m
2. Chassis: FAW
3. Engine Power: 209HP
4. Drive Type: 6x4
5. Vehicle Type: Platform Type
6. Name: Bridge Inspection Vehicle

Bucket type is equipped with FAW chassis, a famous national brand. Some OEM hydraulic parts and quality components help ensure the reliable performance and long service life.
The telescopic mechanism, swing mechanism and luffing mechanism of the operating truck create a three-dimensional space. This provides the vehicle with incredible freedom of movement and also enables it to quickly and safely send staff or test equipment to any location under the bridge.

Specifications:

Model HZZ5251JQJ
Product name Platform type bridge inspection vehicle
Chassis Model
Driver type 6×4
Total mass 25000(Kg)

Outer dimensions
11355×2550×3990mm
Engine model FAW CA6DK1-28E5
Engine power 209HP
Max. horizontal range 0-15
Max. lowering depth 0-6.8M
Max. overbridging of sidewalk 2.5M
The first scope of rotation 0-90°
The second scope of rotation 0-180°
Max. load on platform 600KG
Hydraulic system The proportion of electro-hydraulic servo systems
Control system
Manual control mode Cable control mode Wireless control mode

15m aluminum platform 800kg load bridge inspection access equipment
