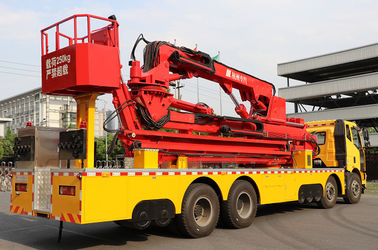

FAW 8*4 Euro 5 Bucket Type Bridge Inspection Trucks easy access to any position underbridge

China FAW 8*4 Euro 5  Bucket Type  Bridge Inspection Trucks  easy access to any position underbridge supplier
FAW 8*4 Euro 5  Bucket Type  Bridge Inspection Trucks  easy access to any position underbridge supplier FAW 8*4 Euro 5  Bucket Type  Bridge Inspection Trucks  easy access to any position underbridge supplier FAW 8*4 Euro 5  Bucket Type  Bridge Inspection Trucks  easy access to any position underbridge supplier

Large Image :  FAW 8*4 Euro 5 Bucket Type Bridge Inspection Trucks easy access to any position underbridge

Product Details:

Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ5311JQJDF

Payment & Shipping Terms:

Minimum Order Quantity: No limited
Price: negotiation
Packaging Details: Naked
Delivery Time: 90days
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 100units per year
Port of Delivery:: Shanghai/Ningbo
Contact Now
Detailed Product Description
MAX LOAD: 250KG MAX SPEED: 85KM/H
OUTER DIMENSION: 12150X3990X2500 TOTAL MASS: 31000KG
Color: Red Or As Customer Demand Materail: Steel Structure

FAW 8*4 Euro 5  Bucket Type  Bridge Inspection Trucks  easy access to any position underbridge



18m Bucket type Bridge Inspection vehicle Easy Access Easy Operation Safety and stable

8x4 18M Dongfeng Bucket Bridge Inspection Equipment For Bridge Detection , DFH1310A1

1. Total Height: 18m
2. Chassis: FAW
3. Engine Power: 232KW
4. Drive Type: 8x4
5. Vehicle Type: Bucket Type
6. Name: Bridge Inspection Vehicle

Bucket type is equipped with DongFeng chassis, a famous national brand. Some OEM hydraulic parts and quality components help ensure the reliable performance and long service life.

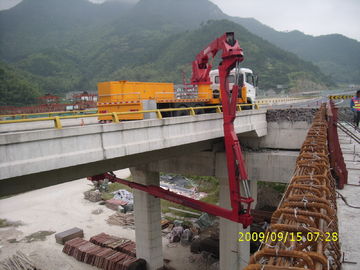

The telescopic mechanism, swing mechanism and luffing mechanism of the operating truck create a three-dimensional space. This provides the vehicle with incredible freedom of movement and also enables it to quickly and safely send staff or test equipment to any location under the bridge.

Specifications:

Model HZZ5311JQJ JF
Product name Bucket type bridge inspection vehicle
Chassis Model
Driver type 8×4
Total mass 31000(Kg)

Outer dimensions
12150×2500×3990mm
Engine model FAW CA6DK1-32E5
Engine power 239KW
Max. horizontal range 0-18.0M
Max. lowering depth 0-21.7M
Max. overbridging of sidewalk 5.2M
The first scope of rotation 0-90°
The second scope of rotation 0-180°
Max. load on platform 250KG
Hydraulic system The proportion of electro-hydraulic servo systems
Control system
Manual control mode Cable control mode Wireless control mode

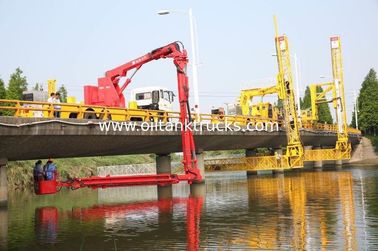

Vertical working range under bridge Horizontal workingrange under bridge

6x4 16M Dongfeng Bucket Bridge Inspection Equipment For Bridge Detection , DFL1250A9


Competitive Advantage:
Patented outrriger: Main arm across range average 2.5m in a norminal design which greatly increase lateral stability, prevent side-tip, make sure operators work at a secure condition. In China, most sidewalk with bicyclepath at about 4m. This protrack design can better afford the wide widthness reach, hydruclic control improve more flexible movement, reduce the sticking. Craw of the outrriger takes small pressure stress to ensure almost zero ground damage while operating under the bridge.
