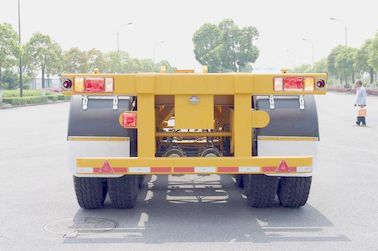

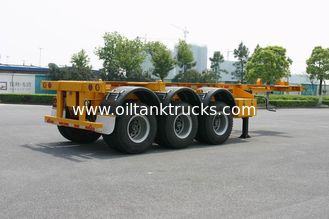

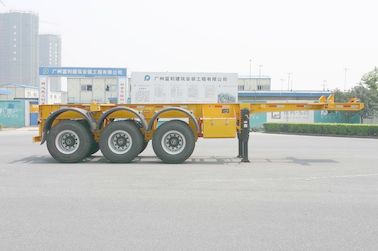

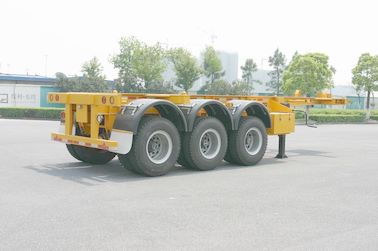

ISO Skeletal or Flatbed type Tank Container Trailer Chassis 40ft / Semi-Trailer

China ISO Skeletal or Flatbed type Tank Container Trailer Chassis 40ft / Semi-Trailer supplier
ISO Skeletal or Flatbed type Tank Container Trailer Chassis 40ft / Semi-Trailer supplier ISO Skeletal or Flatbed type Tank Container Trailer Chassis 40ft / Semi-Trailer supplier ISO Skeletal or Flatbed type Tank Container Trailer Chassis 40ft / Semi-Trailer supplier

Large Image :  ISO Skeletal or Flatbed type Tank Container Trailer Chassis 40ft / Semi-Trailer

Product Details:

Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ9401TJZ

Payment & Shipping Terms:

Minimum Order Quantity: No limited
Price: negotiation
Packaging Details: Naked
Delivery Time: 45days
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 10 Units/Months
Port of Delivery:: Shanghai/Ningbo
Contact Now
Detailed Product Description
Product: Flat-bed Type Model: HZZ9400TJZP
Size: 40 Feet Tyre: 11.00R-20, Rail Tyre
Axle: BPW Kingpin: 50# JOST
Landing Leg: KIC Frame Material: Carbon Steel (Q345)
Container Lock: 12 Pieces Braking System: Dual Braking System
Outer Dimension (mm): 12391x2480x1585 Wheel Base (mm): 7070+1350+1350
Tare Weight (kg): 8000 Payload (kg): 32000
Total Weight (kg): 40000 Number Of Spring Steel Plate: 8/8/8
Number Of Axles: 3

ISO Skeletal or Flatbed type Tank Container Trailer Chassis 40ft / Semi-Trailer



Quick Details

  • Use: Truck Trailer
  • Type: Semi-Trailer
  • Material: Steel
  • Size: 8500x2480x1585
  • Max Payload: 35000 kg
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Hongzhou
  • Model Number: HZZ9401TJZ
  • Components: Trailer Plugs
  • Total mass (kg): 40000
  • Kerb weight (kg): 5000
  • Payload (kg): 35000
  • Wheel base (mm): 4160+1310+1310
  • Tread (Front/Rear): 1830/1830/1830



Specifications

Basic specs for container trailer:
1.Total payload:35000kg
2.Axles:Rear 3 FUWA
3.Trailer type:Skeletal container semi-trailer



Basic specs for 40ft Carbon-steel skeletal container trailer chassis (Rear 3 FUWA axles):


1. Total payload: 35000kg


2. Axles: FUWA or BPW

3. Chassis material: Carbon-steel

4. ABS System: with

5. Landing leg: JOST or KIC

6. Trailer type: Skeletal container semi-trailer

7. Chassis specs: Can load one or two standard container or tank container



Basic technical parameters of 40ft container transport semi-trailer chassis:



Purpose of this trailer

This is the special semi-trailer for TANK CONTAINERS. (with Flatbed type and Skeleton type)



Advantages

Reliable, long life and easy maintenance characteristics. In addition, in line with international maritime standards,

with self-weight light.



Others

We produced the tank container semi-trailer in accordance with the chinese standard design.



Specialfication Of Container Semi-trailer



Product Flat-bed type Skeleton type Skeleton type
Model HZZ9400TJZP HZZ9400TJZ HZZ9280TJZ
Size 40 feet 40 feet 20 feet
Tyre

11.00R-20,

Rail tyre

11.00R-20,

Rail tyre

11.00-20,

Nylon tyre

Axle BPW BPW

FUWA

(chinese brand)

Kingpin 50# JOST 50# JOST 50#JOST
Landing leg KIC KIC KIC
Frame material Carbon steel (Q345) Carbon steel (Q345) Carbon steel (Q345)
Container lock 12 pieces 12 pieces 4 pieces
Tyre holder 2 pieces 2 pieces 1 piece
Tool box 1 piece 1 piece 1 piece
Braking system Dual braking system Dual braking system Dual braking system
Outer dimension (mm) 12391x2480x1585 12390x2480x1530 7500x2480x1690
Wheel base (mm) 7070+1350+1350 7070+1350+1350 4250+1350
Tare weight (kg) 8000 6920 4250
Payload (kg) 32000 33080 24000
Total weight (kg) 40000 40000 28250
Number of spring steel plate 8/8/8 8/8/8 7/7
Number of axles 3 3 2
Number of tyre 12 12 8
