20ft Skeletal Or Flatbed Container Trailer Chassis In Truck Semi Trailer

China 20ft Skeletal Or Flatbed Container Trailer Chassis In Truck Semi Trailer supplier
20ft Skeletal Or Flatbed Container Trailer Chassis In Truck Semi Trailer supplier 20ft Skeletal Or Flatbed Container Trailer Chassis In Truck Semi Trailer supplier

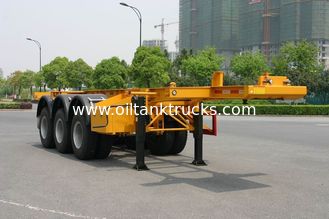

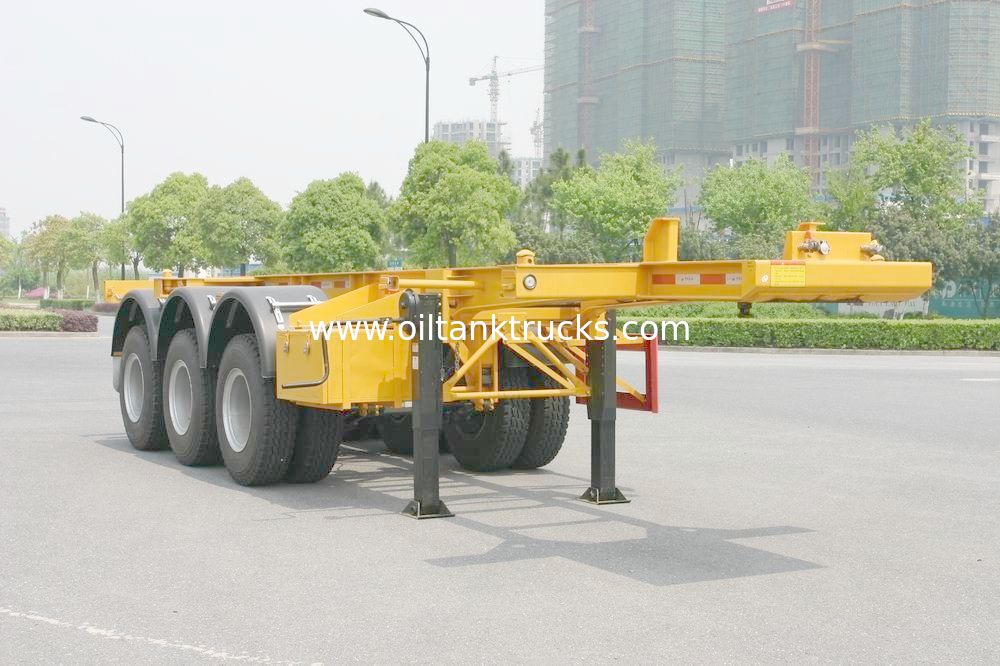

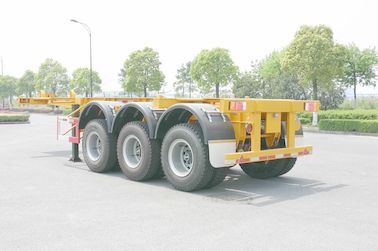

Large Image :  20ft Skeletal Or Flatbed Container Trailer Chassis In Truck Semi Trailer

Product Details:

Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ9401TJZ

Payment & Shipping Terms:

Minimum Order Quantity: No limited
Price: negotiation
Packaging Details: Naked
Delivery Time: 45days
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 10 Units/Months
Port of Delivery:: Shanghai/Ningbo
Contact Now
Detailed Product Description
Model: HZZ9401TJZ Outer Dimension(mm): 8500×2480×1585
Wheelbase (mm): 4160+1310+1310 Number Of Axle: 3
Tare Weight(Kg): 5000 Payload(Kg): 35000
Spec. Of Tyre: 11.00R20 12.00R20 Number Of Spring Steel Plate: 7/7/7

Container Trailer Chassis 20ft Skeletal Or Flatbed In Truck Semi Trailer



Quick Details:



Use: Truck Trailer
Type: Semi-Trailer
Material: Steel
Certification:ISO9001, CCC
Outer dimension(mm):8500×2480×1585
Number of Axle:3




Almost the steel spare parts are treated by shot blast before the assembling, which can greatly increase the adhesion of the paint.Sophisticated technique: Main parts of the trailer is processed with advanced equipment. The longitudinal beam is welded by a wholly automatic tracking submerged welding machine;


Widely used in such multiple road condition for types of ISO tank containers, reasonable structure, nice performance,simple operate,




Components:



1. Frame: The frame is manufacture by a 20ft Skeletal Or Flatbed Container Trailer Chassis In Truck Semi Trailer structure, which are made of high strength steel. The gooseneck design reasonably to get a balanced consideration of the intensity, rigidity and toughness, maintaining a low center of gravity , heavy loading mass, not easy to be distorted.
2. Axles: The axle can be selected in different famous brand of BPW and SAF, KIC, FUWA ect. domestic and overseas. Also, the ABS system can be optional with Haldex and WABCO etc., can be greatly increase the stability and safety.
3. Suspension system: Mechanical suspension and air suspension series optional.
a. Mechanical suspension series: It used tandem and balance construction, have high strength and strong impacting resistance, evenly distribute the axle load into each axles. High strength material keep the service life much longer and efficient buffering, simple maintenance, easy replacement for the wearing parts.
b. Air suspension system: Optional BPW & SAF. More shocking proof which combinated with lifting and steering axles.
4. Brake system: Much more safety and reliability on dual-loop air brake system.


Specifications:



Model

HZZ9401TJZ

Outer dimension(mm)

8500×2480×1585

Wheelbase (mm)

4160+1310+1310

Number of Axle

3

Tare weight(Kg)

5000

Payload(Kg)

35000

Spec. of Tyre

11.00R20

12.00R20

Number of spring steel plate

7/7/7



20ft Skeletal Or Flatbed Container Trailer Chassis In Truck Semi Trailer
