Two Axles Steel Container Trailer Chassis / 20 , 30 , 40 Foot Gooseneck Trailers

Two Axles Steel Container Trailer Chassis / 20 , 30 , 40 Foot Gooseneck Trailers
Two Axles Steel Container Trailer Chassis / 20 , 30 , 40 Foot Gooseneck Trailers Two Axles Steel Container Trailer Chassis / 20 , 30 , 40 Foot Gooseneck Trailers

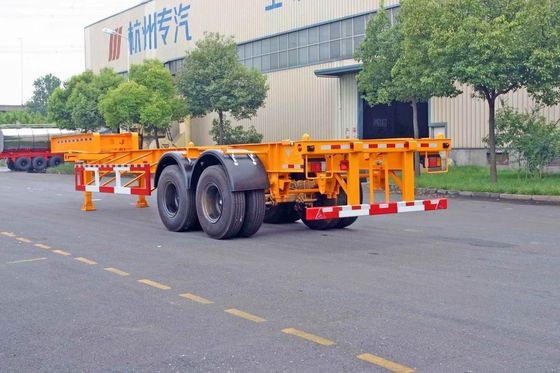

Large Image :  Two Axles Steel Container Trailer Chassis / 20 , 30 , 40 Foot Gooseneck Trailers

Product Details:
Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ9341TJZ
Payment & Shipping Terms:
Minimum Order Quantity: No limited
Price: negotiation
Packaging Details: Naked
Delivery Time: 45days
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 10 Units/Months
Port of Delivery:: Shanghai/Ningbo
Detailed Product Description
Model: HZZ9341TJZ Wheelbase (mm): 8250+1320 9050+1320
Outer Dimension(mm): 12390x2480x1585 Axle: 2 Axles
Payload(Kg): 29900 Tare Weight(Kg): 4600,5000
Spec. Of Tyre: 11.00R20 Number Of Spring Steel Plate: 8/8
High Light:

container semi trailer

,

semi trailer truck

Two Axles Steel Container Trailer Chassis / 20 , 30 , 40 Foot Gooseneck Trailers



Quick Details:



Use: Truck Trailer
Type: Semi-Trailer
Material: Steel
Certification:ISO9001, CCC
Outer dimension(mm):12390×2480×1585
Number of Axle:2




Widely used in such multiple road condition for types of ISO tank containers, reasonable structure, nice performance,simple operate,


Sophisticated technique: Main parts of the trailer is processed with advanced equipment. The longitudinal beam is welded by a wholly automatic tracking submerged welding machine; Almost the steel spare parts are treated by shot blast before the assembling, which can greatly increase the adhesion of the paint.


Aplications:


1. Frame: The frame is manufacture by a Two Axles Steel Container Trailer Chassis / 20 , 30 , 40 Foot Gooseneck Trailers 0 structure, which are made of high strength steel. The gooseneck design reasonably to get a balanced consideration of the intensity, rigidity and toughness, maintaining a low center of gravity , heavy loading mass, not easy to be distorted.
2. Axles: The axle can be selected in different famous brand of BPW and SAF, KIC, FUWA ect. domestic and overseas. Also, the ABS system can be optional with Haldex and WABCO etc., can be greatly increase the stability and safety.
3. Suspension system: Mechanical suspension and air suspension series optional.
a. Mechanical suspension series: It used tandem and balance construction, have high strength and strong impacting resistance, evenly distribute the axle load into each axles. High strength material keep the service life much longer and efficient buffering, simple maintenance, easy replacement for the wearing parts.
b. Air suspension system: Optional BPW & SAF. More shocking proof which combinated with lifting and steering axles.
4. Brake system: Much more safety and reliability on dual-loop air brake system.


Specifications:



Model

HZZ9341TJZ

Outer dimension(mm)

10940,12500×2490×1750

Wheelbase (mm)

8250+1320

9050+1320

Number of Axle

2

Tare weight(Kg)

4600,5000

Payload(Kg)

29900,29500

Spec. of Tyre

11.00R20

Number of spring steel plate

8/8



Two Axles Steel Container Trailer Chassis / 20 , 30 , 40 Foot Gooseneck Trailers 1
