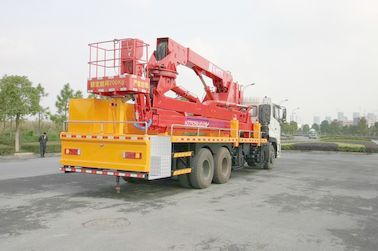

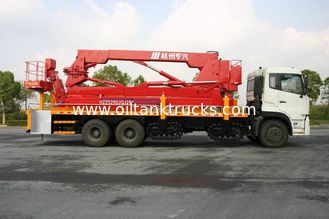

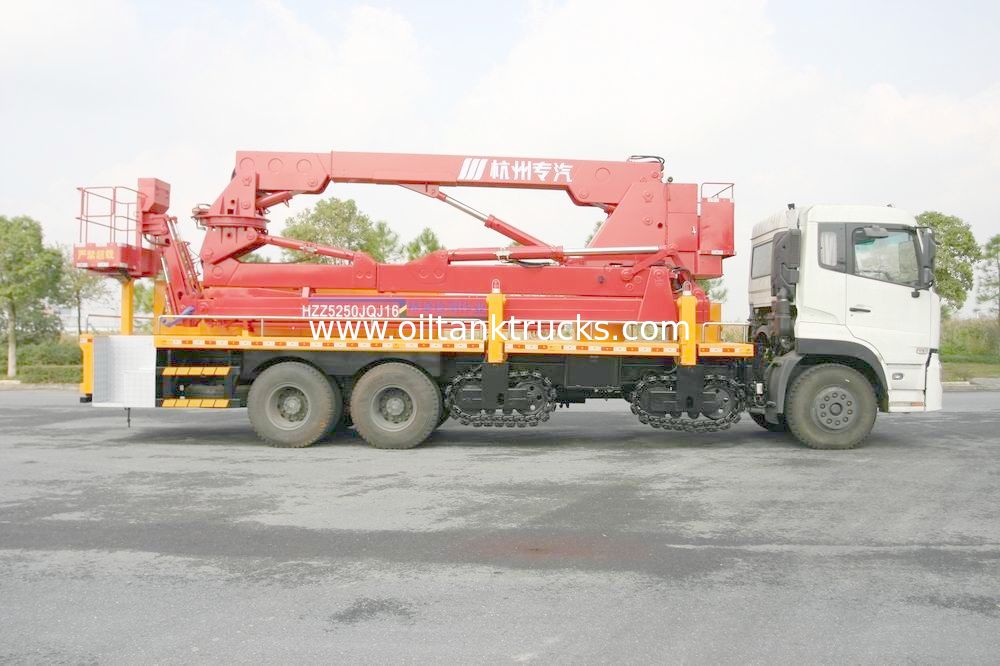

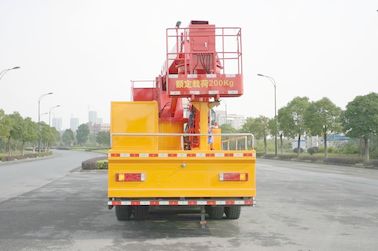

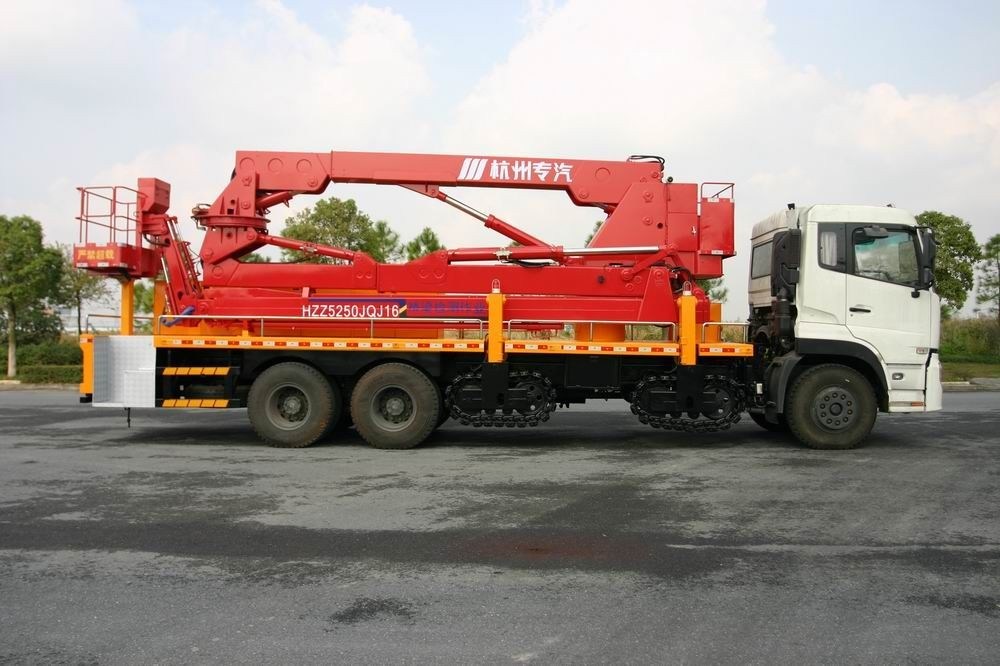

DFL1250A9 Bucket Bridge Inspection Equipment / Unit / Vehicle 6x4 HZZ5240JQJ16

China DFL1250A9 Bucket Bridge Inspection Equipment / Unit / Vehicle 6x4 HZZ5240JQJ16 supplier
DFL1250A9 Bucket Bridge Inspection Equipment / Unit / Vehicle 6x4 HZZ5240JQJ16 supplier DFL1250A9 Bucket Bridge Inspection Equipment / Unit / Vehicle 6x4 HZZ5240JQJ16 supplier DFL1250A9 Bucket Bridge Inspection Equipment / Unit / Vehicle 6x4 HZZ5240JQJ16 supplier

Large Image :  DFL1250A9 Bucket Bridge Inspection Equipment / Unit / Vehicle 6x4 HZZ5240JQJ16

Product Details:

Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ5240JQJ16

Payment & Shipping Terms:

Minimum Order Quantity: No limited
Price: negotiation
Packaging Details: Naked
Delivery Time: 45days
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 2Units/Month
Port of Delivery:: Shanghai/Ningbo
Contact Now
Detailed Product Description
Model:: HZZ5240JQJ 16 Chassis Model:: DFL1250A9
Driver Type:: 6×4 Certification: ISO9001, CCC



DFL1250A9 Bucket Bridge Inspection Equipment / Unit / Vehicle 6x4 HZZ5240JQJ16

Quick Details:

Model:HZZ5240JQJ 16
Product name:Operating vehicle for bridge detection
Chassis Model:DFL1250A9
Driver type:6×4
Advantage:low oil consumption, environmental design, ensure high stability.


The telescopic mechanism, swing mechanism and luffing mechanism of the operating truck create a three-dimensional space. This provides the vehicle with incredible freedom of movement and also enables it to quickly and safely send staff or test equipment to any location under the bridge.

Bucket type is equipped with DongFeng chassis, a famous national brand. Some OEM hydraulic parts and quality components help ensure the reliable performance and long service life.



Specifications:


Model

HZZ5240JQJ 16

Product name

Operating vehicle for bridge detection

Chassis Model

DFL1250A9

Driver type

6×4

Total mass

24000(Kg)


Outer dimensions

11240×2500×3930mm

Engine model

DONGFENG CUMMINS
ISDe230 30, ISDe245 30, ISDe270 30

Engine power

230,245,270(HP)

Operating range under bridge

0-16.41M

Vertical operating range under the bridge

0-23.3M

The main arm across the width

3-5.4M

The first scope of rotation

0-90°

The second scope of rotation

0-135°

Rated load platform

200KG

Hydraulic system

The proportion of electro-hydraulic servo systems

Control system

Manual control mode

Cable control mode

Wireless control mode


DFL1250A9 Bucket Bridge Inspection Equipment / Unit / Vehicle 6x4 HZZ5240JQJ16

                Vertical operating range under the bridge          Operating range under bridge

Competitive Advantage:
Patented outrriger: Main arm across range average 2.5m in a nominal design which greatly increase lateral stability, prevent side-tip, makes sure operators is working at a secure condition. But in Chinese road condition almost sidewalk with bicyclepath about 4m. This protrack design can better afford the wide widthness reach, hydruclic control improve more flexible movement, reduce the sticking. Crawler drives the outrriger takes small pressure stress to ensure almost zero ground damage while operating under the bridge selfly.
