Dongfeng 6x4 16m Bucket Bridge Inspection Equipment , Detection Operating Vehicle

China Dongfeng 6x4 16m Bucket Bridge Inspection Equipment , Detection Operating Vehicle supplier
Dongfeng 6x4 16m Bucket Bridge Inspection Equipment , Detection Operating Vehicle supplier Dongfeng 6x4 16m Bucket Bridge Inspection Equipment , Detection Operating Vehicle supplier Dongfeng 6x4 16m Bucket Bridge Inspection Equipment , Detection Operating Vehicle supplier Dongfeng 6x4 16m Bucket Bridge Inspection Equipment , Detection Operating Vehicle supplier

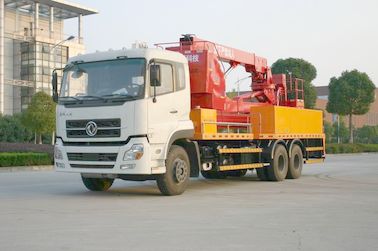

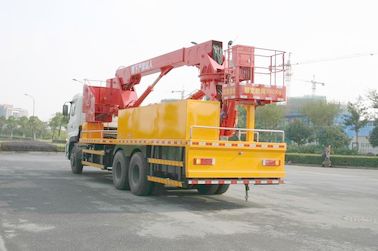

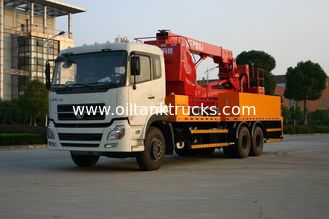

Large Image :  Dongfeng 6x4 16m Bucket Bridge Inspection Equipment , Detection Operating Vehicle

Product Details:

Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ5240JQJ16

Payment & Shipping Terms:

Minimum Order Quantity: No limited
Price: negotiation
Packaging Details: Naked
Delivery Time: 45days
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 2Units/Month
Port of Delivery:: Shanghai/Ningbo
Contact Now
Detailed Product Description
Model: HZZ5240JQJ 16 Chassis Model: DFL1250A9
Driver Type: 6×4 G.V.W.: 24000
Outer Dimensions: 11240×2500×3930mm Engine Model: DONGFENG CUMMINS ISDe230 30, ISDe245 30, ISDe270 30
Engine Power: 230,245,270(HP) Rated Load Platform: 200KG
Hydraulic System: The Proportion Of Electro-hydraulic Servo Systems

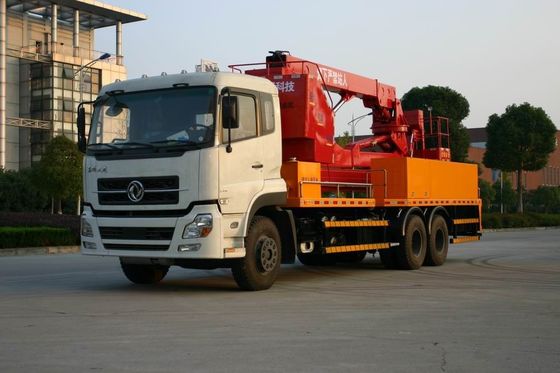

Dongfeng 6x4 16m Bucket Bridge Inspection Equipment , Detection Operating Vehicle

Quick Details:

Model:HZZ5240JQJ16
Product name:Bucket type bridge insepction vehicle
Chassis Model:DFL1250A9
Driver type:6×4
Advantage:low oil consumption, environmental design, ensure high stability



Bucket type is equipped with DongFeng chassis, a famous national brand. Some OEM hydraulic parts and quality components help ensure the reliable performance and long service life.
The telescopic mechanism, swing mechanism and luffing mechanism of the operating truck create a three-dimensional space. This provides the vehicle with incredible freedom of movement and also enables it to quickly and safely send staff or test equipment to any location under the bridge.

Specifications:

Model

HZZ5240JQJ 16

Product name

Bucket type bridge insepction vehicle

Chassis Model

DFL1250A9

Driver type

6×4

G.V.W.

24000(Kg)


Outer dimensions

11240×2500×3930mm

Engine model

DONGFENG CUMMINS
ISDe230 30, ISDe245 30, ISDe270 30

Engine power

230,245,270(HP)

Max. horizontal range

0-16.41M

Max. lowering depth

0-23.3M

Max. overbridging of sidewalk

3-5.4M

The first scope of rotation

0-90°

The second scope of rotation

0-135°

Rated load platform

300KG



Control mode

Cable control mode

Wireless control mode


Dongfeng 6x4 16m Bucket Bridge Inspection Equipment , Detection Operating Vehicle

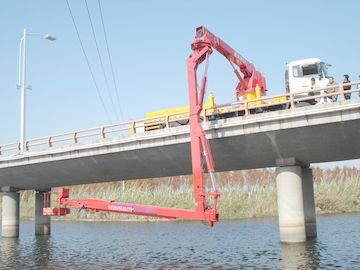

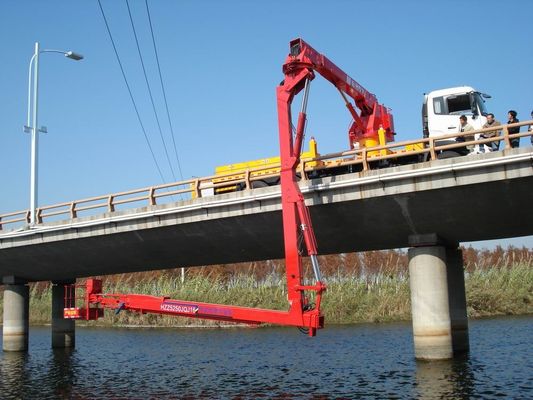

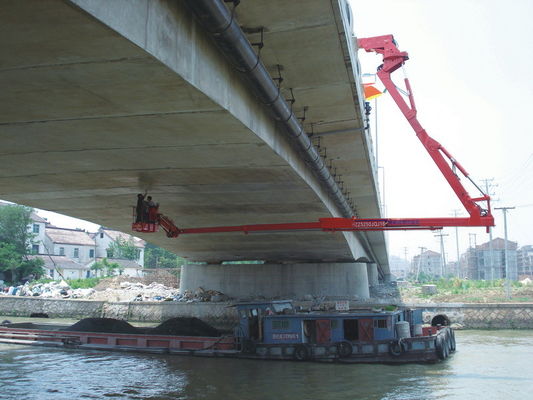

            Vertical working range under  bridge             Horizontal working range under bridge

Competitive Advantage:
Patented outrriger: Main arm across range average 2.5m in a nominal design which greatly increase lateral stability, prevent side-tip, makes sure operators is working at a secure condition. But in Chinese road condition almost sidewalk with bicyclepath about 4m. This protrack design can better afford the wide widthness reach, hydruclic control improve more flexible movement, reduce the sticking. Crawler drives the outrriger takes small pressure stress to ensure almost zero ground damage while operating under the bridge selfly.
