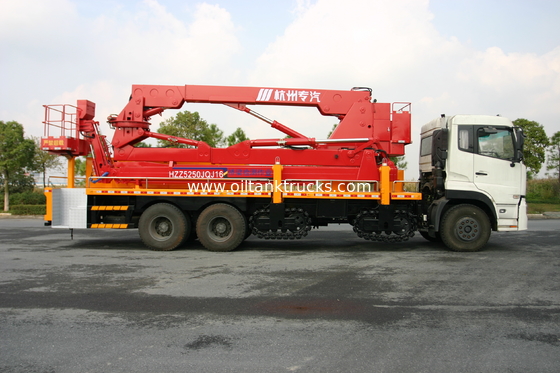

16m Dongfeng Bucket type Bridge Inspection Vehicle (HZZ5240JQJ16)

16m Dongfeng Bucket type Bridge Inspection Vehicle (HZZ5240JQJ16)
16m Dongfeng Bucket type Bridge Inspection Vehicle (HZZ5240JQJ16) 16m Dongfeng Bucket type Bridge Inspection Vehicle (HZZ5240JQJ16) 16m Dongfeng Bucket type Bridge Inspection Vehicle (HZZ5240JQJ16)

Large Image :  16m Dongfeng Bucket type Bridge Inspection Vehicle (HZZ5240JQJ16)

Product Details:
Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ5240JQJ16
Payment & Shipping Terms:
Minimum Order Quantity: No limited
Price: Negotiable
Packaging Details: Naked
Delivery Time: 45days
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 10Units/Months
Port of Delivery:: Shanghai/Ningbo
Detailed Product Description
Specification: 16m Load Of Working Basket: 250kg
Wheel Formula: 8*4 Axles: 4
Gearbox: Manual Operation Model: Remote
High Light:

underbridge inspection truck

,

bridge inspection access equipment

Our Bucket type bridge Insepction vehicle is equipped with DongFeng chassis, a famous national brand. The  hydraulic parts and quality components help ensure the reliable performance and long service life.

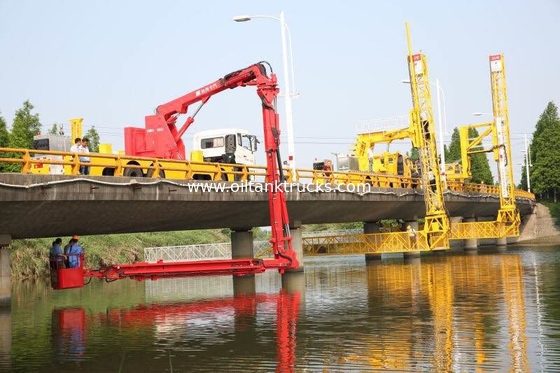

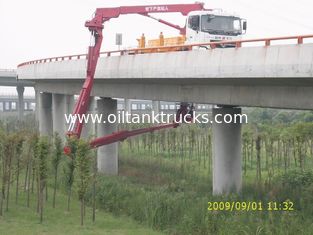

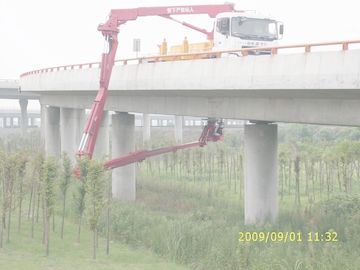

The maximum driving speed is 90km / h, maximum working speed is 10m/min, parts of hydraulic components and control components imported. The dedicated device uses first scalable, second rotating , third luffing mechanism, forming a three-dimensional space, six degrees of freedom space motion system, can safely and efficiently send staff and testing equipment to any location which the bridge magnitude allowed.



High Adaptability To Circumstance
Has a good performance in high temperatures, low temperatures, high humidity and other harsh natural environment, such as elevation of 2000m, ambient temperature -20 ℃ to +50 ℃, relative humidity 98%, wind level 6 that also can work properly.



Specifications:



Model

HZZ5240JQJ 16

Product name

Operating vehicle for bridge detection

Chassis Model

DFL1250A9

Driver type

6×4

Total mass

24000(Kg)



Outer dimensions

11240×2500×3930mm

Engine model

DONGFENG CUMMINS

ISDe230 30, ISDe245 30, ISDe270 30

Engine power

230,245,270(HP)

Operating range under bridge

0-16.41M

Vertical operating range under the bridge

0-23.3M

The main arm across the width

3-5.4M

The first scope of rotation

0-90°

The second scope of rotation

0-135°

Rated load platform

200KG

Hydraulic system

The proportion of electro-hydraulic servo systems

Control system

Manual control mode

Cable control mode

Wireless control mode

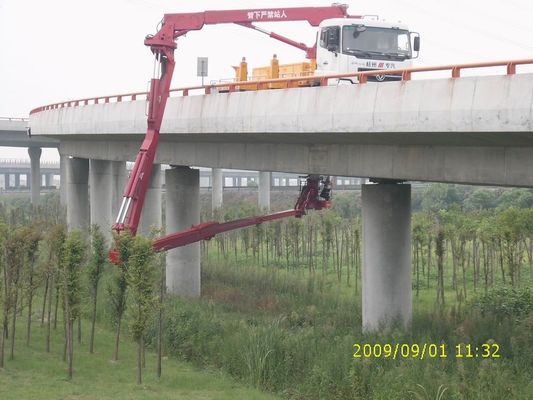

16m Dongfeng Bucket type Bridge Inspection Vehicle (HZZ5240JQJ16) 0



                Vertical operating range under the bridge          Operating range under bridge
