HANGZHOU SPECIAL AUTOMOBILE CO.,LTD
Home ProductsConcrete Pump Trucks

6X4 ISUZU Concrete Pump Trucks 37m Truck-mounted Concrete Delivery Pump

China HANGZHOU SPECIAL AUTOMOBILE CO.,LTD certification
China HANGZHOU SPECIAL AUTOMOBILE CO.,LTD certification
Good quality and reasonable price. Wish your company business better and better.

—— Micheal

Nice service will get nice achievement, come on guys!

—— John

I'm Online Chat Now

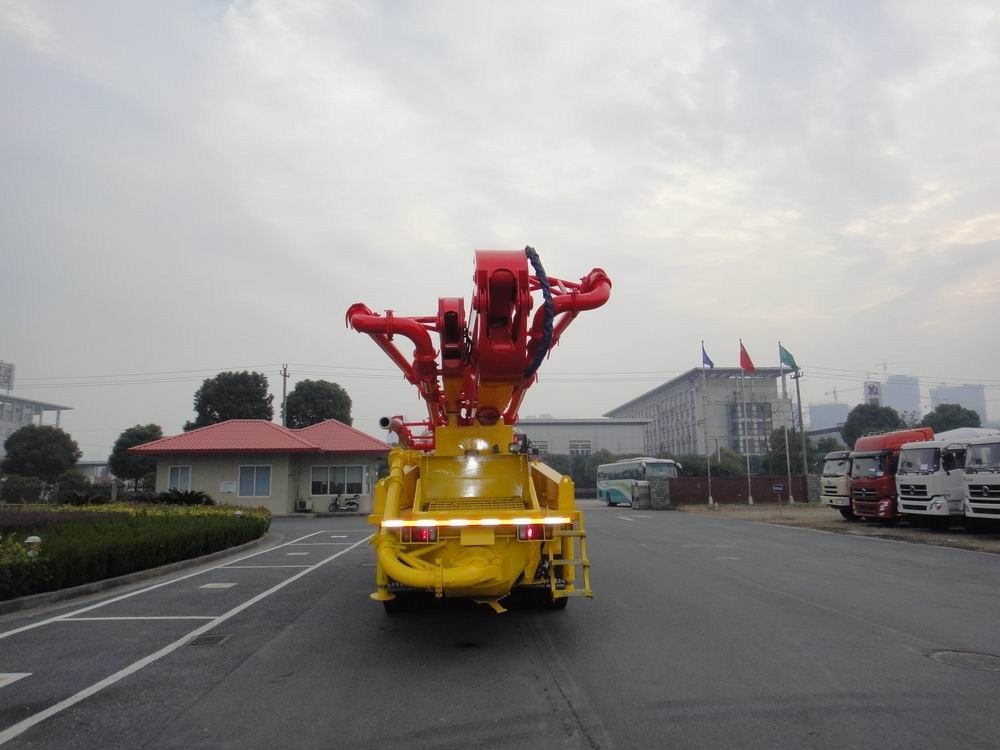

6X4 ISUZU Concrete Pump Trucks 37m Truck-mounted Concrete Delivery Pump

6X4 ISUZU Concrete Pump Trucks 37m Truck-mounted Concrete Delivery Pump
6X4 ISUZU Concrete Pump Trucks 37m Truck-mounted Concrete Delivery Pump 6X4 ISUZU Concrete Pump Trucks 37m Truck-mounted Concrete Delivery Pump

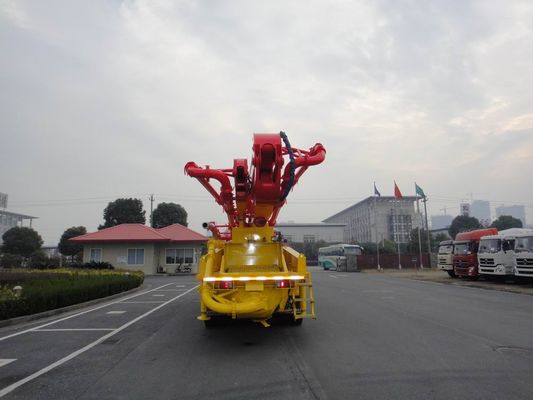

Large Image :  6X4 ISUZU Concrete Pump Trucks 37m Truck-mounted Concrete Delivery Pump

Product Details:
Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ5270THB
Payment & Shipping Terms:
Minimum Order Quantity: No limited
Price: negotiation
Packaging Details: Wax Spray
Delivery Time: 45days
Payment Terms: 30% T/T as advanced payment after signed contract, and 70% residual payment paid after buyer’s inspe
Supply Ability: 2Units/Month
Detailed Product Description
Model Number: HZZ5270THB-4R37 Engine Power (HP): 265
Engine Capacity: 14256 Dimensions (mm): 11830x2490x3870
Total Mass (kg): 26800 Kerb Weight (kg): 26605
Chassis Model: Isuzu Maximum Boom Height: 37M
Output Capacity (m3/h): 120-185
High Light:

concrete pump truck

,

concrete mixer truck

6X4 ISUZU Concrete Pump Trucks 37m Truck-mounted Concrete Delivery Pump

Specifications
Basic parameters for concrete pump truck :
1.Max.pump height: 37m
2.Output Capacity (m3/h): 120-185
3.Chassis: ISUZU


Basic technical parameters for concrete pump truck:

Famous brand
Famous brand pump and technology
The truck mounted concrete pump series are using the highest quality components such as
Germany Rexroth, Harvey and other brands to ensure the equipment with high reliability and durability.

Hydraulic system
Hydraulic systemfor open-circuit, pumping action and boomwide hydraulic control, high reliability,
can withstand prolonged
adverse work environment.

Cooling system



Cooling system which with efficient heat dissipation, pumping with highintensity,
it can be operating sustainable for long period in summer (hot weather), but the pumping oil
temperature would not be able to exceed 60C.


Advantages
Flexible, Precise and Stable.


HZZ5270THB (4R37) Concrete Pump Truck Technical Parameters




Model No.

4R37

Pumping Unit


Output capacity (m3/h)

120- 185



Concrete pressure(bar)

61-76



Concrete cylinder(mm)

230x2000



Mixer Hopper Capacity (L)

550

Boom Section

Boom folding type

"R"



Boom unfolding height (m)

8.5



Boom vertical reach (m)

37.0



Boom horizontal reach (m)

32.7



Boom depth reach (m)

24.3



Boom rotation (o)

370



Concrete pipe (mm/inch)

125/5''



Number of boom sections

4



Angle between boom sections (o)

91/180/180/180/240

Stabilizer

Stabilizer opening width of outriggers (m)

"I"



Maximum opening width of outriggers (m)

7.7

Chassis

according to customer requirements, pumps can be mounted on
6x4 chassis from Europe, Japan or chinese manufactures.
