VOLVO Engines Bridge Inspection Equipment Remote Control / Cab , 8x4 Drive Type

China VOLVO Engines Bridge Inspection Equipment Remote Control / Cab , 8x4 Drive Type supplier
VOLVO Engines Bridge Inspection Equipment Remote Control / Cab , 8x4 Drive Type supplier VOLVO Engines Bridge Inspection Equipment Remote Control / Cab , 8x4 Drive Type supplier VOLVO Engines Bridge Inspection Equipment Remote Control / Cab , 8x4 Drive Type supplier VOLVO Engines Bridge Inspection Equipment Remote Control / Cab , 8x4 Drive Type supplier

Large Image :  VOLVO Engines Bridge Inspection Equipment Remote Control / Cab , 8x4 Drive Type

Product Details:

Place of Origin: Zhejiang.Hangzhou
Brand Name: Hongzhou
Certification: ISO9001, CCC
Model Number: Bridge Inspection Vehicle

Payment & Shipping Terms:

Minimum Order Quantity: No limited
Price: negotiation
Packaging Details: Naked, but wax surface treatment
Delivery Time: 45 days
Payment Terms: 20% TT as advanced payment, residual 80% accepted LC at sight, TT, PayPal etc
Supply Ability: Two units a month
Contact Now
Detailed Product Description
Product Name: Underbridge Inspection Truck Engine: VOLVO_D13A400-EC06
Control System: Remote Control / Cab Drive Type: 8x4
Hydraulic System: Servo System Chassis: Volvo
Total Length Of Platform: 22m Engine Power: 390HP
Vehicle Type: Platform Type Emission Standard: Euro IV



VOLVO Engines Bridge Inspection Equipment Remote Control / Cab , 8x4 Drive Type

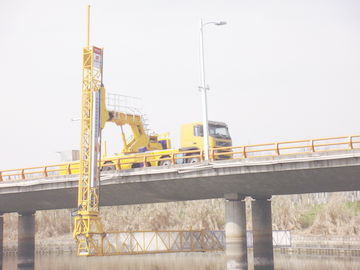

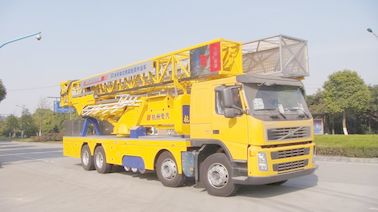

22m VOLVO 8x4 Platform type Bridge Inspection Vehicle (HZZ5320JQJ22)





Description:



Bridge Inspection Truck: The operating truck for bridge detection, as its name suggests, is designed to help detect the performance and reliability of a bridge. Reasonable structure, simple operation, more safety design.

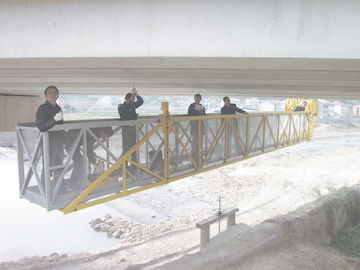

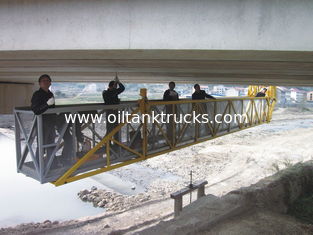

The new platform design has imporve much reliability and stability. Much safety for sending the operator into any location of the bridges. The new developed product with it’s own exported chassis and some OEM components, such as US POCLAIN amble motor, US KOHLAR emergency power supply, Germany “HAWE” Mutiple Valve, Italy “WOLFF” valve etc. greatly increase the service life, easy maintenance. Three hydraulic section with broader extension, rotary platform, luffing machanism together created a three-dimensional folding, much more suit for those flyovers, long-span, approach heavy duty bridges.

It is also able to run in extremely worse environments, even on the elevation 2000m, 98% high humidity weather, and 6 Class land wind. The design of the platform with much broader detection range between 12m to 22m and 1.1m width appers more secure working conditions.





Technical Specifications



Type

HZZ5320JQJ22

Name

Platform Type Bridge Inspection Vehicle

Chassis Model

VOLVO FM400 8×4 Euro IV

G.V.W.

32000kg

Outer Dimension

12420×4000×2500

Max. Speed

97.2km/h

Hydraulic System

Electro hydraulic proportional servo system

Self-walk Part

Static mechanical transmission

Total length of the operation platform

23000mm

Effective horizontal range

21000mm

Max. overbridging of sidewalk

2000~3800mm

Max. crossing of sound barrier

3500mm

Max. load on platform

800kg

Max. load on telescopic platform

400kg

Max load mass for tail end of operation platform

100kg

Max. lowering depth

7000mm

Total length of boom section

7m

The 1st rotary table rotates angle

0~90°

The 2nd rotary table rotates angle

0~180°

Counter Weight

Activity counter weight 3.5T,

Dead counter weight 5T

Stroke of activity counter weight

950mm

Extra stabilizer for rear axle

Oil Cylinder

Remote Control System

Wired/Wireless/Manual

Emergency Power Supply

US Kohler Generator





Competitive Advantage:



Imported VOLVO Chassis, with 390HP large engine power, Euro IV. Has more merits as: low oil consumption,

 environmental design, ensure high stability.



1. Air suspension system can adjust the chasis height automaticly, highly increase the stability for such a pot hole ground.

2. Hydrostatic drive, highly achieved secure in slope and wet road conditions.

3. Those hydraulic steering wheel system, greatly balance the widthness while operating.

4. Two sets of control system on platform either into the control box respectively, allows the operator monitor safety.

5. The hydraulic synchronous interlock device, intercom system, safty lock valve to ensure the safty handing.

6. US Kohler emergency power supply, able to achieve the folding reset, in case the engine doesn' attent well.

7. Max. platform payload is 600kg (can affordable 6-7 operators), the tail of the platform payload is about 250kg.

The extendable folding platform can be adjustable luffing from 2-4meter, greatly imporve the inspection area under the bridge.

8. High strength steel platform frame provide more stability which able to rotate 180°under the bridge, and also keep the limitation of max. drop height for 7meter only.
