6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform

6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform
6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform 6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform 6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform 6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform

Large Image :  6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform

Product Details:
Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ5240JQJ16
Payment & Shipping Terms:
Minimum Order Quantity: No limited
Price: negotiation
Packaging Details: Wax Spray
Delivery Time: 45days
Payment Terms: LC,TT, Paypal,Western Union
Supply Ability: 2Units/Month
Port of Delivery: Shanghai/Ningbo
Detailed Product Description
Features: Folding Platform Product Name: Bridge Inspection Vehicle
Drive Type: 6x4 Vehicle Type: Bucket
Chassis: Dong Feng Length: 16M
G.V.W.: 24000 Outer Dimensions: 11240×2500×3930mm
Engine Power: 230,245,270(HP) Rated Load Platform: 200KG
High Light:

bridge inspection vehicle

,

underbridge inspection truck

,

Folding Bridge Inspection Equipment



6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform



16m Dongfeng 6x4 Bucket type Bridge Inspection Vehicle (HZZ5240JQJ16)



Quick Detail:



1. Total Height: 16m

2. Chassis: Dongfeng

3. Engine Power: 230HP

4. Engine: Dongfeng Cummins

5. Drive Type: 6x4

6. Vehicle Type: Bucket Type

7. Wireless Remote control, Wired Remote Control, Cab Computer Monitor

8. Emission Standard: Euro III

9. Name: Bridge Inspection Vehicle





Descrition



Bucket type is equipped with DongFeng chassis, a famous national brand. Some OEM hydraulic parts and quality components help ensure the reliable performance and long service life.


The telescopic mechanism, swing mechanism and luffing mechanism of the operating truck create a three-dimensional space. This provides the vehicle with incredible freedom of movement and also enables it to quickly and safely send staff or test equipment to any location under the bridge.





Specifications:



Model

HZZ5240JQJ 16

Product name

Bucket type bridge inspection unit

Chassis Model

Dongfeng

Driver type

6×4

G.V.W.

24000(Kg)



Outer dimensions

11240×2500×3930mm

Engine model

DONGFENG CUMMINS

ISDe230 30, ISDe245 30, ISDe270 30

Engine power

230,245,270(HP)

Max. horizontal range

0-16.41M

Max. lowering depth

0-23.3M

Max. overbridging of sidewalk

3-5.4M

The first scope of rotation

0-90°

The second scope of rotation

0-135°

Max. load on platform

300KG

Hydraulic system

The proportion of electro-hydraulic servo systems

Control system

Manual control mode

Cable control mode

Wireless control mode

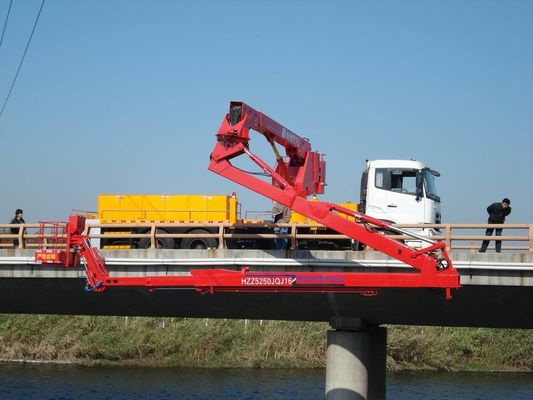

 6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform 0





           Vertical working range under bridge          Horizontal working range under bridge

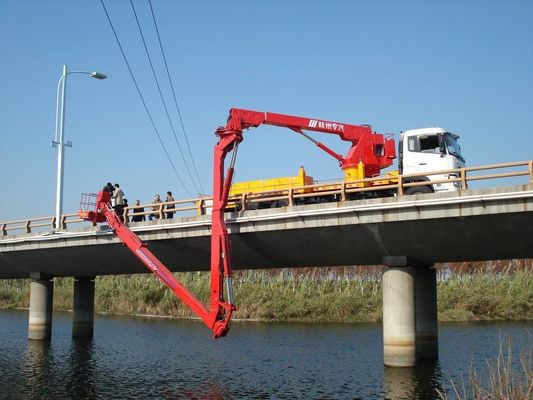

6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform 1

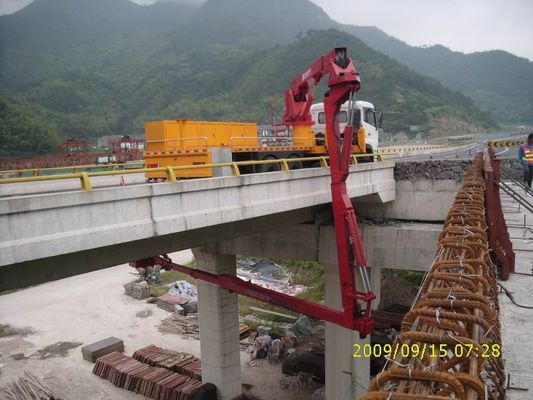

6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform 2





Competitive Advantage:



Patented outrriger: Main arm across range approx 2.5m in a nominal design which greatly increase lateral stability, prevent side-tip, makes sure operators is working at a secure condition. But in Chinese road condition,the total length of sidewalk with bicyclepath is about 4m. This patented design can better afford the 4m widthness reach, hydruclic control with improved flexible movement, get stuck rarely. The outrriger's crawler drives the stabilizer with less pressing to reduce ground damage while operating under the bridge selfly.
