Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Color: | Yellow |
|---|---|---|---|
| Overbridge Sidewalk: | 3.5m | Crossing Sound Barrier: | 4.2m |
| Under Bridge Depth: | 7.85m | Occupy Lane Width: | 3m |
| High Light: | 22m Underbridge Inspection Truck,Less Shaking Underbridge Inspection Truck,Aluminum Bridge Inspection Truck |
||
22m Underbridge Inspection Truck/ underbridge Repairing Truck easy access stable less shaking
22m Bridge Inspection Truck/ Bridge Repairing Truck
We provide all kinds of special purpose vehicle, such as construction vehicle, tank truck, van semi-trailer, and etc. Our 22m Bridge Inspection Truck/ Bridge Repairing Truck are widely used in all kinds of situation. Our 22m Bridge Inspection Truck/ Bridge Repairing Truck can make your work much smoother and safer. We have professional design team with more than 20years' experience of special purpose vehicle. We have all kinds of special purpose vehicle fit all work situation for you. Also we accept custom design for our customers. 22m Bridge Inspection Truck/ Bridge Repairing Truck
Technical Parameters Of Bridge Detection Vehicles
| Type | HZZ5320JQJ22 | ||
| Name | Lattice type operating vehicle for bridge detection | ||
| Chassis type | D13A400-EC06 | ||
| Driver type | 8×4 | ||
| Total mass | 32000Kg | ||
| Outer dimension | 12420×4000×2500 | ||
| Engine capacity | 12800 | ||
| Engine | 299.84 HP | ||
| Total operating range under bridge | 23000mm | ||
| Vertical operating range under bridge | 6350mm | ||
| The main arm across the width | 2000-3800 | ||
| The first scope of rotation | 0-90° | ||
| The second scope of rotation | 0-180° | ||
| Rated load platform | 200KG | ||
| Hydraulic system | The proportion of electro-hydraulic servo systems | ||
| Control system | |||
| Manual control mode | Cable control mode | Wireless control mode | |
Description:
Bridge Inspection Truck: The operating truck for bridge detection, as its name suggests, is designed to help detect the performance and reliability of a bridge. Reasonable structure, simple operation, more safety design.
The new platform design has imporve much reliability and stability. Much safety for sending the operator into any location of the bridges. The new developed product with it’s own exported chassis and some OEM components, such as US POCLAIN amble motor, US KOHLAR emergency power supply, Germany “HAWE” Mutiple Valve, Italy “WOLFF” valve etc. greatly increase the service life, easy maintenance. Three hydraulic section with broader extension, rotary platform, luffing machanism together created a three-dimensional folding, much more suit for those flyovers, long-span, approach heavy duty bridges.
It is also able to run in extremely worse environments, even on the elevation 2000m, 98% high humidity weather, and 6 Class land wind. The design of the platform with much broader detection range between 12m to 22m and 1.1m width appers more secure working conditions.

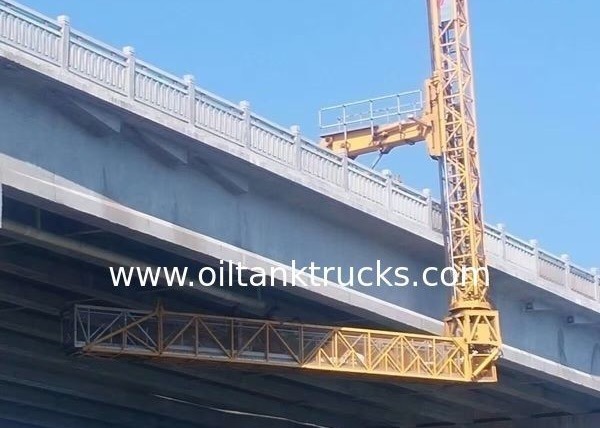

22m Bridge Inspection Truck/ Bridge Repairing Truck
