VOLVO 390HP 22m Platform Mobile Bridge Inspection Unit For Bridge Inspect

Name: VOLVO 390HP 22m Platform Mobile Bridge Inspection Unit For Bridge Inspect
Brand: China Jinggong
SKU: HZZ5320JQJ22
Rating: 4.9 (182 reviews)

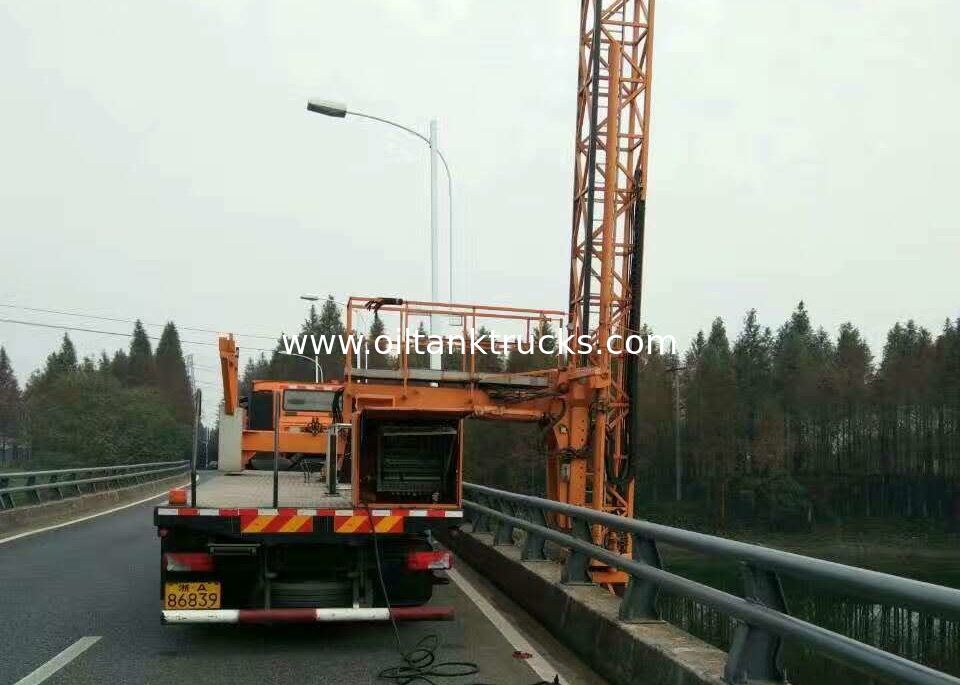

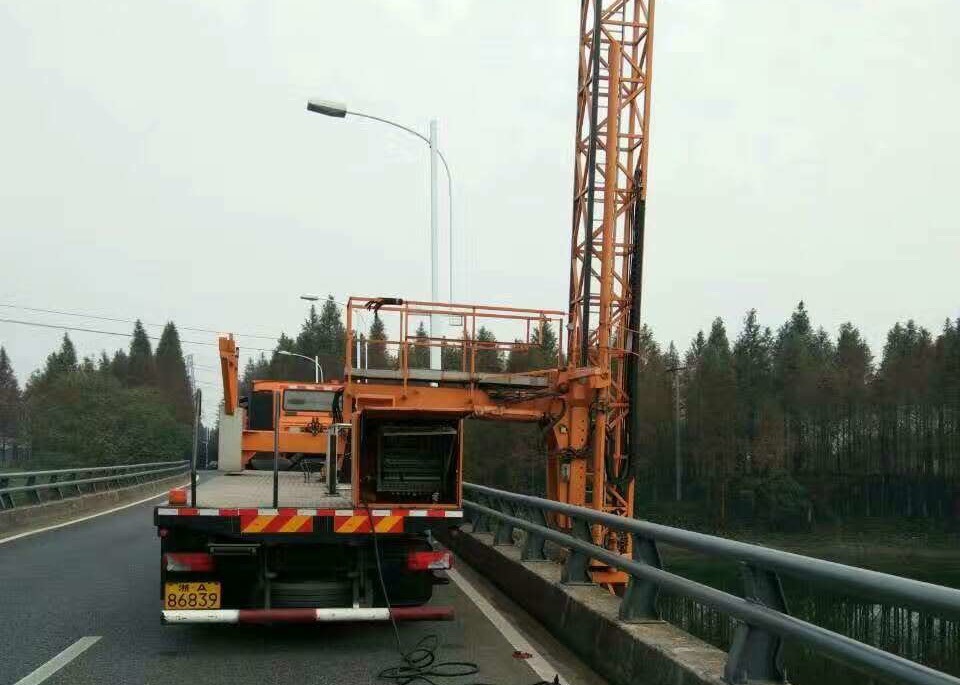

Large Image : VOLVO 390HP 22m Platform Mobile Bridge Inspection Unit For Bridge Inspect

Product Details:

Place of Origin:	Zhejiang.Hangzhou
Brand Name:	China Jinggong
Certification:	ISO9001, CCC
Model Number:	HZZ5320JQJ22

Payment & Shipping Terms:

Minimum Order Quantity:	No limited
Price:	negotiation
Packaging Details:	Naked
Delivery Time:	90days
Payment Terms:	L/C,T/T, Western Union
Supply Ability:	2Units/Month
Port of Delivery::	Shanghai/Ningbo

Contact Now

Detailed Product Description

Model:	HZZ5320JQJ22	CHASSIS TYPE:	VOLVO FM400 8X4
TOTAL MASS:	32000KG	OUTER DIMENSION:	12420X4000X2500
MAX SPEED:	85KM/H	MAX LOAD:	600KG
MAX LOAD OF FRONT END:	250KG	VERTICAL OPERATING RANGE UNDER BRIDGE:	6350mm
The Single Boom Across Range:	7M	FIRST SCOPE OF ROTATION:	0~90°
Highlight:	Mobile Bridge Inspection Unit , 390HP Mobile Bridge Inspection Unit , Euro IV Mobile Bridge Inspection Unit

22m Platform Type 8x4 (Euro IV) VOLVO 390HP chassis bridge inspection vehicle / 22m 390HP Volvo 8x4 (Euro IV) Platform Type Operation Truck for Bridge Inspect

Quick Details:

1. Operating length: 22m

2. Chassis: Volvo

3. Drive Type: 8x4

4. Vehicle Type: Platform Type

5. Enigne Power: 394HP

6. Emission Stand: Euro IV

Specifications:

TYPE	HZZ5320JQJ22
NAME	Platform Type Bridge Inspection Vehicle
CHASSIS TYPE	VOLVO FM400 8X4
TOTAL MASS	32000KG
OUTER DIMENSION	12420X4000X2500
MAX SPEED	85KM/H
HYDRAULIC SYSTEM
SELF-WALK PART	Electro-hydraulic proportional servo system
OPERATING RANGE UNDER BRIDGE(TOTAL)	Machanical hydrostatic transmission
MAX. HORIZONTAL RANGE(EFFECTIVE)	21000mm
MAX. OVERBRIDGING OF SIDEWALK	2000~3800mm
MAX. CROSSING OF SOUND BARRIER	3500mm
MAX. LOAD ON PLATFORM	800KG
MAX. LOAD ON TELESCOPIC PLATFORM	400KG
MAX. LOWERING DEPTH	6350mm
THE SINGLE BOOM ACROSS RANGE	7M
	0~90°
SECOND ROTATION OF PLATFORM	0~180°
BALANCER	3.5T,5T Movable balancer, fixed balancer
OPERATING RANGE FOR MOVBLE BALANCER	950MM
ADDITIONAL STABIZER FOR THE REAR AXLE	Oil cylinder
CONTROL SYSTEM	Wired/wireless/manual
STANDBY GENERATOR	US kohler

Competitive Advantage:

Imported VOLVO Chassis, with 390HP large engine power, Euro IV. Has more merits as: low oil consumption, environmental design, ensure high stability.
Air suspension system can adjust the chasis height automaticly, highly increase the stability for such a pot hole ground.
Hydrostatic drive, highly achieved secure in slope and wet road conditions.
Those hydraulic steering wheel system, greatly balance the widthness while operating.
Two sets of control system on platform either into the control box respectively, allows the operator monitor safety.
The hydraulic synchronous interlock device, intercom system, safty lock valve to ensure the safty handing.
US Kohler emergency power supply, able to achieve the folding reset, in case the engine doesn' attent well.
Max. platform payload is 600kg (can affordable 6-7 operators), the tail of the platform payload is about 250kg. The extendable folding platform can be adjustable luffing from 2-4meter, greatly imporve the inspection area under the bridge.
High strength steel platform frame provide more stability which able to rotate 180°under the bridge, and also keep the limitation of max. drop height for 7meter only.
