Model: | HZZ5240JQJ16 | G.V.W.: | 24000 |
---|---|---|---|
Outer Dimensions: | 11240×2500×3930mm | Engine Model: | DONGFENG CUMMINS ISDe230 30, ISDe245 30, ISDe270 30 |
Engine Power: | 230,245,270(HP) | Rated Load Platform: | 200KG |
Hydraulic System: | The Proportion Of Electro-hydraulic Servo Systems | ||
Highlight: | under bridge inspection vehicle,bridge inspection machine,16m Under Bridge Inspection Equipment |

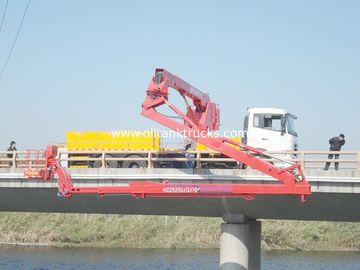

Low Oil Consumption 16m under bridge access bucket type bridge snooper truck Dongfeng 6×4
Quick Details:
Model:HZZ5240JQJ16
Product name:Bucket type bridge inspection unit
Chassis Model:DFL1250A9
Driver type:6×4
Advantage:low oil consumption, environmental design, ensure high stability
With increasing numbers of bridges in the world, safety of bridges becomes a top priority. This needs periodic inspection of parts of bridge, which are not easily accessible. Our bridge inspection trucks are Versatile, efficient and lightweight, they can help you with your bridge inspection and maintenance needs.
Bucket type is equipped with DongFeng chassis, a famous national brand. Some OEM hydraulic parts and quality components help ensure the reliable performance and long service life.
The telescopic mechanism, swing mechanism and luffing mechanism of the operating truck create a three-dimensional space. This provides the vehicle with incredible freedom of movement and also enables it to quickly and safely send staff or test equipment to any location under the bridge.
Specifications:
Model | HZZ5240JQJ 16 | ||
Product name | Bucket type bridge inspection unit | ||
Chassis Model | DFL1250A9 | ||
Driver type | 6×4 | ||
G.V.W. | 24000(Kg) | ||
Outer dimensions |
11240×2500×3930mm | ||
Engine model | DONGFENG CUMMINS ISDe230 30, ISDe245 30, ISDe270 30 |
||
Engine power | 230,245,270(HP) | ||
Max. horizontal range | 0-16.41M | ||
Max. lowering depth | 0-23.3M | ||
Max. overbridging of sidewalk | 3-5.4M | ||
The first scope of rotation | 0-90° | ||
The second scope of rotation | 0-180° | ||
Max. load on platform | 300KG | ||
Hydraulic system | The proportion of electro-hydraulic servo systems | ||
Control system | |||
Manual control mode | Cable control mode | Wireless control mode |
Vertical working range under bridge Horizontal working range under bridge
Competitive Advantage:
Patented outrriger: Main arm across range average 2.5m in a nominal design which greatly increase lateral stability, prevent side-tip, makes sure operators is working at a secure condition. But in Chinese road condition almost sidewalk with bicyclepath about 4m. This protrack design can better afford the wide widthness reach, hydruclic control improve more flexible movement, reduce the sticking. Crawler drives the outrriger takes small pressure stress to ensure almost zero ground damage while operating under the bridge selfly.
