Product Details:
Payment & Shipping Terms:
|
| Model: | HZZ5250JQJ16 | Chassis: | DFL1250A12 (Euro 4) |
|---|---|---|---|
| Dimension: | 11200×2500×3950 Mm | Power Of Engine: | 245HP / 270HP |
| G.V.W.: | 25000 | Drive Type: | 6x4 |
| Hydraulic System: | Electro-hydraulic Proportional Servo System | ||
| High Light: | 16m Under Bridge Access Equipment,Boom Type Under Bridge Access Equipment,Electro Hydraulic Bridge Inspection Truck |
||

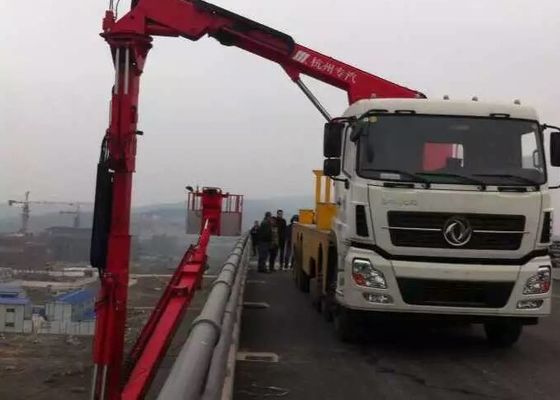

16m Boom Type under bridge access equipment Dongfeng chassis (Euro 4) 6x4 245HP / 270HP
Boom Type under bridge access equipment Dongfeng chassis (Euro 4) 6x4 245HP / 270HP
Quick Details:
Model: HZZ5250JQJ16
Product name: Boom Type Bridge Inspection Vehicle
Chassis Model: DFL1250A12 (Euro 4)
Driver type: 6×4
Maximum Net Power of Engine: 245HP / 270HP
Overall dimensions: 11200×2500×3950 mm
Main Description
Boom Type Bridge Inspection Vehicle is the latest operating vehicle which independently developed by our company, it has good exterior, compact structure, easy to operate, safe and reliable features. The chassis using domestic Dongfeng chassis, main hydraulic parts imported from Germany , the dedicated device uses three scalable, two rotating , three luffing mechanism, forming a three-dimensional space, six degrees of freedom space motion system, can safely and efficiently send staff and testing equipment to any location which the bridge magnitude allowed.
Specifications:
| Model | HZZ5250JQJ16 |
| Drive Type | 6×4 |
| Chassis Model | DFL1250A12(Euro 4) |
| Engine Model | ISDe245 40/ISDe270 40 |
| Maximum Net Power of Engine | 245HP/270HP |
| G.V.W. | 25000 kg |
| Overall dimensions | 11200×2500×3950 mm |
| Horizontal Operation Range Under Bridge | 0mm-16410mm |
| Maximum Vertical Operating Range Under The Bridge | 0mm-23300mm |
| Maximum Width for Crossing Sidewalk | 3000mm-5400mm |
| The First Scope Rotation Angle | 0~90° |
| The Second Scope Rotation Angle | 0~180° |
| Maximum Loading Capacity for Platform | 250KG |
| Hydraulic System | Electro-hydraulic Proportional Servo System |
| Control Mode | Manual/Wired/Remote |
Competitive Advantage:
Leading Technology;
Optimization Chassis: Dongfeng;
Reliable Performance;
Strong Operating Platform Capabilities;
Work Safety;
Powerful Communication Function;
With Complete Accessory;
High Adaptability To Circumstance
