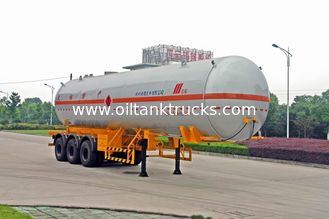

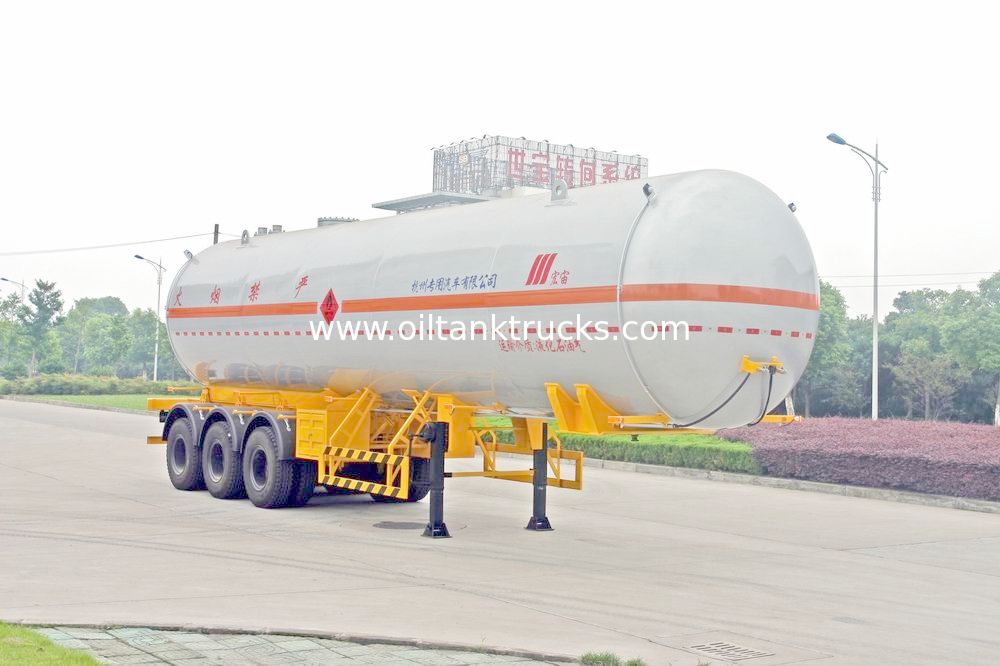

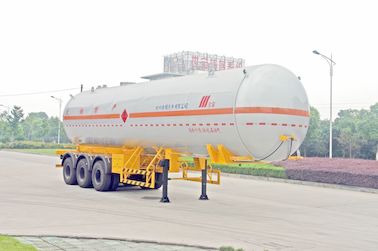

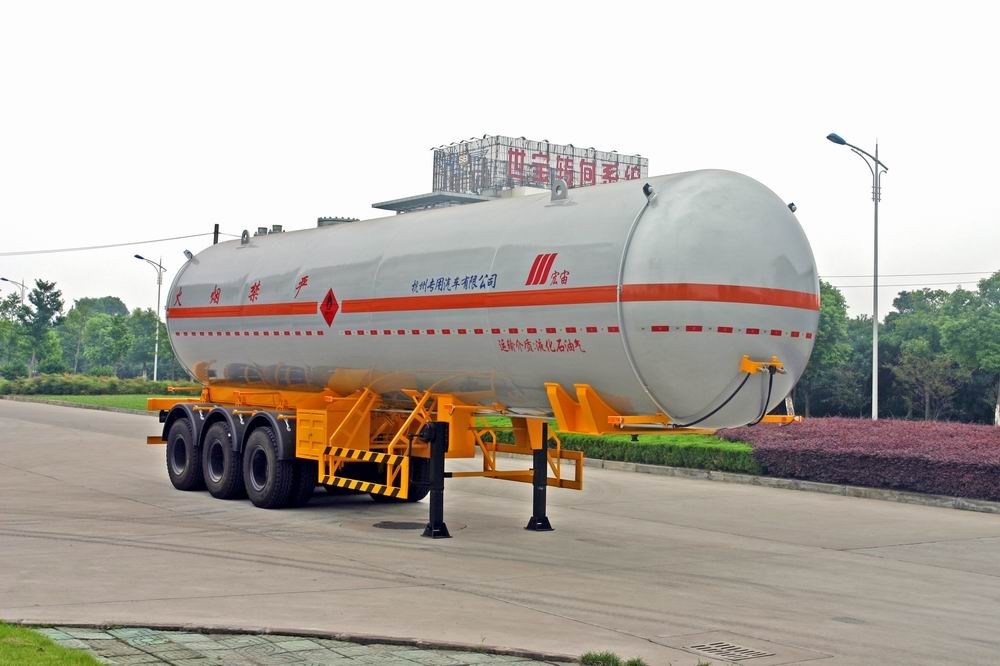

Gas Tanker Truck Capacity 58300L / Semi Trailer
Quick Details:
1. Axle: 3x13T, FUWA
2. Capacity: 58000L
3. Transport Property: Propane
4. ABS System: Haldex
Fuel Petroleum / Gas Tanker Truck Capacity 58300l / Semi Trailer
As its name suggests, it is designed to transport liquefied gases like Propane (C3H8), Epoxy propane (C3H6O) and Ethylene Oxide (C2H4O), etc. The specification of design, fabrication and third party inspection all refers to Pressured Vessel (GB150, JB/T 4731, JB/T 4781), where is applicable. Fully quanlity controlled and all tests and inspections provided must be carried out under the control of third party and certified by the same authority.
Specifications:
|
Model |
HZZ9400GYQ |
|
Outer dimension(mm) |
13000×2500×3995 |
|
Tank Effective Volume (m3) |
58.3 |
|
Transporting Medium |
Liquefied Petroleum Gas(Propane) |
|
Wheelbase (mm) |
7000+1320+1320 |
|
Number of Axle |
3 |
|
Tare weight(Kg) |
15514 |
|
Payload(Kg) |
24486 |
|
Spec. of Tyre |
425/65R22.5 |
|
Number of spring steel plate |
8/8/8 |
