Product Details:
Payment & Shipping Terms:
|
| Tank Material: | Tank Material:Carbon Steel | Tank Effective Volume: | Tank Effective Volume :36 CBM |
|---|---|---|---|
| Tank Color: | Tank Color: RAL 9016 WHITE SEMI GLOSS MATTE | ||
| High Light: | gas delivery truck,gas tank truck |
||

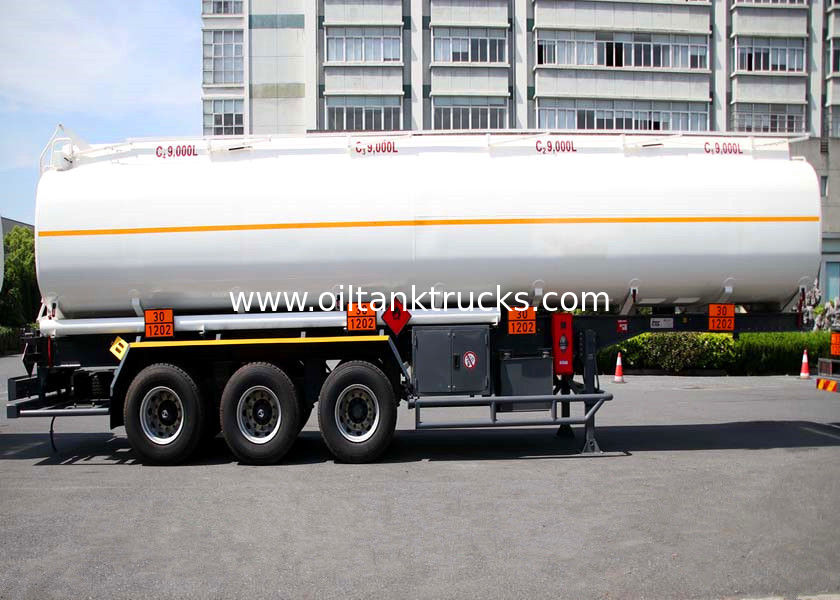

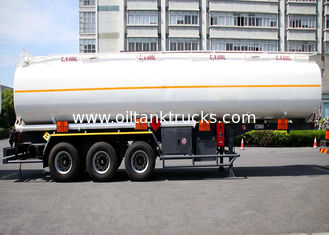

Oil Tank Trailer / Liquefied Gas Semi-trailer / 3 Axles / Wheel Formula 6x4
The vehicle mainly used for the transportation and storage of hazardous chemical liquid products and oil products shch as gas,diesel. Widely used in transport units, chemical enterprises, gas stations and other industries, this type of vehicle is mainly composed of frame, tank top, unloading system and various protective devices. This type of vehicle is mainly composed of frame, tank, unloading system and various protective devices. The tank color is RAL 9016 WHITE SEMI GLOSS MATTE and the chasis and landing fears is RAL 7043 GREY. It has the characteristics of full structure, reliable performance, beautiful appearance, simple operation and so on.
Competitive Advantage
The tank structure adopts irregular elliptical column. The semi-trailers are mainly manufactured in carbon steel, for easy repair in all the work shop entitled to repair tank and tankers. Relying on intelligent production line for cutting and welding, the semi-trailers get higher quality and higher precision. Furthermore, we minimize the risks of overturns by reducing our gravity center as low as possible. It has the advantages of reasonable structure, reliable performance, beautiful appearance and simple operation.
Specifications
| Model | HZZ3600GYY |
| Outer dimension(mm) | 11700×2500×3647 |
| Tank Effective Volume (m3) | 36 |
| Transporting Medium | Gas/Diesel |
| Tank material | Thick carbon steel Q345B |
| Wheelbase (mm) | 5950/1310/1310 |
| Number of Axle | 3 |
| Tare weight(Kg) | 12300 |
| Payload(Kg) | 30240kgs according 0.84 liquid density |
| Spec. of Tyre | 315/80R22.5 PR18/20 |
| Number of spring steel plate | 9 |
