| High Light: | crash cushion vehicle,impact attenuator truck,High Performance Truck Mounted Crash Attenuator |
||
|---|---|---|---|

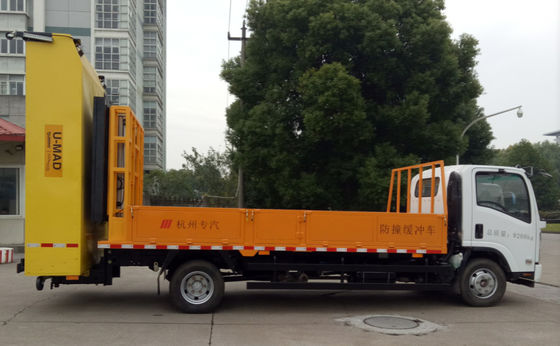

Truck mounted attenuator safety Attenuator Truck safety construction work zone
Main characteristic:
1.Reliable Performance
The truck is equipped with special automobile anti-collision buffer vehicle buffer device and large LED display with arrow mobile security features on the automobile chassis, can be used for safety protection of highway, municipal engineering, city road, elevated road and other roads on mobile maintenance, temporary road construction and traffic accident or emergency. The purpose is to protect the construction or rescue personnel, construction equipment free from traffic accidents, to avoid a second accident, can also greatly reduce the vehicle damage.
2.Optimization Chassis
Used FAW or ISUZU chassis, attractive appearance, strong power, huge carrying capacity, good stability, economic environment and the luxurious cab, especially for long-time work.
3.LED Display screen
With a large LED display which can raise and lower. Can rise up about 1.8 meters as a whole. The maximum height of the display screen is about 4.88 meters. The contents of the display can be custom-made, usually showing red or yellow scintillating guide arrow. The display has a WIFI signal input function, and the operator can control arrowhead guidance and text input in the cab.
Main description:
Attenuator Truck is the latest operating vehicle which independently developed by our company, it has nice exterior, compact structure, easy operation, safe and reliable features. It is a device intended to reduce the damage to structures, vehicles, and motorists resulting from a motor vehicle collision. It is designed to redirect the vehicle away from the hazard or away from roadway machinery and workers. Usually placed in front of fixed structures near highways, such as gore points, crash barrier introductions, or overpass supports.
Attenuator Truck used ISUZU chassis, drive mode is 6 × 4, with a good view cab with air conditioning system and FM / AM radio.
Main specification for Attenuator Truck:
| category | Item | Specification | |
| Vehicle | Product model | HZZ5090TFZ | |
| Product standard | FZ09QL00 | ||
| Product name | Attenuator Truck | ||
| Outline dimension(L×W×H) | 8050×2450×3900mm | ||
| Kerb weight | Total weight(kg) | 9005 | |
| Front axle(kg) | 3155 | ||
| Rear axle(kg) | 5850 | ||
| Full load weight | Total weight(kg) | 9200 | |
| Front axle(kg) | 3350 | ||
| Rear axle(kg) | 5850 | ||
| Max. speed(km/h) | 110 | ||
| Chassis | Chassis model | QL1100A8MAY | |
| Engine | Model | 4HK1-TC51 | |
| Displacement(L) | 5.193 | ||
| Rated power/Rotate speed(kw/r.p.m) | 141/2600 | ||
| Max. Torque/Rotate speed (Nm/r.p.m) | 513/1600 | ||
| Max. Clear power (KW) | 140 | ||
| Wheelbase | Front(mm) | 1680 | |
| Rear(mm) | 1650 | ||
| Min. Turning circle diameter(m) | ≤15 | ||
| Min. Ground clearance(mm) | 215 | ||
| Approach angle(0) | 17 | ||
| Departure angle(0) | 10 | ||
|
|
Manufacturer | USA Lindsay | |
| Model | 100K(2000kg-70 km/h) | ||
| Buffer device total weight(kg) | 800 | ||
| Hydraulic pressure | 11 | ||
| Buffer device lifting speed (s/journey) | 10±5 | ||
|
LED |
Manufacturer | Hangzhou Wuhu | |
| Size of display screen(L×W)(mm) | 1920×1600 | ||
| LED module specification | P10 LED module | ||
| Module image resolution | 32×16 | ||
| Brightness(cd/㎡) | ≥6000 | ||
| Max. Power consumption(W/㎡) | 500 | ||
| Power input(V) | AC220 | ||
| Output | Wifi /flat computer | ||
| Visible distance(m) | ≥300 | ||
| Lifting device | Manufacturer | Hangzhou Saiqi | |
| Max. Journey(mm) | 1800 | ||
| Max. Lifting height(mm) | 5000 | ||
| Max. Lifting weight(kg) | 250 | ||
| Hydraulic pressure(MPa) | 11 | ||
| Container size(mm) | 4720×2350×500 | ||
| Lifting light(optional) | Manufacturer | Jiangsu Ouhui | |
| Model | SFW6110 | ||
| Engine | Brand | Honda | |
| Rated output electric pressure(V) | 220 | ||
| Rated output power(W) | 2000 | ||
| Light(4PC) | Working pressure(V) | 220 | |
| Power(W) | 4×500 | ||
| light quantity(lm) | 4×10000 | ||
| Lifting bar | Max. Lifting height(mm) | 4500 | |
| Drive mode | Pneumatic | ||
