High Speed Truck Mounted Attenuator With Arrow Mobile Security

China High Speed Truck Mounted Attenuator With Arrow Mobile Security supplier

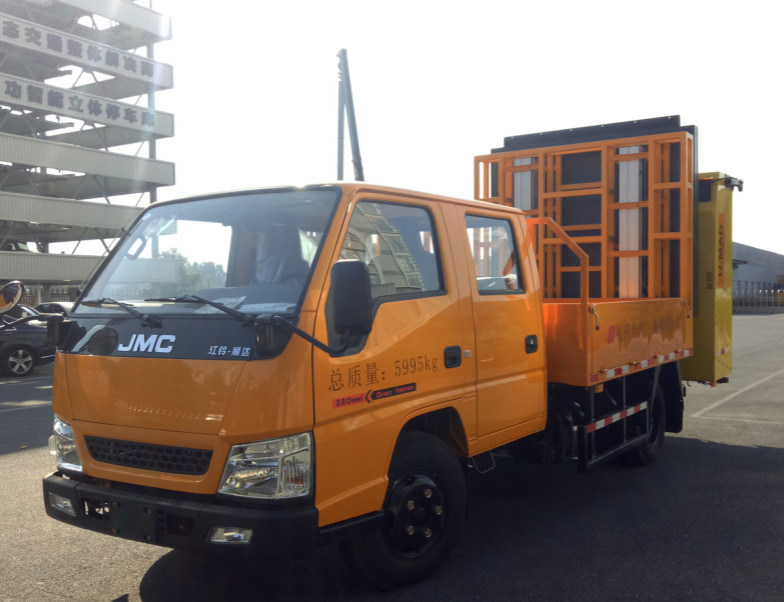

Large Image :  High Speed Truck Mounted Attenuator With Arrow Mobile Security

Product Details:

Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ5060TFZ

Payment & Shipping Terms:

Minimum Order Quantity: No limited
Price: negotiation
Packaging Details: Naked
Delivery Time: 45days
Payment Terms: 30% T/T as advanced payment after signed contract, and 70% residual payment paid after buyer’s inspe
Supply Ability: 8 Units/Months
Contact Now
Detailed Product Description
Color: Yellow Total Weight: 5995kg
Outline Dimension: 6470X2330X3080

Truck mounted Attenuator for sale safety engineering construction

Main description:

Attenuator Truck is the latest operating vehicle which independently developed by our company, it has nice exterior, compact structure, easy operation, safe and reliable features.

High Speed Truck Mounted Attenuator With Arrow Mobile Security

Attenuator Truck used ISUZU chassis, drive mode is 6 × 4, with a good view cab with air conditioning system and FM / AM radio.

Main characteristic:
1.Reliable Performance
The truck is equipped with special automobile anti-collision buffer vehicle buffer device and large LED display with arrow mobile security features on the automobile chassis, can be used for safety protection of highway, municipal engineering, city road, elevated road and other roads on mobile maintenance, temporary road construction and traffic accident or emergency. The purpose is to protect the construction or rescue personnel, construction equipment free from traffic accidents, to avoid a second accident, can also greatly reduce the vehicle damage.
2.Optimization Chassis
Used FAW or ISUZU chassis, attractive appearance, strong power, huge carrying capacity, good stability, economic environment and the luxurious cab, especially for long-time work.
3.LED Display screen
With a large LED display which can raise and lower. Can rise up about 1.8 meters as a whole. The maximum height of the display screen is about 4.88 meters. The contents of the display can be custom-made, usually showing red or yellow scintillating guide arrow. The display has a WIFI signal input function, and the operator can control arrowhead guidance and text input in the cab.


High Speed Truck Mounted Attenuator With Arrow Mobile Security




Main specification for Attenuator Truck:


category Item Specification
Vehicle Product model HZZ5060TFZ
Product standard FZ06JX00
Product name Attenuator Truck
Outline dimension(L×W×H) 6470×2330×3080mm
Kerb weight Total weight(kg) 5670
Front axle(kg) 1790
Rear axle(kg) 3880
Full load weight Total weight(kg) 5995
Front axle(kg) 2115
Rear axle(kg) 3880
Max. speed(km/h) 100
Chassis Chassis model JX1061TSG2
Engine Model JX493ZLQ5(A)
Displacement(L) 2.771
Rated power/Rotate speed(kw/r.p.m) 85/3800
Max. Torque/Rotate speed (Nm/r.p.m) 285/1800-2200
Max. Clear power (KW) 83
Wheelbase Front(mm) 1385
Rear(mm) 1425
Min. Turning circle diameter(m) ≤15
Min. Ground clearance(mm) 195
Approach angle(0) 27
Departure angle(0) 12





Crash prevent buffer device

Manufacturer USA Lindsay
Model 70K(2000kg-70 km/h)
Buffer device total weight(kg) 800
Hydraulic pressure 11
Buffer device lifting speed (s/journey) 10±5

LED
Display screen

Manufacturer Hangzhou Wuhu
Size of display screen(L×W)(mm) 1920×1600
LED module specification P10 LED module
Module image resolution 32×16
Brightness(cd/㎡) ≥6000
Max. Power consumption(W/㎡) 500
Power input(V) AC220
Output Wifi /flat computer
Visible distance(m) ≥300
Lifting device Manufacturer Hangzhou Saiqi
Max. Journey(mm) 1800
Max. Lifting height(mm) 5000
Max. Lifting weight(kg) 250
Hydraulic pressure(MPa) 11
Container size(mm) 2330×2100×450
Lifting light(optional) Manufacturer Jiangsu Ouhui
Model SFW6110
Engine Brand Honda
Rated output electric pressure(V) 220
Rated output power(W) 2000
Light(4PC) Working pressure(V) 220
Power(W) 4×500
light quantity(lm) 4×10000
Lifting bar Max. Lifting height(mm) 4500
Drive mode

Pneumatic
