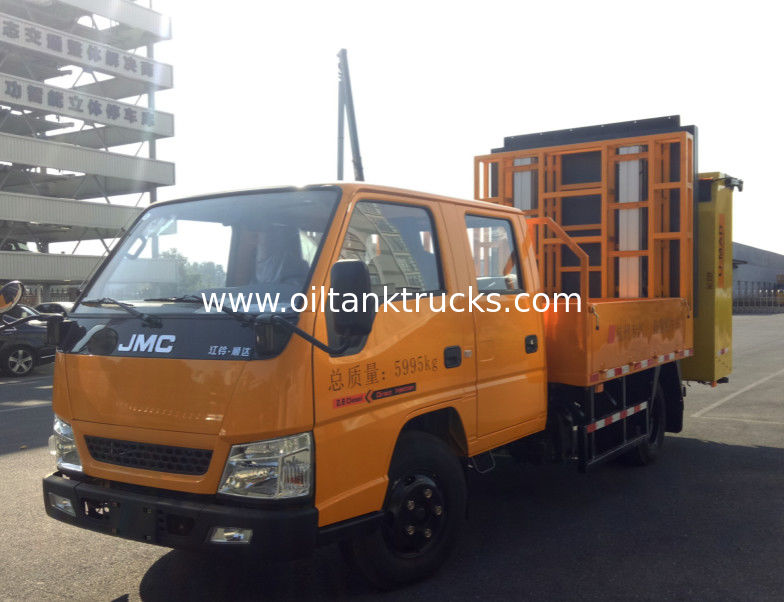

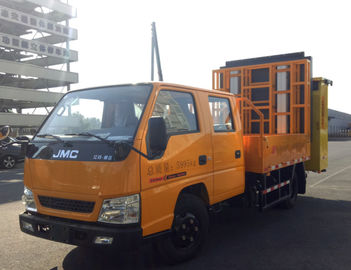

Truck mounted Attenuator for sale safety engineering construction
Attenuator Truck is the latest operating vehicle which independently developed by our company, it has nice exterior, compact structure, easy operation, safe and reliable features.
Attenuator Truck used ISUZU chassis, drive mode is 6 × 4, with a good view cab with air conditioning system and FM / AM radio.
The truck is equipped with special automobile anti-collision buffer vehicle buffer device and large LED display with arrow mobile security features on the automobile chassis, can be used for safety protection of highway, municipal engineering, city road, elevated road and other roads on mobile maintenance, temporary road construction and traffic accident or emergency. The purpose is to protect the construction or rescue personnel, construction equipment free from traffic accidents, to avoid a second accident, can also greatly reduce the vehicle damage.
Used FAW or ISUZU chassis, attractive appearance, strong power, huge carrying capacity, good stability, economic environment and the luxurious cab, especially for long-time work.
3.LED Display screen
With a large LED display which can raise and lower. Can rise up about 1.8 meters as a whole. The maximum height of the display screen is about 4.88 meters. The contents of the display can be custom-made, usually showing red or yellow scintillating guide arrow. The display has a WIFI signal input function, and the operator can control arrowhead guidance and text input in the cab.
Main specification for Attenuator Truck:
|Product name||Attenuator Truck|
|Kerb weight||Total weight(kg)||5670|
|Full load weight||Total weight(kg)||5995|
|Rated power/Rotate speed(kw/r.p.m)||85/3800|
|Max. Torque/Rotate speed (Nm/r.p.m)||285/1800-2200|
|Max. Clear power (KW)||83|
|Min. Turning circle diameter(m)||≤15|
|Min. Ground clearance(mm)||195|
|Buffer device total weight(kg)||800|
|Buffer device lifting speed (s/journey)||10±5|
|Size of display screen(L×W)(mm)||1920×1600|
|LED module specification||P10 LED module|
|Module image resolution||32×16|
|Max. Power consumption(W/㎡)||500|
|Output||Wifi /flat computer|
|Lifting device||Manufacturer||Hangzhou Saiqi|
|Max. Lifting height(mm)||5000|
|Max. Lifting weight(kg)||250|
|Lifting light(optional)||Manufacturer||Jiangsu Ouhui|
|Rated output electric pressure(V)||220|
|Rated output power(W)||2000|
|Lifting bar||Max. Lifting height(mm)||4500|
