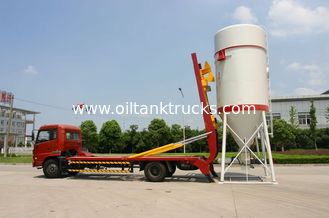

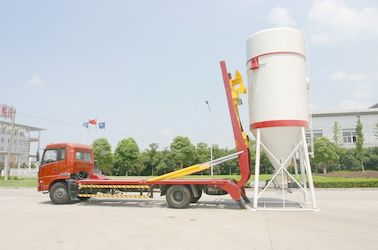

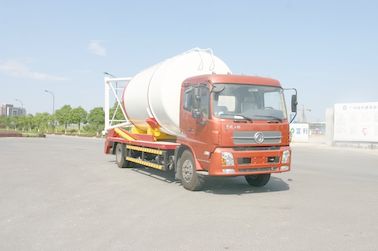

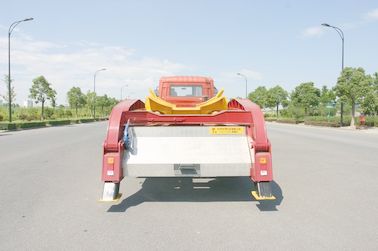

Dong Feng 6x4 Dry Bulk Truck Hydraulic For Dry-Mixed Mortar 22 Cbm

China Dong Feng 6x4 Dry Bulk Truck Hydraulic For Dry-Mixed Mortar 22 Cbm supplier
Dong Feng 6x4 Dry Bulk Truck Hydraulic For Dry-Mixed Mortar 22 Cbm supplier Dong Feng 6x4 Dry Bulk Truck Hydraulic For Dry-Mixed Mortar 22 Cbm supplier Dong Feng 6x4 Dry Bulk Truck Hydraulic For Dry-Mixed Mortar 22 Cbm supplier

Large Image :  Dong Feng 6x4 Dry Bulk Truck Hydraulic For Dry-Mixed Mortar 22 Cbm

Product Details:

Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ5120ZBG

Payment & Shipping Terms:

Minimum Order Quantity: No limited
Price: negotiation
Packaging Details: Wax Spray
Delivery Time: 45days
Payment Terms: LC, TT, Paypal, Western Union
Supply Ability: 4Units/Month
Port of Delivery:: Shanghai/Ningbo
Contact Now
Detailed Product Description
Outer Dimension: 9700×2490×2760 Wheelbase(mm) Front/Rear Tread (mm): 5600 1880/1800
Tare Weight(kg): 8805 Payload(kg): 3000
Total Mass(kg): 12000 Max.speed(km/h): 90
No Of Axle: 2 Chassis Model: DFL5120XXYB1

Dong Feng 6x4 Dry Bulk Truck Hydraulic For Dry-Mixed Mortar 22 Cbm



Quick Details:



Storage: dry powder
Drive Wheel: 6x4
Transmission Type: Manual
Fuel Type: Diesel
Load capacity: 22cbm



Main arms in gooseneck design(patented) ensure pick-up and deposit out of angle position up to 45°. Pneumatic proportional control for main cylinder. Loading platform in front with integrated hose guiding and protection. Hydraulic van locking for safe and rapid operation. Rear loading platform, short overhang. can greatly achieve and complete the loading/unloading selfly, educe cost, avoid time-wasting, and save more labour.




Fully hydraulic lifting and loading system, can be completed whole operation by few labour.
The set of hydraulic lifting system was a developed product, pantented technical cooperate with Germany “GERGEN”.





Basic Specs:


1. Tank Diameter: 1800-2500mm
2. Discharge redisdual ratio: ≤1.5m³
3. Turnovers: 0~95(°)
4. Tank Loading Mass: ≤4200kg
5. Lift Height: 5500~6000mm




Specifications:



The whole

 Vehicle

Dimension

Outer dimension

9700×2490×2760

Gearbox

 Mode

DF6S750

 Type

manipulation

Wheelbase(mm)

Front/Rear Tread

(mm)

5600

1880/1800

Manufacturer

Dong Feng Automobile Co.Ltd.

Operation

Soft axle manipulation

Front/Rear overhang

(mm)

1460/2670

Forward stalls

six

Approach/Departure

 (°)angle

20/9

Speed Ratio

6.44/3.841/2.29/1.477/1

/0.802/5.802

Quality

Tare weight(kg)

8805

Engine

Type and model

Electronic pressurized water-cooled cylinder diesel engine

Payload(kg)

3000

Total mass(kg)

12000

 Model

ISDe185 30

Special

parameter

Mortar tank

weight(Kg)

≤3000Kg

Manufacturer

Dongfeng Cummins

 Engine Co.Ltd.

Residual rate(m3)



≤1.5



Displacement(mL)

4.5

Turn round angle(°)

0-92

Fuel type

Diesel

chassis

 Model

DFL5120XXYB1

Emission standard

National III

Type

Second

Manufacturer

Dong Feng

Automobile

Co.Ltd.

Max.speed(km/h)

90

No of axle

2

STORAGE TANK FOR DRY-MIXED MORTAR

 Type of tank

 CG storage-35t

Nominal storage volume(m3)

22 m3

Discharge valve diameter(mm)

250

)Height of discharging(mm

750

torage weight(Kg)S

35000

Tare weight(Kg)

2900

Diameter(mm)

2400

 Distance of foot spacing(lateral)

2.1m×2.1m

Drive motor power(KW)

5.5

Water pump power(W)



750

Vibration pump power(W)



370
