| Outer Dimension: | 9700×2490×2760 | Wheelbase(mm) Front/Rear Tread (mm): | 5600 1880/1800 |
|---|---|---|---|
| Front/Rear Overhang (mm): | 1460/2670 | Tare Weight(kg): | 8805 |
| Payload(kg): | 3000 | Total Mass(kg): | 12000 |
| Chassis Model: | DFL5120XXYB1 | Number Of Axle: | 2 |
| Highlight: | chemical tank truck,liquid transport truck |
||

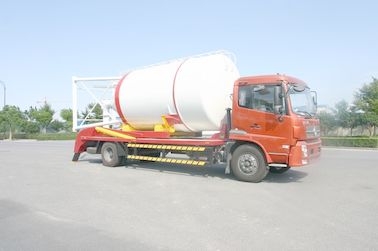

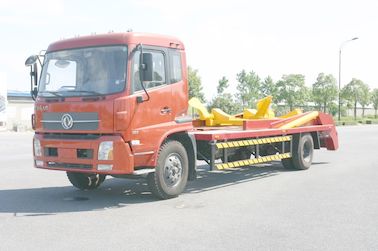

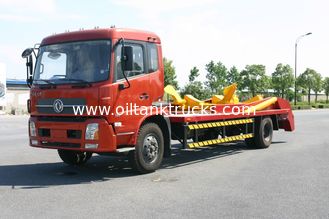

Dong Feng 4x2 Dry Bulk Truck Transport Bulk Cement Powder Truck 1800 - 2500mm
Quick Details:
Storage: dry powder
Drive Wheel:4x2
Transmission Type: Manual
Fuel Type: Diesel
Load capacity:22cbm

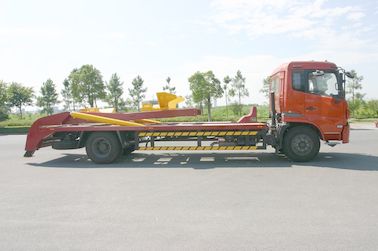

Fully hydraulic lifting and loading system, can be completed whole operation by few labour.
The set of hydraulic lifting system was a developed product, pantented technical cooperate with Germany “GERGEN”.
Main arms in gooseneck design(patented) ensure pick-up and deposit out of angle position up to 45°. Pneumatic proportional control for main cylinder. Loading platform in front with integrated hose guiding and protection. Hydraulic van locking for safe and rapid operation. Rear loading platform, short overhang. can greatly achieve and complete the loading/unloading selfly, educe cost, avoid time-wasting, and save more labour.
Basic Specs:
1. Tank Diameter: 1800-2500mm
2. Discharge redisdual ratio: ≤1.5m³
3. Turnovers: 0~95(°)
4. Tank Loading Mass: ≤4200kg
5. Lift Height: 5500~6000mm
Specifications:
|
The whole Vehicle |
Dimension |
Outer dimension |
9700×2490×2760 |
Gearbox |
Mode |
DF6S750 |
||||||
|
Type |
manipulation |
|||||||||||
|
Wheelbase(mm) Front/Rear Tread (mm) |
5600 1880/1800 |
Manufacturer |
Dong Feng Automobile Co.Ltd. |
|||||||||
|
Operation |
Soft axle manipulation |
|||||||||||
|
Front/Rear overhang (mm) |
1460/2670 |
Forward stalls |
six |
|||||||||
|
Approach/Departure (°)angle |
20/9 |
Speed Ratio |
6.44/3.841/2.29/1.477/1 /0.802/5.802 |
|||||||||
|
Quality |
Tare weight(kg) |
8805 |
Engine |
Type and model |
Electronic pressurized water-cooled cylinder diesel engine |
|||||||
|
Payload(kg) |
3000 |
|||||||||||
|
Total mass(kg) |
12000 |
Model |
ISDe185 30 |
|||||||||
|
Special parameter |
Mortar tank weight(Kg) |
≤3000Kg |
Manufacturer |
Dongfeng Cummins Engine Co.Ltd. |
||||||||
|
Residual rate(m3)
|
≤1.5 |
Displacement(mL) |
4.5 |
|||||||||
|
Turn round angle(°) |
0-92 |
Fuel type |
Diesel |
|||||||||
|
chassis |
Model |
DFL5120XXYB1 |
Emission standard |
National III |
||||||||
|
Type |
Second |
|||||||||||
|
Manufacturer |
Dong Feng Automobile Co.Ltd. |
Max.speed(km/h) |
90 |
|||||||||
|
No of axle |
2 |
|||||||||||
|
STORAGE TANK FOR DRY-MIXED MORTAR |
||||||||||||
|
Type of tank |
CG storage-35t |
|||||||||||
|
Nominal storage volume(m3) |
22 m3 |
|||||||||||
|
Discharge valve diameter(mm) |
250 |
|||||||||||
|
)Height of discharging(mm |
750 |
torage weight(Kg)S |
35000 |
|||||||||
|
Tare weight(Kg) |
2900 |
Diameter(mm) |
2400 |
|||||||||
|
Distance of foot spacing(lateral) |
2.1m×2.1m |
|||||||||||
|
Drive motor power(KW) |
5.5 |
|||||||||||
|
Water pump power(W)
|
750 |
Vibration pump power(W)
|
370 |
|||||||||
