Product Details:
Payment & Shipping Terms:
|
| Model: | HZZ5255GJY | Chassis Model: | DFL1250A9 |
|---|---|---|---|
| Outer Dimension(mm): | 10965×2490×3300 | Tank Effective Volume (m3): | 18.5 |
| Transporting Medium: | Gas/Diesel | Wheelbase (mm): | 5350+1300 5700+1300 |
| Total Mass(Kg): | 25000 | Tare Weight(Kg): | 12400 |
| Payload(Kg): | 12470 12405 | Vehicle Emission Standard: | National III |
| Spec. Of Tyre: | 10.00-20 10.00R20 11.00-20 11.00R20 | Max. Speed(km/h): | 90 |
| High Light: | oil tanker trailer,fuel tanker trailers,Oil Tanker Truck 18500L |
||

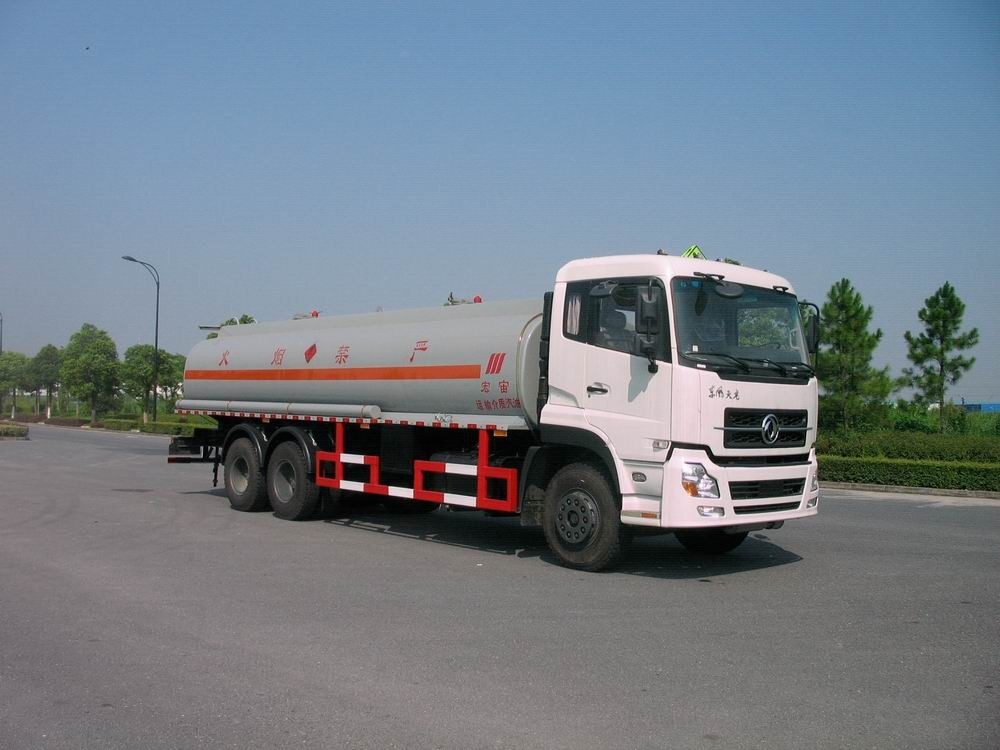

18500L (4,887 US Gallon) Dongfeng 6x4 245HP Carbon Steel Fuel Tank Truck Delivery for Petroleum/ Diesel
Quick Details:
1. Name: fuel delivery truck
2. Drive Wheel:6x4
3. Fuel Type: Diesel
4. Capacity: 18500L
5. Chassis: DFL1250A9
6. Dimensions (L x W x H) (mm): 10965×2490×3300
7. Engine Power: 245HP
8. Tank Material: Carbon Steel
BASIC SPECIFICATIONS:
Storage Properties
Gasoline, light diesel, kerosene, non-corrosive fluid etc.
Functions
As a transportation product, it register full of functions such as: oil transportation, refueling
tender, fixed-container refueling, and portable pump.
Be popular in
The oil fuel series classified as general refueling vehicles (with oil pump system) and fiscal tank vehicles, widely used in oil station and transportation companies.
Advantages
This product has reasonable structure, reliable performance, beautiful appearance, and simple operation etc. merit.
Applications:
We use second-class Chinese and international chassis to refit, such as Faw Group, Dongfeng, Sino Truck, UD Nissan, Auman, Isuzu etc. Widely use in various transportation units, chemical companies and other logistic industries.The fuel tank transportation series, as to the whole tank truck, usage for transport the gasoline, light diesel oil, petroleum and other non-corresive fuel properties, rarely impact the damage for oil pump, generator, refullering gun,etc.
The fuel tank transportation series, as to the whole tank truck, usage for transport the gasoline, light diesel oil, petroleum and other non-corresive fuel properties, rarely impact the damage for oil pump, generator, refullering gun,etc. We use second-class Chinese and international chassis to refit, such as Faw Group, Dongfeng, Sino Truck, UD Nissan, Auman, Isuzu etc. Widely use in various transportation units, chemical companies and other logistic industries.
Form Specifications:
General Specifications:
|
Type |
Chassis |
Outer dimension (mm) LxWxH |
Kerb weight/ Payload (kg) |
Model of engine (kw) |
Tank volume ( m3) |
|
HZZ5162GJY |
CA1163P7- K2L2E |
7805×2490×3150 |
7805/8000 |
CA6DE3-18E3/ 136 |
12 |
|
HZZ5163GJY |
EQ1168KJ2 |
8650×2480×3000 |
7405/8400 |
ISBe185 30 ISDe185 30 ISDe185 30 ISDe210 30 |
12.6 |
|
HZZ5252GJY |
CA5253GJYP7- K2L11T3E |
11000×2490×3100 |
9805/15000 |
CA6DE3-22E3 CA6DE3 -18E3 |
22 |
|
HZZ5253GJY |
CA1253P7- K2L7T1E |
10340×2490×3100 |
10805/14000 |
CA6DE3-22E3 CA6DE3 -22F3 |
22 |
|
HZZ5254GJY |
ZJZ1250D- PG7AD3 |
10560×2495×3200 |
10805/14000 |
CA6DF3-22E3SC8DK240Q3 |
21 |
|
HZZ5252GJY |
DFL1250A9 |
10965×2490×3300 |
12400/12470
|
ISDe230 30 ISDe245 30 ISDe270 30 |
18.5 |
|
HZZ5312GJY |
ZJZ1250D- PG7AD3 |
11980× |
14305/16500 |
BF6M1013-26E3 BF6M1013-28E3 |
24.5 |
Unit Specifications:
|
Model |
HZZ5255GJY |
|
Chassis Model |
DFL1250A9 |
|
Chassis Manufacturer |
DONGFENG |
|
Outer dimension(mm) |
10965×2490×3300 |
|
Tank Effective Volume (m3) |
18.5 |
|
Transporting Medium |
Gas/Diesel |
|
Wheelbase (mm) |
5350+1300 |
|
Total mass(Kg) |
25000 |
|
Tare weight(Kg) |
12400 |
|
Payload(Kg) |
12470 |
|
Engine model/Engine power(kw) |
ISDe230 30/169 ISDe245 30/180 ISDe270 30/198 |
|
Fuel type |
Diesel |
|
Vehicle emission standard |
National III |
|
Spec. of Tyre |
10.00-20 |
|
Max. Speed(km/h) |
90 |
Competitive Advantage:
- High-power, Lighten weight, Nice performance, widely used in oil station and some logistic companies.
-We use OEM fittings, makes the tanker solid and durable, and reduce the cost to operate and maintain.
-The liquid tanker is produced with the special equipments such as automatic welding machine(8m) and CNC plasma cutting and automatic submerged arc welding forming which can realize welding by one side in shape by two sides, having the merits of stable quality, less cost, and good-looking.
-Mobile refuelling suit for such remote area, also convient supply for those heavy duty construction equipments.
