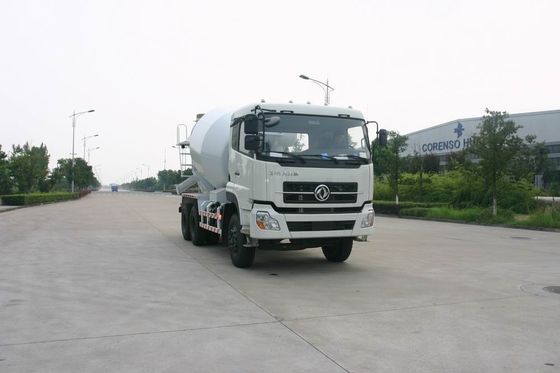

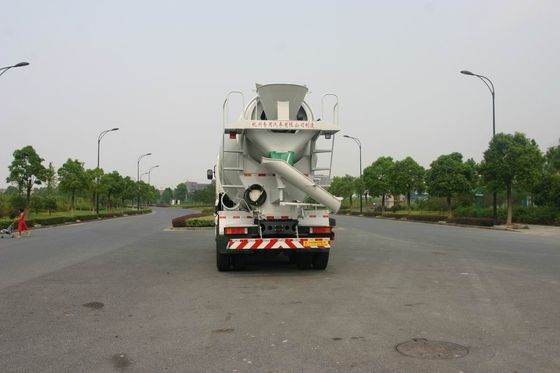

Dongfeng 6x4 Transit Concrete Mixer Truck dCi340-30 Common-Rail(340HP)

Dongfeng 6x4 Transit Concrete Mixer Truck dCi340-30 Common-Rail(340HP)
Dongfeng 6x4 Transit Concrete Mixer Truck dCi340-30 Common-Rail(340HP) Dongfeng 6x4 Transit Concrete Mixer Truck dCi340-30 Common-Rail(340HP) Dongfeng 6x4 Transit Concrete Mixer Truck dCi340-30 Common-Rail(340HP)

Large Image :  Dongfeng 6x4 Transit Concrete Mixer Truck dCi340-30 Common-Rail(340HP)

Product Details:
Place of Origin: Zhejiang.Hangzhou
Brand Name: China Jinggong
Certification: ISO9001, CCC
Model Number: HZZ5250GJBDF
Payment & Shipping Terms:
Minimum Order Quantity: No limited
Price: negotiation
Packaging Details: Naked
Delivery Time: 45days
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 10Units/Months
Port of Delivery:: Shanghai/Ningbo
Detailed Product Description
Model: HZZ5250GJBDF Chasis Model: DFL5251GJBA1
Overall Dimension (mm): 9050×2500×3900 Kerb Weight/ Rated Payload (Kg): Approx.13000 /11000
Engine Model/ Power(kw): DCi340-30 Common-Rail (340HP) Pump: A4VTG90German Rexroth
Motor: AA2FM80German Rexroth Decelerator: PMP PMB6SP/7SP Italy
Geometric Volume: 14.6/15.1/16.2(m3)
High Light:

truck mounted concrete pump

,

concrete mixing trucks

Dongfeng 6x4 Transit Concrete Mixer Truck dCi340-30 Common-Rail(340HP)



Specifications

1.Concrete Mixer Truck
2. 8-10cbm
3.6*4
4.all kinds of Chassis



Concrete Mixer Truck has different capacity from 8-10m³ and 12m³. As to the whole truck, we use second-class Chinese and international chassis to refit, such as Faw Group, Dongfeng, Sino Truck, UD Nissan, Auman, Isuzu etc.
Chassis has such merits: High-power, Lighten weight, Nice performance.
The tank body is designed by means of three-dimensional aid design method with the characteristics of reasonable structure, large effective capacity.


We use OEM fittings, makes the tanker solid and durable, and reduce the cost to operate and maintain.
Other key parts of this transit concrete mixer include hydraulic system and mixing system. Hydraulic system can be equipped with oil pump and motor from either German Rexroth or Italy ARK, thus offering reliable performance. The decelerator acquired from Italy PMP or Italy TOPUNION offers a high reduction ration of 100-130. The mixer is able to offer a minimum charging speed of 3m³/min, and a minimum discharging speed of 2m³/min. This ensures high mixing efficiency.



Components:


 Drum use two cove floating type spiral blades, the discharging spiral angle rotates 75°, and reducing to 60° upto the pyramis at bottom of drum. This unique design greatly reducing the residual discharging ratio, almost zero. Inclination is between 12-15°, improving the high mixing efficiency. Also reduce the concrete impact which offers more resistance to extend the service life. The scraper plate which fitted at rear of the spiral blade ensure an assistance movement for better mixing.
2. 350L large capacity water tank, compressed air form, high pressure and strong impulse to meet almost cleaning conditions.




Specifications:



                                                   Technical parameter of concrete mixer truck

Model

Chasis Model

Manufacure

Overall Dimension

(mm)

Kerb Weight/

Rated Payload

(Kg)

Engine Model/

Power(kw)

HZZ5250GJBDF

DFL5251GJBA1

Dongfeng (6*4)

9050×2500×3900

Approx.13000

/11000

dCi340-30

Common-Rail

 (340HP)

Wheelbase

3800+1350mm

Tyre

11.00-20

The specifications of Concrete Mixer

Mixing volume

8/9/10(m3)

mixer

parameter

Geometric volume

14.6/15.1/16.2(m3)

hydraulic

 system

Pump

Model

A4VTG90German Rexroth

Padding rate

63(%)

Max. DISP

42MPa/90ml/rev

Charging speed

≥3(m3/ min)

Model

ARK PV89MH20 Italy

Discharging speed

≥2(m3/ min)

Motor

Model

AA2FM80German Rexroth

Residual rate

<1(%)

Max. DISP

42MPa/80ml/rev

Speed of agitator

0~12(r/min)

Model

ARK MF89V20 Italy

Gradient

13~15(°)

Decelerator

 Model

PMP  PMB6SP/7SP Italy

Concrete Slumping

70~260mm

Ratio

Reduction ratio I:99.9(121.6)



Drum Matainer

high strength wearable

 steel B520JJ

 Model

TOPUNION  P68/58 Italy

Spiry blade material

high strength wearable

 steel B520JJ

Ratio

reduction ratio I:100

water supply

 system

Water Supply

compressed air

Cooler

Model/

Tank volume

German AKG or

China/ 25L

Water tank (L)



350
