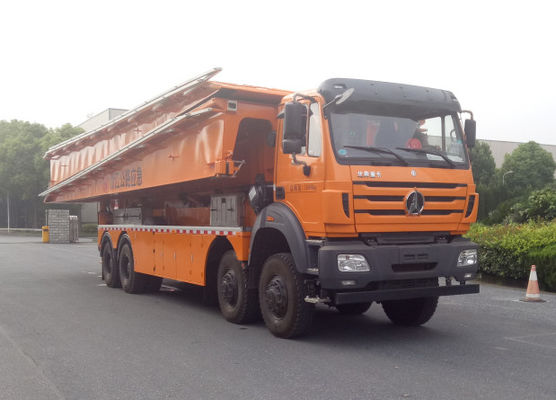

25m Emergency Bridge Laying Truck Easy Cross Rivers When No Bridge

25m Emergency Bridge Laying Truck Easy Cross Rivers When No Bridge
25m Emergency Bridge Laying Truck Easy Cross Rivers When No Bridge 25m Emergency Bridge Laying Truck Easy Cross Rivers When No Bridge 25m Emergency Bridge Laying Truck Easy Cross Rivers When No Bridge

Large Image :  25m Emergency Bridge Laying Truck Easy Cross Rivers When No Bridge

Product Details:
Place of Origin: China
Brand Name: Hongzhou
Certification: ccc
Model Number: HZZ5310TJQ
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: 700,000.00-800,000.00USD
Packaging Details: NUDE
Delivery Time: 3MONTH
Payment Terms: L/C, T/T
Supply Ability: 10UNIT PER YEAR
Detailed Product Description
Material: Steel Color: Yellow Or Orange
Chassis: BEIBEN Trucks Length: 25m
High Light:

25m Emergency Bridge Laying Truck

,

90Km/h Emergency Bridge Laying Truck

,

HZZ5310TJQ



HZZ5310TJQ emergency bridge-laying truck is mainly used to guarantee road collapse, bridge rupture and other problems caused by man-made or natural disasters and other factors, quickly cross the river, valley, collapse and other obstacles within 20 meters, and quickly create an emergency rescue channel.

This equipment can be used in plateau (to install supercharged engines and adjust a few oil varieties), mountain, plain and water-grid rice field areas.

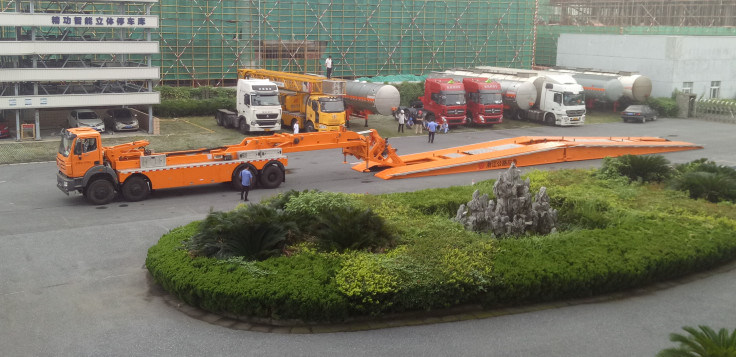

HZZ5310TJQ emergency bridge-laying truck is mainly composed of laying bridge, chassis and auxiliary equipment. In the state of transportation, the laying bridges are overlapped and fixed on a truck chassis; When in use, the bridge-laying truck shall complete the erection and withdrawal of the laying bridge. Each set of equipment is equipped with a set of auxiliary equipment, which is used to assist the completion of the work, fix the bridge on the truck chassis and fix the bridge after erection



25m Emergency Bridge Laying Truck Easy Cross Rivers When No Bridge 0





Total Weight 36200Kg

Oversize

Working status

 Length 13600mm
 Width 3300mm
 Height 3580mm
 Width when no bridge 2500mm



Load of the bridge

 Crawler type 55000Kg
 Wheel Truck type 14000Kg

Max. Of Crawler type ( Pass by with more attention)

60000Kg
 Laying bridge weight 12860Kg
 Laying bridge length 25000mm
 Max. Cross barrier or river width 23000mm
Bridge section length 12500mm
Bridge Deck width 3300mm
Vehicle track width 1200mm
Bridge section height 980mm
 Bridge section small mitered end height 350mm
 Min. Erection time 7.5min
 Min. Withdraw time 8min
 Max. Vertical slope when bridge-laying ±10%
 Max. Horizontal slope when bridge-laying ±5%
Maximum distortion when bridge-laying 4%
Allow difference of the bank ±2000mm
 Operator 2
Max. Speed 90Km/h
 Approach/departure angle 32°/26.4°
-40℃~48℃ Operation environment temperature


25m Emergency Bridge Laying Truck Easy Cross Rivers When No Bridge 1
