Euro 6 Bridge Snooper,
Fm450 Bridge Snooper,
Volvo Chassis Bridge Snooper

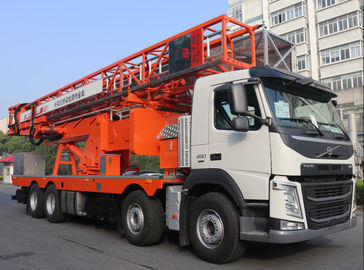

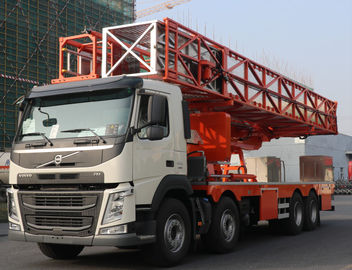

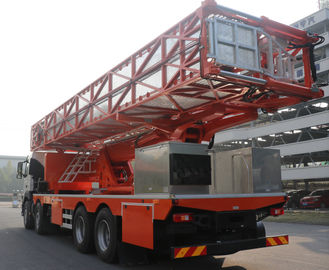

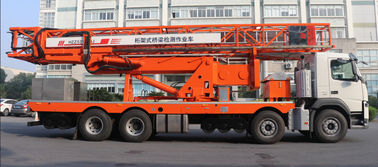

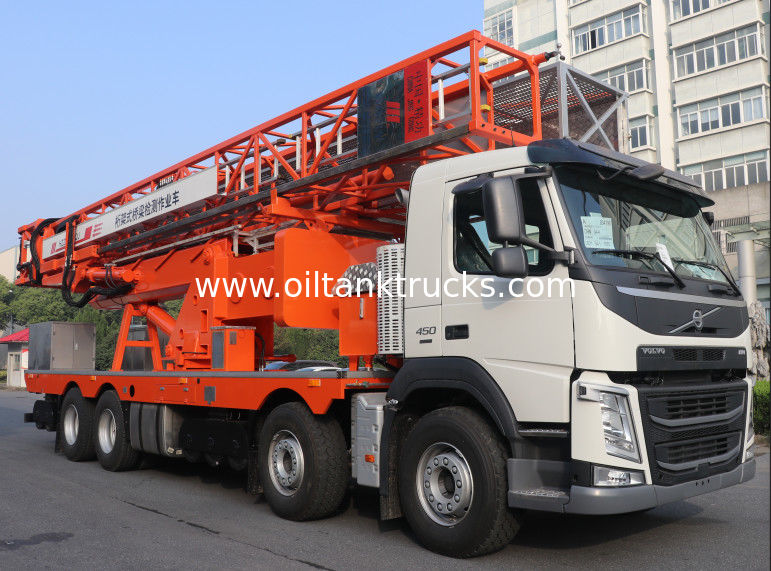

nder Bridge Inspection Vehicle by Remote Control Euro 6 Volvo chassis
With increasing numbers of bridges in the world, safety of bridges becomes a top priority. This needs periodic inspection on all parts of the bridge, which are not easily accessible. These inspections are primarily visual and require hands-on observations in order to check for loose and broken hardware, corrosion, insect damage, and a multitude of other maintenance and safety issues.
Bridge Inspection Truck for bridge detection, as its name suggests, is designed to help detect the performance and reliability of a bridge. Reasonable structure, simple operation, more safety design.
The new platform design has imporve much reliability and stability. Much safety for sending the operator into any location of the bridges. The new developed product with it’s own exported chassis and some OEM components, such as US POCLAIN amble motor, US KOHLAR emergency power supply, Germany “HAWE” Mutiple Valve, Italy “WOLFF” valve etc. greatly increase the service life, easy maintenance. Three hydraulic section with broader extension, rotary platform, luffing machanism together created a three-dimensional folding, much more suit for those flyovers, long-span, approach heavy duty bridges.
|Platform Type Bridge Inspection Vehicle
|VOLVO FM450 8×4 Euro IV
|Electro hydraulic proportional servo system
|Static mechanical transmission
|Total length of the operation platform
|Effective horizontal range
|Max. overbridging of sidewalk
|Max. crossing of sound barrier
|Max. load on platform
|Max. load on telescopic platform
|Max load mass for tail end of operation platform
|Max. lowering depth
|Total length of boom section
|The 1st rotary table rotates angle
|The 2nd rotary table rotates angle
Activity counter weight 3.5T,
Dead counter weight 5T
|Stroke of activity counter weight
|Extra stabilizer for rear axle
|Remote Control System
|Emergency Power Supply
|US Kohler Generator
Imported VOLVO Chassis, with 450HP large engine power, Euro VI. Has more merits as: low oil consumption, environmental design, ensure high stability.
1. Air suspension system can adjust the chasis height automaticly, highly increase the stability for such a pot hole ground.
2. Hydrostatic drive, highly achieved secure in slope and wet road conditions.
3. Those hydraulic steering wheel system, greatly balance the widthness while operating.
4. Two sets of control system on platform either into the control box respectively, allows the operator monitor safety.
5. The hydraulic synchronous interlock device, intercom system, safty lock valve to ensure the safty handing.
6. US Kohler emergency power supply, able to achieve the folding reset, in case the engine doesn' attent well.
7. Max. platform payload is 600kg (can affordable 3-5 operators), the tail of the platform payload is about 250kg.
The extendable folding platform can be adjustable luffing from 2-4meter, greatly imporve the inspection area under the bridge.
8. High strength steel platform frame provide more stability which able to rotate 180°under the bridge, and also keep the limitation of max. drop height for 7meter only.
